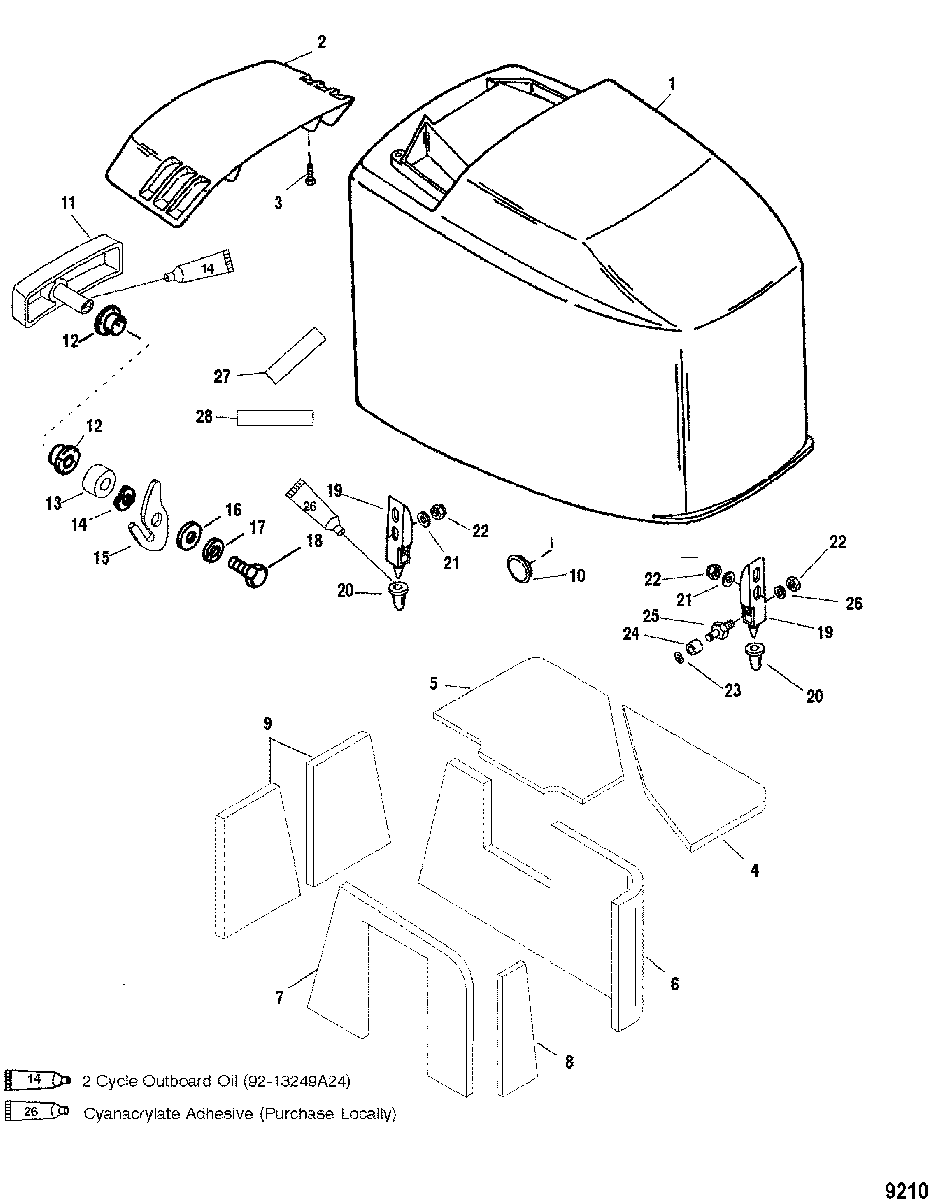

Top Cowl для Mercury - V-150 DFI (2.5L) 0G760300 THRU 0G960499
-
№АртикулНазвание
-
14021-852552T3 TOP COWL ASSEMBLY
(BLACK)TOP COWL ASSEMBLY
(BLACK) -
14021-852552T4 TOP COWL ASSEMBLY
(SILVER)TOP COWL ASSEMBLY
(SILVER) -
2821256T03 INLET, Air - Black
(BLACK)INLET, Air - Black
(BLACK) -
2821256T2 INLET, Air
(SILVER)INLET, Air
(SILVER) -
310-82130016 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
4854607A1 SOUND BLANKET KITSOUND BLANKET KIT
-
5NSS NOT SOLD SEPARATE, Sound Blanket-Top BackNOT SOLD SEPARATE, Sound Blanket-Top Back
-
6NSS NOT SOLD SEPARATE, Sound Blanket-PortNOT SOLD SEPARATE, Sound Blanket-Port
-
7NSS NOT SOLD SEPARATE, Sound Blanket-StarboardNOT SOLD SEPARATE, Sound Blanket-Starboard
-
8NSS NOT SOLD SEPARATE, Sound Blanket-FrontNOT SOLD SEPARATE, Sound Blanket-Front
-
9NSS NOT SOLD SEPARATE, Sound Blanket-BackNOT SOLD SEPARATE, Sound Blanket-Back
-
1019-823865 CAP PLUGCAP PLUG
-
11831207A16 HANDLE ASSEMBLY, Black
(BLACK)HANDLE ASSEMBLY, Black
(BLACK) -
11831207A16 HANDLE
(SILVER)HANDLE
(SILVER) -
1223-812707 BUSHINGBUSHING
-
1323-831214 SPACERSPACER
-
1413-12134 WASHER, WaveWASHER, Wave
-
158M0001081 CAM, Latch ShaftCAM, Latch Shaft
-
1612-4002316 WASHERWASHER
-
1713-26992 LOCKWASHER, (.250) Stainless SteelLOCKWASHER, (.250) Stainless Steel
-
1810-28635 SCREW, (.250-20 x .620) Stainless SteelSCREW, (.250-20 x .620) Stainless Steel
-
198M0036792 BRACKET, FrontBRACKET, Front
-
20815477 BUMPER, LatchBUMPER, Latch
-
2112-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
2211-401366 NUT, (M6)NUT, (M6)
-
2353-8237951 RING, RetainingRING, Retaining
-
24815263 ROLLERROLLER
-
258155381 PIN, RollPIN, Roll
-
2612-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
27NSS NOT SOLD SEPARATE, Decal-Counter RotationNOT SOLD SEPARATE, Decal-Counter Rotation
-
28NSS NOT SOLD SEPARATE, Decal-Break InNOT SOLD SEPARATE, Decal-Break In
