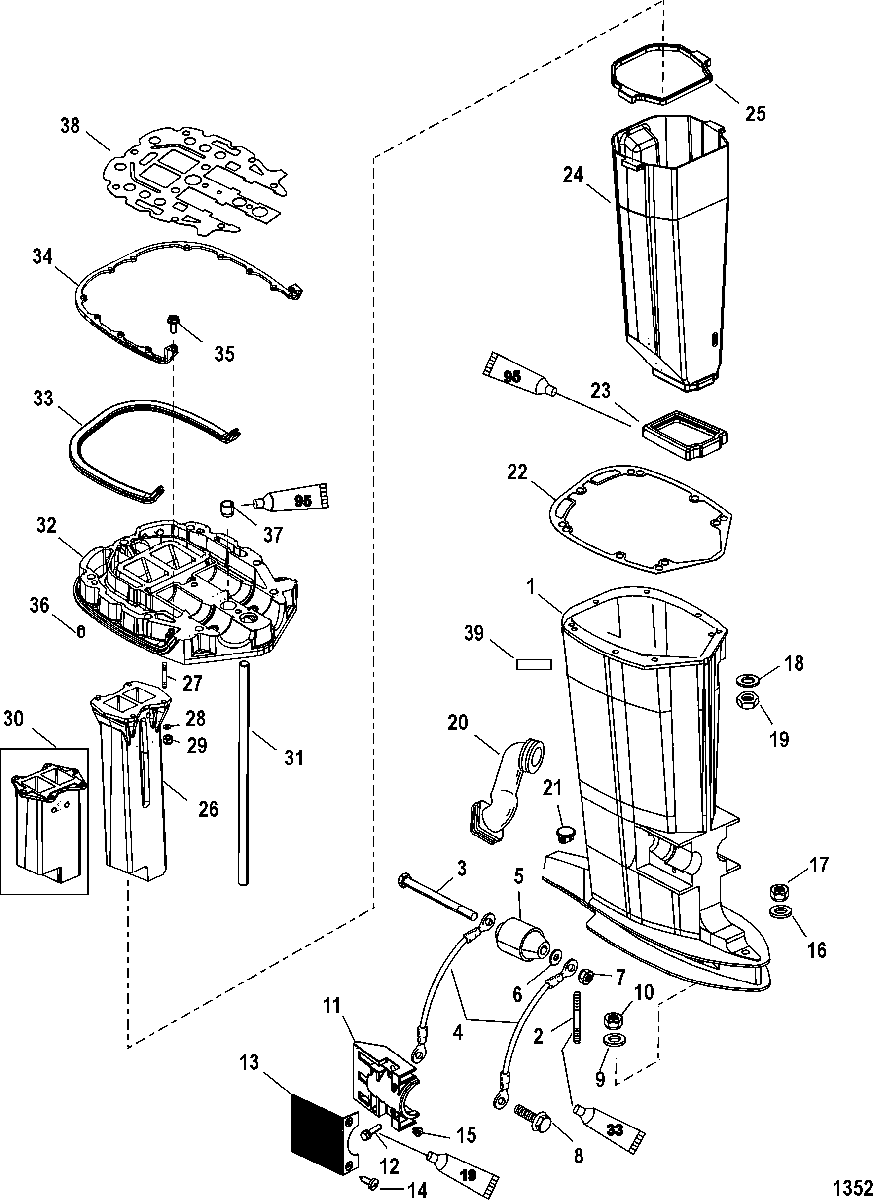

Driveshaft Housing and Exhaust Tube для Mercury - V-150 DFI (2.5L) 1B227000 THRU 1B417701
-
№АртикулНазвание
-
11590-8343T10 HOUSING ASSEMBLY, Driveshaft - Black - Long
(Long)HOUSING ASSEMBLY, Driveshaft - Black - Long
(Long) -
13503-813563T1 HOUSING, Driveshaft - Black - X-Long
(X-Long)HOUSING, Driveshaft - Black - X-Long
(X-Long) -
216-56295 STUD, (.437 x 2.69)STUD, (.437 x 2.69)
-
310-898831 SCREW, (.500-20 x 6.00)SCREW, (.500-20 x 6.00)
-
488238A10 CABLE ASSEMBLY, GroundCABLE ASSEMBLY, Ground
-
577327 MOUNT, LowerMOUNT, Lower
-
612-49339 WASHER, (.8125)WASHER, (.8125)
-
711-898832 NUT, (.500-20)NUT, (.500-20)
-
810-41508 SCREW, (.250-20 x .500) Stainless SteelSCREW, (.250-20 x .500) Stainless Steel
-
912-45176 WASHER, (.453 x .812 x .105) Stainless SteelWASHER, (.453 x .812 x .105) Stainless Steel
-
1011-34933 NUT, (.437-20) Stainless SteelNUT, (.437-20) Stainless Steel
-
1154-8M0036782 CLAMPCLAMP
-
1210-66727 SCREW, (.312-18 x 1.250)SCREW, (.312-18 x 1.250)
-
13100-8M4500752 COVER, BlackCOVER, Black
-
1410-88417 SCREW, (#12-24 x .620)SCREW, (#12-24 x .620)
-
1511-35521 NUTNUT
-
1612-48926 WASHERWASHER
-
1711-34933 NUT, (.437-20) Stainless SteelNUT, (.437-20) Stainless Steel
-
1812-20553 WASHER, (.406 x .734 x .063)WASHER, (.406 x .734 x .063)
-
1911-69254 NUTNUT
-
208M0039081 BOOT, Idle ExhaustBOOT, Idle Exhaust
-
2119-64649 PLUGPLUG
-
2227-991734 GASKETGASKET
-
2366350001 SEAL (Lower)SEAL (Lower)
-
2418276T TUBE, ExhaustTUBE, Exhaust
-
258M0039076 SEAL (Upper)SEAL (Upper)
-
26812834A2 EXTENSION ASSEMBLY, Exhaust
(150)EXTENSION ASSEMBLY, Exhaust
(150) -
26812834A2 EXTENSION ASSEMBLY, Exhaust
(175)EXTENSION ASSEMBLY, Exhaust
(175) -
2716-56766 STUD, (.250 x 1.38)STUD, (.250 x 1.38)
-
2812-35044 WASHER, (.281 x .625 x .065) Stainless SteelWASHER, (.281 x .625 x .065) Stainless Steel
-
2911-888500 NUTNUT
-
30879288T71 EXTENSION, Exhaust
(135)EXTENSION, Exhaust
(135) -
3132-8M0042788 TUBE, Water
(Long)TUBE, Water
(Long) -
3132-8M0042790 TUBE, Water
(X-Long)TUBE, Water
(X-Long) -
3218233A20 PLATE ASSEMBLY, Driveshaft HousingPLATE ASSEMBLY, Driveshaft Housing
-
338M0043165 SEALSEAL
-
3468011 BRACKETBRACKET
-
3510-878608 SCREW, (#10-16 x .500)SCREW, (#10-16 x .500)
-
3617-43044 PIN, Dowel - Without Hole (.375 x .625)PIN, Dowel - Without Hole (.375 x .625)
-
3726-38970 SEALSEAL
-
3827-183076 GASKETGASKET
-
39NSS NOT SOLD SEPARATE, Decal-Counter RotationNOT SOLD SEPARATE, Decal-Counter Rotation
-
-27-8M0046714 GASKET SET, EngineGASKET SET, Engine
