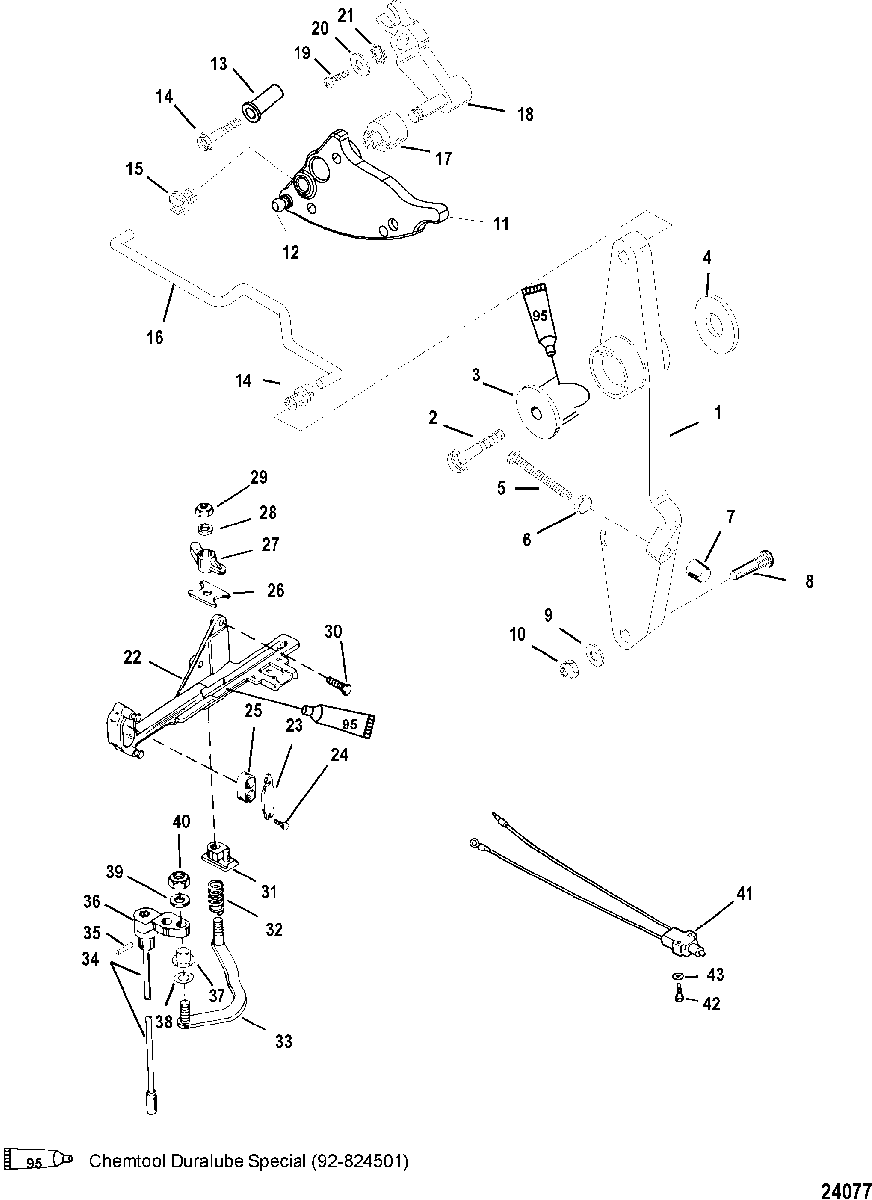

THROTTLE LEVER AND SHIFT SHAFT для Mercury - V-150 EFI (2.5L) 0T409000 THRU 0T800999
-
№АртикулНазвание
-
18M0040990 LEVERLEVER
-
210-818165 SCREW, (.375-16 x 1.75)SCREW, (.375-16 x 1.75)
-
323-55164 BUSHINGBUSHING
-
423-858959 SPACERSPACER
-
510-64022 SCREW, (.250-20 x 2.125)SCREW, (.250-20 x 2.125)
-
611-64015 NUT, (.250-20)NUT, (.250-20)
-
726852 CAP, NylonCAP, Nylon
-
842927 INSERTINSERT
-
912-35459 WASHERWASHER
-
1011-401386 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
11858847A2 CAMCAM
-
128235694 BALL, ThreadedBALL, Threaded
-
1323-856895 BUSHINGBUSHING
-
1410-81893440 SCREW, (M8 x 40)SCREW, (M8 x 40)
-
1523-932481 BUSHINGBUSHING
-
168508152 RODROD
-
1767748 ROLLERROLLER
-
18850286A03 LEVERLEVER
-
1910-40056107 SCREW, (M5 x 16)SCREW, (M5 x 16)
-
2012-89302 WASHER, (.203 x .406 x .040)WASHER, (.203 x .406 x .040)
-
2113-69432 LOCKWASHER, External (#10)LOCKWASHER, External (#10)
-
22814283T6 BRACKET ASSEMBLY, AnchorBRACKET ASSEMBLY, Anchor
-
2398889 LATCHLATCH
-
2410-42975 DRIVE SCREWDRIVE SCREW
-
2539519 CUPCUP
-
2652100 WEAR PLATEWEAR PLATE
-
278M0036768 LATCHLATCH
-
2812-35462 WASHER, (.2656 x .625 x .0625) Stainless SteelWASHER, (.2656 x .625 x .0625) Stainless Steel
-
2911-826709109 NUT, (.250-28) Stainless SteelNUT, (.250-28) Stainless Steel
-
3010-28782 SCREW, (.312-18 x .880) Stainless SteelSCREW, (.312-18 x .880) Stainless Steel
-
31814284 GUIDE BLOCKGUIDE BLOCK
-
3224-20099 SPRINGSPRING
-
3367073A1 LINK ROD ASSEMBLYLINK ROD ASSEMBLY
-
3479932A16 SHIFT SHAFT ASSEMBLY
(LONG)SHIFT SHAFT ASSEMBLY
(LONG) -
3479932A17 SHIFT SHAFT ASSEMBLY
(X-LONG)SHIFT SHAFT ASSEMBLY
(X-LONG) -
35NSS NOT SOLD SEPARATE, Roll PinNOT SOLD SEPARATE, Roll Pin
-
36NSS NOT SOLD SEPARATE, Shift Shaft Lever-UpperNOT SOLD SEPARATE, Shift Shaft Lever-Upper
-
3723-26856 BUSHINGBUSHING
-
3813-29720 WAVE WASHERWAVE WASHER
-
3912-35462 WASHER, (.2656 x .625 x .0625) Stainless SteelWASHER, (.2656 x .625 x .0625) Stainless Steel
-
4011-826709109 NUT, (.250-28) Stainless SteelNUT, (.250-28) Stainless Steel
-
4187-8M0052931 SWITCHSWITCH
-
4210-77478 SCREW, (#6-32 x .875)SCREW, (#6-32 x .875)
-
4312-27882 WASHERWASHER
