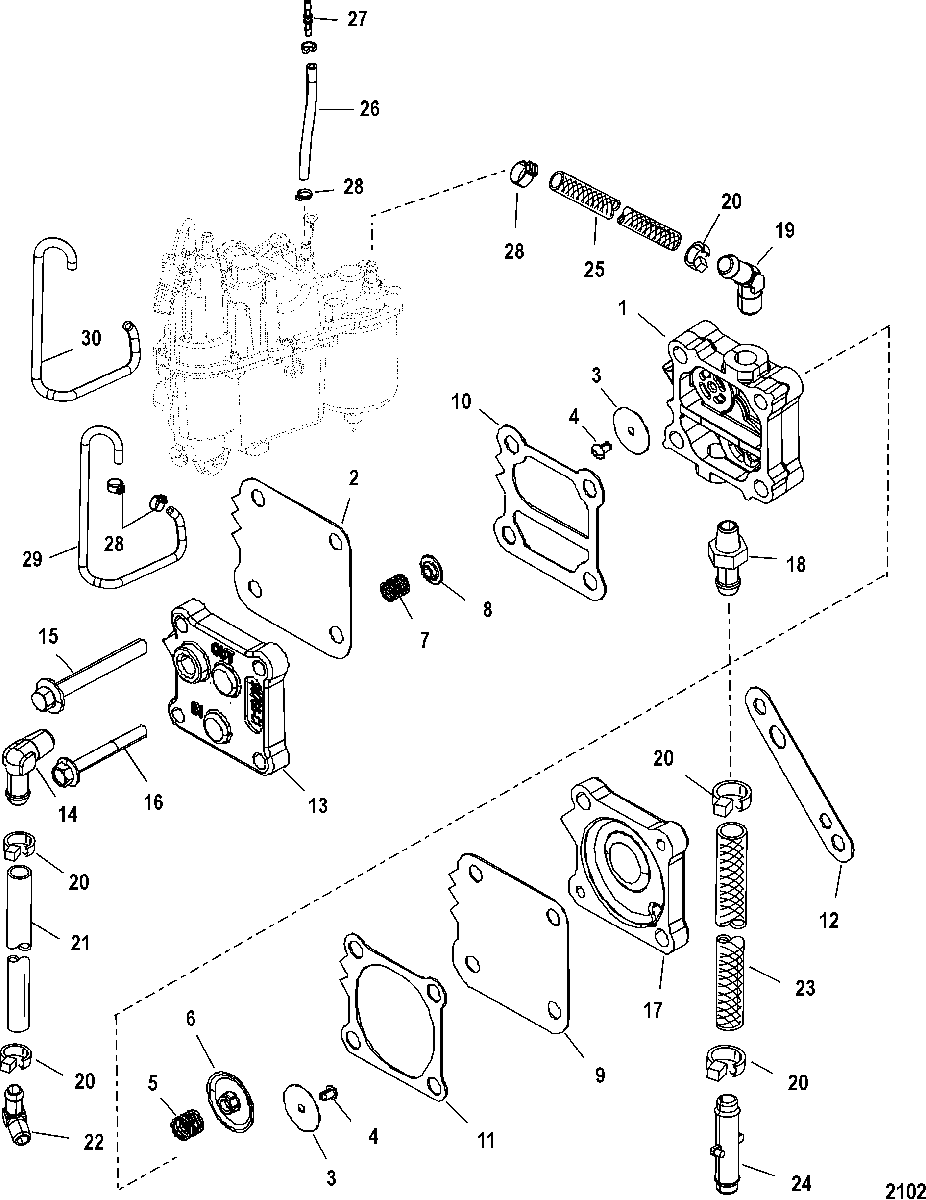

Fuel System для Mercury - V-150 EFI (2.5L) 0T801000 THRU 1B226999
-
№АртикулНазвание
-
-14360T75 PUMP ASSEMBLY, FuelPUMP ASSEMBLY, Fuel
-
1NSS NOT SOLD SEPARATE, Body-Fuel PumpNOT SOLD SEPARATE, Body-Fuel Pump
-
221-857005A1 DIAPHRAGM KITDIAPHRAGM KIT
-
3NSS NOT SOLD SEPARATE, Check ValveNOT SOLD SEPARATE, Check Valve
-
4NSS NOT SOLD SEPARATE, RetainerNOT SOLD SEPARATE, Retainer
-
5NSS NOT SOLD SEPARATE, SpringNOT SOLD SEPARATE, Spring
-
6NSS NOT SOLD SEPARATE, CapNOT SOLD SEPARATE, Cap
-
7NSS NOT SOLD SEPARATE, SpringNOT SOLD SEPARATE, Spring
-
8NSS NOT SOLD SEPARATE, CapNOT SOLD SEPARATE, Cap
-
9NSS NOT SOLD SEPARATE, DiaphragmNOT SOLD SEPARATE, Diaphragm
-
10NSS NOT SOLD SEPARATE, Gasket-BoostNOT SOLD SEPARATE, Gasket-Boost
-
11NSS NOT SOLD SEPARATE, Gasket-PulseNOT SOLD SEPARATE, Gasket-Pulse
-
1227-987691 GASKETGASKET
-
13987752 PLATEPLATE
-
1422-996642 FITTING, Elbow 90 Degree (.125-27 x .250) NylonFITTING, Elbow 90 Degree (.125-27 x .250) Nylon
-
1510-82104540 SCREW, (M5 x 40), Fuel PumpSCREW, (M5 x 40), Fuel Pump
-
1610-82130050 SCREW, (M6 x 50), Pump to CrankcaseSCREW, (M6 x 50), Pump to Crankcase
-
17144303 BASEBASE
-
1822-291112 FITTINGFITTING
-
1922-782792 FITTING, Elbow 45 Degree (1.25)FITTING, Elbow 45 Degree (1.25)
-
2054-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
2132-8M0108349 TUBING, (.312) (70.00 Inches Bulk) (Cut to 6 Inches)TUBING, (.312) (70.00 Inches Bulk) (Cut to 6 Inches)
-
2222-996642 FITTING, Elbow 90 Degree (.125-27 x .250) Nylon, To BlockFITTING, Elbow 90 Degree (.125-27 x .250) Nylon, To Block
-
2332-8M0043979 HOSE AND SLEEVE ASSEMBLY, (18.00 Inches)HOSE AND SLEEVE ASSEMBLY, (18.00 Inches)
-
2422-822769 CONNECTORCONNECTOR
-
2532-8M0064784 TUBINGTUBING
-
2632-8M0108355 HOSE, (57.00 Inches Bulk) (Cut to 7-1/2 Inches)HOSE, (57.00 Inches Bulk) (Cut to 7-1/2 Inches)
-
2722-858955 CONNECTOR, To Flywheel CoverCONNECTOR, To Flywheel Cover
-
2854-856880 CLAMP, Hose (15.3)CLAMP, Hose (15.3)
-
2932-883363 HOSEHOSE
-
3032-883352 CONDUITCONDUIT
-
-27-8M0046715 GASKET SETGASKET SET
-
-883511T04 POWERHEAD ASSEMBLY
(150) SN# 0T979999 & BelowPOWERHEAD ASSEMBLY
(150) SN# 0T979999 & Below -
-883511T04 POWERHEAD ASSEMBLY
(150) SN# 0T980000 & UpPOWERHEAD ASSEMBLY
(150) SN# 0T980000 & Up -
-883600T04 POWERHEAD ASSEMBLY
(200) SN# 0T979999 & BelowPOWERHEAD ASSEMBLY
(200) SN# 0T979999 & Below -
-883600T04 POWERHEAD ASSEMBLY
(200) SN# 0T980000 & UpPOWERHEAD ASSEMBLY
(200) SN# 0T980000 & Up
