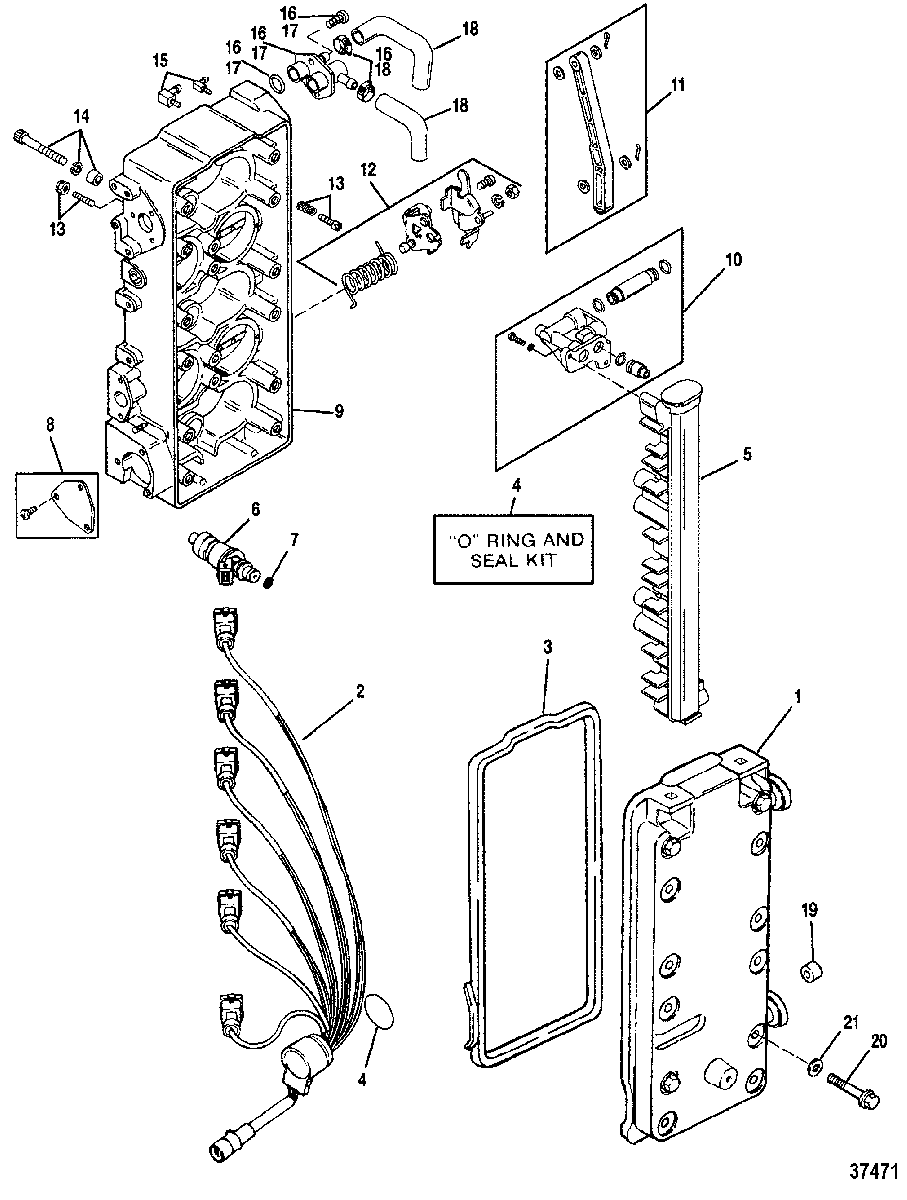

FUEL MANAGEMENT SYSTEM(HOUSING) для Mercury - V-150 (EFI) 0G303046 THRU 0G760299
-
№АртикулНазвание
-
-14817A31 MANAGEMENT ASSEMBLY, FuelMANAGEMENT ASSEMBLY, Fuel
-
18276922 COVERCOVER
-
284-15443 HARNESS KITHARNESS KIT
-
326-18792 SEALSEAL
-
415029 O-RING AND SEAL KITO-RING AND SEAL KIT
-
5827699T2 FUEL RAILFUEL RAIL
-
618715T INJECTOR, FuelINJECTOR, Fuel
-
735-17422 FILTERFILTER
-
8827696 RETAINER KITRETAINER KIT
-
98276933 THROTTLE BODYTHROTTLE BODY
-
108090572 JOINT KITJOINT KIT
-
118276891 LINK KITLINK KIT
-
12827697 LEVER KIT, LinkLEVER KIT, Link
-
1310-827698 SCREW KITSCREW KIT
-
1410-8276981 SCREW KITSCREW KIT
-
1522-8090851 ELBOW KIT
(SAME AS REF. #16 ON "FUEL MANAGEMENT SYSTEM (VAPOR SEPARATOR)")ELBOW KIT
(SAME AS REF. #16 ON "FUEL MANAGEMENT SYSTEM (VAPOR SEPARATOR)") -
16814233A02 SCHRADER VALVE KITSCHRADER VALVE KIT
-
178142332 FMA JOINT KITFMA JOINT KIT
-
1832-827694A01 HOSE KITHOSE KIT
-
1967748 ROLLERROLLER
-
2010-845674 SCREW, (.250-20 x 4)SCREW, (.250-20 x 4)
-
2112-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
