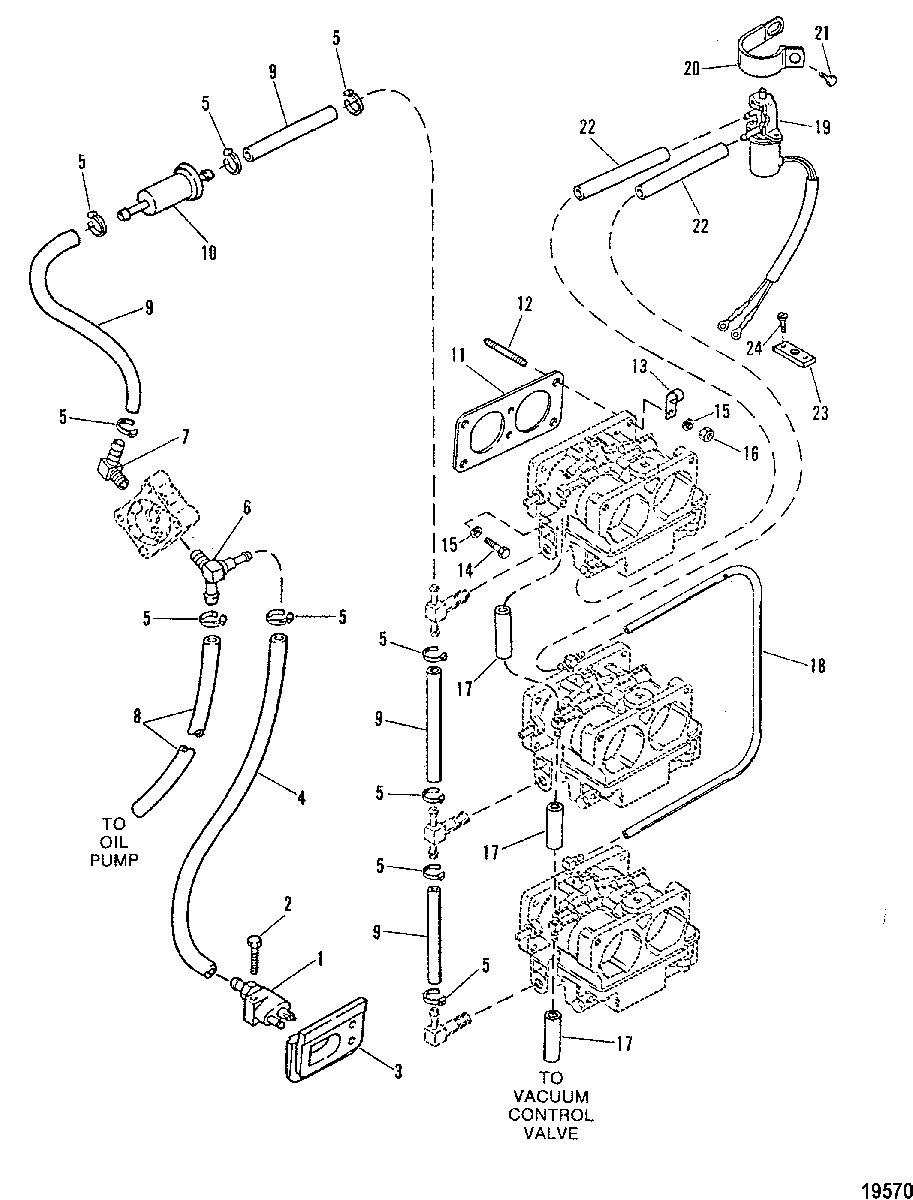

Fuel Lines для Mercury - V-150 0C239553 THRU 0D081999
-
№АртикулНазвание
-
122-816856Q3 FUEL CONNECTOR, PlasticFUEL CONNECTOR, Plastic
-
210-69067 SCREW, (.25-20 X 1.375), FUEL CONNECTORSCREW, (.25-20 X 1.375), FUEL CONNECTOR
-
3812782 SEALSEAL
-
432-8M0108349 TUBINGTUBING
-
554-816311T CABLE TIE, (8.00 Inches)CABLE TIE, (8.00 Inches)
-
622-814964 FITTINGFITTING
-
722-19688 FITTING (ELBOW)FITTING (ELBOW)
-
832-82381335 TUBING, (8.00 Inch)TUBING, (8.00 Inch)
-
932-8M0108355 FUEL LINE, (57.00 Inches Bulk)FUEL LINE, (57.00 Inches Bulk)
-
1035-816296Q03 FILTER, FuelFILTER, Fuel
-
1127-67751 GASKETGASKET
-
1216-270372 STUD, (.250-28 x 1.125)STUD, (.250-28 x 1.125)
-
1354-55098 J CLIPJ CLIP
-
1410-55715 SCREW, (.250-20 x .880)SCREW, (.250-20 x .880)
-
1513-26992 LOCKWASHER, (.250)LOCKWASHER, (.250)
-
1611-29598 NUT, (.250-28)NUT, (.250-28)
-
1732-9912878 HOSE, (26.00 Inches Bulk)HOSE, (26.00 Inches Bulk)
-
1832-892024122 TUBING, (20.00 Feet Bulk)TUBING, (20.00 Feet Bulk)
-
1942859A2 ENRICHNER VALVEENRICHNER VALVE
-
2054-633001 CLAMPCLAMP
-
2110-73286 SCREW, (.250-20 x .500)SCREW, (.250-20 x .500)
-
2232-9912688 TUBING, (36.00 Inches Bulk)TUBING, (36.00 Inches Bulk)
-
2386-45915 TERMINAL BLOCKTERMINAL BLOCK
-
2410-48408 SCREW, (#10-16 x .500)SCREW, (#10-16 x .500)
-
2410-38055 SCREW, (.190-32 X .62)SCREW, (.190-32 X .62)
-
2410-62568 SCREW, (#10-16 x .375)SCREW, (#10-16 x .375)
-
2410-69079 SCREW, (#10-16 x .440)SCREW, (#10-16 x .440)
-
-27-815791A92 GASKET SET
(135/150)GASKET SET
(135/150) -
-27-815791A92 GASKET SET
(XR4/Magnum II/175)GASKET SET
(XR4/Magnum II/175) -
-27-815791A92 GASKET SET
(200)GASKET SET
(200)
