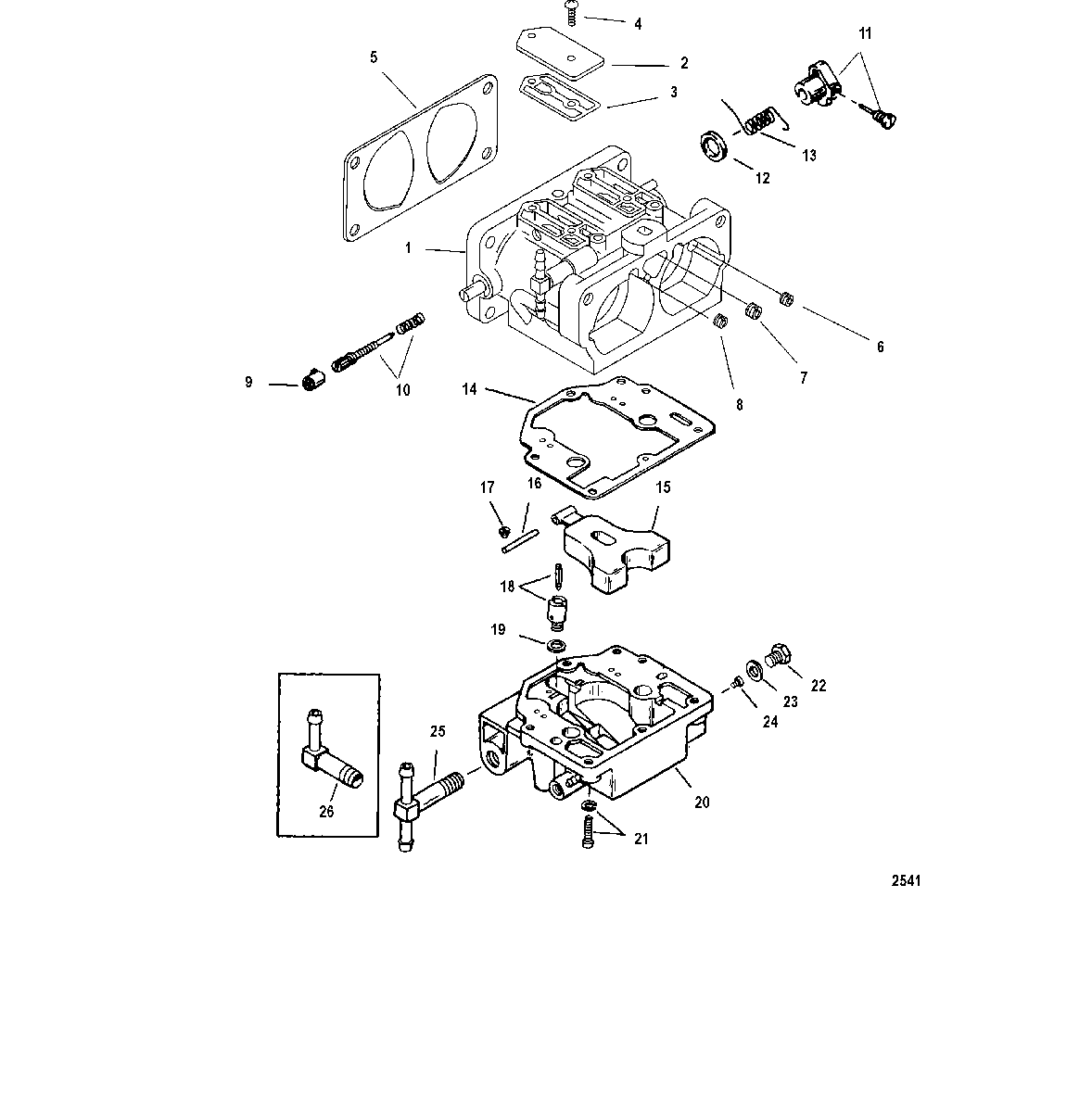

Carburetor для Mercury - V-150 0G960500 THRU 1B226999
-
№АртикулНазвание
-
13326-828272T88 CARBURETOR, Top
(135 - WMV-15A-1)CARBURETOR, Top
(135 - WMV-15A-1) -
13326-828272T89 CARBURETOR, Center
(135 - WMV-15A-2)CARBURETOR, Center
(135 - WMV-15A-2) -
13326-828272T90 CARBURETOR, Bottom
(135 - WMV-15A-3)CARBURETOR, Bottom
(135 - WMV-15A-3) -
13326-828272T67 CARBURETOR, Top
(140/150/XR6/MAGNUM III WMV-16-1)CARBURETOR, Top
(140/150/XR6/MAGNUM III WMV-16-1) -
13326-828272T68 CARBURETOR, Center
(140/150/XR6/MAGNUM III WMV-16-2)CARBURETOR, Center
(140/150/XR6/MAGNUM III WMV-16-2) -
13326-828272T69 CARBURETOR, Bottom
(140/150/XR6/MAGNUM III WMV-16-3)CARBURETOR, Bottom
(140/150/XR6/MAGNUM III WMV-16-3) -
13326-828272T73 CARBURETOR, Top
(200 - WMV-18-1)CARBURETOR, Top
(200 - WMV-18-1) -
13326-828272T74 CARBURETOR, Center
(200 - WMV-18-2)CARBURETOR, Center
(200 - WMV-18-2) -
13326-828272T75 CARBURETOR, Bottom
(200 - WMV-18-3)CARBURETOR, Bottom
(200 - WMV-18-3) -
21395-809743 COVERCOVER
-
31395-809758 GASKETGASKET
-
41395-8087391 SCREWSCREW
-
527-828292 GASKETGASKET
-
6815633046 JET, (.046), Idle Air Vent
(TOP)(135)(PORT) WMV-15A)JET, (.046), Idle Air Vent
(TOP)(135)(PORT) WMV-15A) -
6810742 JET, (.044), Idle Air Vent
(CENTER)(135)(PORT)(WMV-15A)JET, (.044), Idle Air Vent
(CENTER)(135)(PORT)(WMV-15A) -
6815633054 JET, (.054), Idle Air Vent
(BOTTOM)(135)(PORT)(WMV-15A)JET, (.054), Idle Air Vent
(BOTTOM)(135)(PORT)(WMV-15A) -
61399-7570 JET, .040, Idle Air Vent
(TOP/CENTER)(135) (PORT)(WMV-15)JET, .040, Idle Air Vent
(TOP/CENTER)(135) (PORT)(WMV-15) -
6815633048 JET, (.048), Idle Air Vent
(BOTTOM)(135)(PORT)(WMV-15)JET, (.048), Idle Air Vent
(BOTTOM)(135)(PORT)(WMV-15) -
6810742 JET, (.044), Idle Air Vent
(TOP/CENTER)(140/150/XR6/MAGNUM III)(PORT)JET, (.044), Idle Air Vent
(TOP/CENTER)(140/150/XR6/MAGNUM III)(PORT) -
6815633048 JET, (.048), Idle Air Vent
(BOTTOM)(140/150/XR6/MAGNUM III)(PORT)JET, (.048), Idle Air Vent
(BOTTOM)(140/150/XR6/MAGNUM III)(PORT) -
6815633038 JET, (.038), Idle Air Vent
(TOP)(200)(PORT)JET, (.038), Idle Air Vent
(TOP)(200)(PORT) -
6815633028 JET, (.028), Idle Air Vent
(CENTER)(200)(PORT)JET, (.028), Idle Air Vent
(CENTER)(200)(PORT) -
61399-3252 JET, (.032), Idle Air Vent
(BOTTOM)(200)(PORT)JET, (.032), Idle Air Vent
(BOTTOM)(200)(PORT) -
71395-5815 JET, (.086), Bowl Vent
(135/200)JET, (.086), Bowl Vent
(135/200) -
71399-3518 JET, (.082), Bowl Vent
(140/150/XR6/MAGNUM III)JET, (.082), Bowl Vent
(140/150/XR6/MAGNUM III) -
8815633038 JET, (.038), Idle Air Vent
(TOP)(135)(STBD)(WMV-15A)JET, (.038), Idle Air Vent
(TOP)(135)(STBD)(WMV-15A) -
81399-3026 JET, (.036), Idle Air Vent
(TOP)(135)(STBD)(WMV-15)JET, (.036), Idle Air Vent
(TOP)(135)(STBD)(WMV-15) -
8810741 JET, (.030), Idle Air Vent
(CENTER)(135)(STBD)(WMV-15/15A)JET, (.030), Idle Air Vent
(CENTER)(135)(STBD)(WMV-15/15A) -
8810742 JET, (.044), Idle Air Vent
(BOTTOM)(135)(STBD)(WMV-15A)JET, (.044), Idle Air Vent
(BOTTOM)(135)(STBD)(WMV-15A) -
8815633038 JET, (.038), Idle Air Vent
(BOTTOM)(135)(STBD)(WMV-15)JET, (.038), Idle Air Vent
(BOTTOM)(135)(STBD)(WMV-15) -
8810742 JET, (.044), Idle Air Vent
(STBD)(140/150/XR6/MAGNUM III)JET, (.044), Idle Air Vent
(STBD)(140/150/XR6/MAGNUM III) -
8815633038 JET, (.038), Idle Air Vent
(TOP)(STBD)(200)JET, (.038), Idle Air Vent
(TOP)(STBD)(200) -
8815633028 JET, (.028), Idle Air Vent
(CENTER/BOTTOM)(STBD)(200)JET, (.028), Idle Air Vent
(CENTER/BOTTOM)(STBD)(200) -
9810779 CAP, LimiterCAP, Limiter
-
10NSS NOT SOLD SEPARATE, Idle Mixture Screw/SpringNOT SOLD SEPARATE, Idle Mixture Screw/Spring
-
111395-8113523 LEVER KITLEVER KIT
-
121395-6031 SPACERSPACER
-
13NSS NOT SOLD SEPARATE, SpringNOT SOLD SEPARATE, Spring
-
14NSS NOT SOLD SEPARATE, Gasket-Fuel BowlNOT SOLD SEPARATE, Gasket-Fuel Bowl
-
15810738 FLOAT ASSEMBLYFLOAT ASSEMBLY
-
16F10064 SHAFT, FloatSHAFT, Float
-
171395-5902 SCREW, (#6-32 x .187)SCREW, (#6-32 x .187)
-
181395-8116901 VALVE SEAT KITVALVE SEAT KIT
-
19NSS NOT SOLD SEPARATE, GasketNOT SOLD SEPARATE, Gasket
-
201395-8236231 BOWL, Fuel
(TOP)BOWL, Fuel
(TOP) -
201395-8236241 BOWL, Fuel
(CENTER/BOTTOM)BOWL, Fuel
(CENTER/BOTTOM) -
211395-808612 SCREW AND WASHER, (#8-32 x .750)SCREW AND WASHER, (#8-32 x .750)
-
221395-811694 PLUG KITPLUG KIT
-
231395-802731 SEAL
(CONSISTS OF 4 GASKETS)SEAL
(CONSISTS OF 4 GASKETS) -
241395-6207 JET, (.072), Main Fuel
(135)JET, (.072), Main Fuel
(135) -
241399-3794 JET, (.074), Main Fuel
(STBD)(140/150/XR6/MAGNUM III)JET, (.074), Main Fuel
(STBD)(140/150/XR6/MAGNUM III) -
241395-6680 JET, (.078), Main Fuel
(PORT-TOP)(140/150/XR6/MAGNUM III)JET, (.078), Main Fuel
(PORT-TOP)(140/150/XR6/MAGNUM III) -
241399-3794 JET, (.074), Main Fuel
(PORT-CENTER/BOTTOM)(140/150/XR6/MAGNUM III)JET, (.074), Main Fuel
(PORT-CENTER/BOTTOM)(140/150/XR6/MAGNUM III) -
241395-6201 JET, (.080), Main Fuel
(200)(STBD-TOP/PORT-CENTER)JET, (.080), Main Fuel
(200)(STBD-TOP/PORT-CENTER) -
241399-3518 JET, (.082), Main Fuel
(200)(PORT-TOP/STBD-CENTER)JET, (.082), Main Fuel
(200)(PORT-TOP/STBD-CENTER) -
241395-6680 JET, (.078), Main Fuel
(200)(PORT-BOTTOM)JET, (.078), Main Fuel
(200)(PORT-BOTTOM) -
241399-3517 JET, (.084), Main Fuel
(200)(STBD-BOTTOM)JET, (.084), Main Fuel
(200)(STBD-BOTTOM) -
251395-7900 TEE FITTING
(TOP/CENTER)TEE FITTING
(TOP/CENTER) -
261395-7901 ELBOW
(BOTTOM)ELBOW
(BOTTOM) -
-1395-8116913 REPAIR KIT, Carburetor
(1 Per Carburetor)REPAIR KIT, Carburetor
(1 Per Carburetor) -
-8107493 GASKET SET, Carburetor
(1 Per Carburetor)GASKET SET, Carburetor
(1 Per Carburetor) -
-27-815791A00 GASKET SET, Engine, Cylinder head o-rings and seal not includedGASKET SET, Engine, Cylinder head o-rings and seal not included
