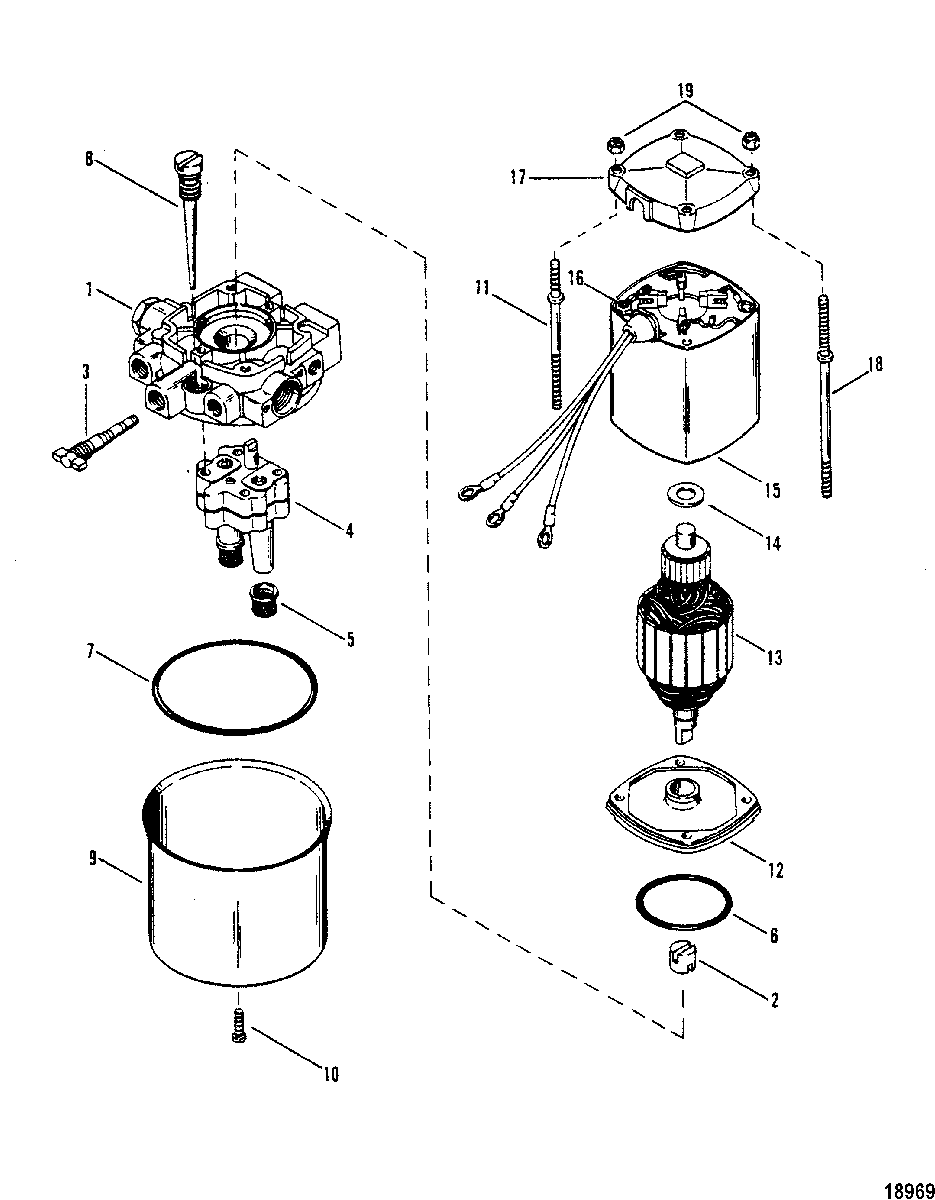

Hydraulic Pump(S/N-5432022 and Up) для Mercury - V-150 4868998 THRU 0A904645
-
№АртикулНазвание
-
--823653A9 PUMP ASSEMBLY, HydraulicPUMP ASSEMBLY, Hydraulic
-
1823653A9 ADAPTORADAPTOR
-
2803852 COUPLINGCOUPLING
-
399073A2 MANUAL RELEASE
(INCLUDES 2 O-RINGS)MANUAL RELEASE
(INCLUDES 2 O-RINGS) -
399073A2 MANUAL RELEASE
(INCLUDES 3 O-RINGS)MANUAL RELEASE
(INCLUDES 3 O-RINGS) -
4823653A9 PUMP (INCLUDES SCREWS)PUMP (INCLUDES SCREWS)
-
535-89496 FILTERFILTER
-
625-89498 O-RINGO-RING
-
725-89497 O-RINGO-RING
-
889499 DIPSTICKDIPSTICK
-
990587T RESERVOIRRESERVOIR
-
1010-90588 SCREW
(INCLUDES O-RING)SCREW
(INCLUDES O-RING) -
1116-90589 THRU STUD
(SHORT)THRU STUD
(SHORT) -
1116-90590 THRU STUD
(LONG)THRU STUD
(LONG) -
--17649A02 MOTORMOTOR
-
1289484 END FRAMEEND FRAME
-
1389485 ARMATUREARMATURE
-
1412-89482 WASHERWASHER
-
1589486 FIELD AND FRAMEFIELD AND FRAME
-
1617649A02 BRUSH CARDBRUSH CARD
-
1789488 END FRAMEEND FRAME
-
1810-89483 THRU BOLT
(4-1/4")THRU BOLT
(4-1/4") -
1810-89489 THRU BOLT
(4-9/16")THRU BOLT
(4-9/16") -
1911-89481 NUTNUT
-
-812501A1 REPAIR KIT, Relief ValveREPAIR KIT, Relief Valve
-
-99073A2 REPAIR KIT, OverhaulREPAIR KIT, Overhaul
