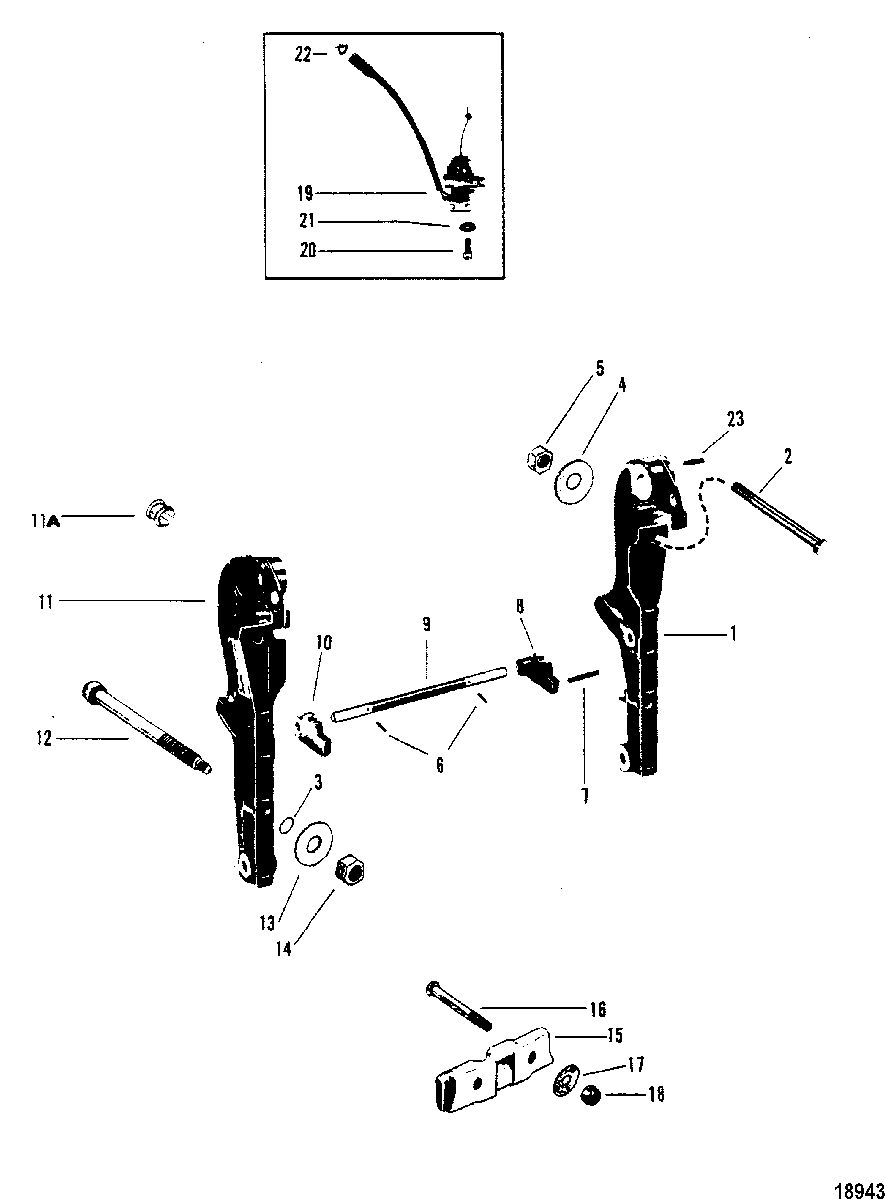

Transom Brackets(S/N-USA-5503246/AUS-8062734 and Below) для Mercury - V-1500 4868998 THRU 0A904645
-
№АртикулНазвание
-
11474-7076 BRACKET, Transom - PortBRACKET, Transom - Port
-
210-677552 SCREW, (.500-20 x 6.500)SCREW, (.500-20 x 6.500)
-
325-75320 O-RINGO-RING
-
412-28421 WASHER, (1.5 x 3.05 x 0.13) Stainless SteelWASHER, (1.5 x 3.05 x 0.13) Stainless Steel
-
511-35000 NUT, (.500-20) Stainless SteelNUT, (.500-20) Stainless Steel
-
617-25810 PINPIN
-
717-75319 PIN, RollPIN, Roll
-
875293 STOP, Trim - PortSTOP, Trim - Port
-
975292 SHAFTSHAFT
-
1067718 STOP, Trim - StarboardSTOP, Trim - Starboard
-
11NLA No Longer Available, Transom Bracket-StarboardNo Longer Available, Transom Bracket-Starboard
-
11A79279 CLAMPCLAMP
-
1222-67666 CONNECTOR
(STARBOARD )CONNECTOR
(STARBOARD ) -
1222-67667 CONNECTOR
(PORT )CONNECTOR
(PORT ) -
1312-28421 WASHER, (1.5 x 3.05 x 0.13) Stainless SteelWASHER, (1.5 x 3.05 x 0.13) Stainless Steel
-
1411-35000 NUT, (.500-20) Stainless SteelNUT, (.500-20) Stainless Steel
-
1576990 PADPAD
-
1610-76841 SCREW, (.500-20 x 3.500)SCREW, (.500-20 x 3.500)
-
1712-28421 WASHER, (1.5 x 3.05 x 0.13) Stainless SteelWASHER, (1.5 x 3.05 x 0.13) Stainless Steel
-
1811-35000 NUT, (.500-20) Stainless SteelNUT, (.500-20) Stainless Steel
-
1975290A1 SENDER ASSEMBLY, TiltSENDER ASSEMBLY, Tilt
-
2010-37656 SCREW, (#10-32 x .620)SCREW, (#10-32 x .620)
-
2112-30164 WASHER, (.192 x .375 x .0312) Stainless SteelWASHER, (.192 x .375 x .0312) Stainless Steel
-
2254-75343 CLAMPCLAMP
-
2317-75688 PIN, LocatingPIN, Locating
