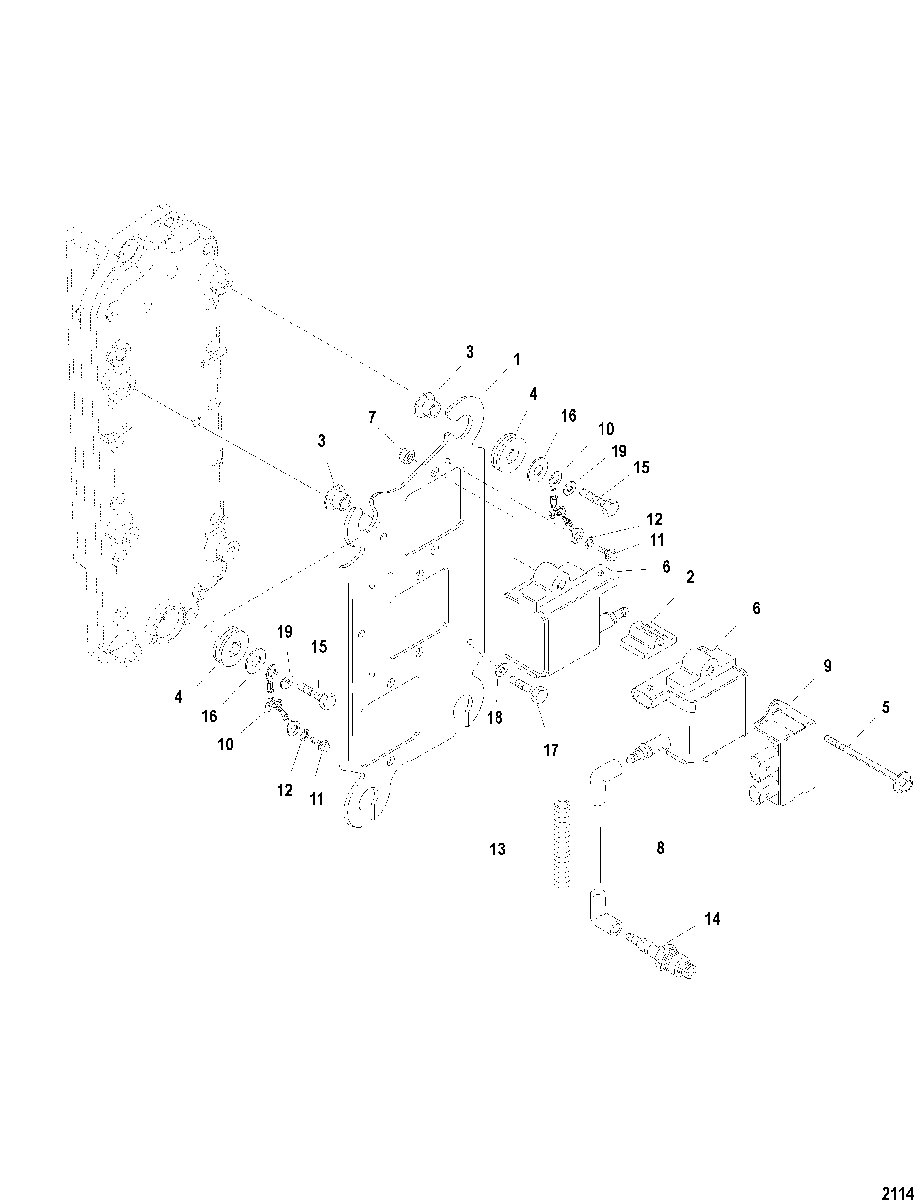

COIL PLATE ASSEMBLY для Mercury - V-175 DFI (2.5L) 0T178500 THRU 0T800999
-
№АртикулНазвание
-
-NSS NOT SOLD SEPARATE, COIL PLATE ASSEMBLYNOT SOLD SEPARATE, COIL PLATE ASSEMBLY
-
18M0011731 PLATE, CoilPLATE, Coil
-
2850676F1 SPACERSPACER
-
323-8502341 BUSHINGBUSHING
-
425-833155 GROMMETGROMMET
-
510-850898 SCREW, (.250-20 x 3.250)SCREW, (.250-20 x 3.250)
-
6339-856991A1 COIL KITCOIL KIT
-
711-814101 NUT, (.250-20) Stainless SteelNUT, (.250-20) Stainless Steel
-
884-881908T CABLE SETCABLE SET
-
9859595T DRIVER, Dual CoilDRIVER, Dual Coil
-
1084-858414A1 CABLE ASSEMBLY, BraidedCABLE ASSEMBLY, Braided
-
1110-82129110 SCREW, (M6 x 10)SCREW, (M6 x 10)
-
1212-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
1332-828547353 CONDUIT, (.350 Inside Diameter x 3.00 Feet Bulk)CONDUIT, (.350 Inside Diameter x 3.00 Feet Bulk)
-
1433-889597Q SPARK PLUGSPARK PLUG
-
1510-60411 SCREW, (.312-18 x 1.250)SCREW, (.312-18 x 1.250)
-
1612-49436 WASHERWASHER
-
1710-82129114 SCREW, (M6 x 14)SCREW, (M6 x 14)
-
1812-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
1912-8M0042642 WASHER, (.323 x .563 x .063) Stainless SteelWASHER, (.323 x .563 x .063) Stainless Steel
