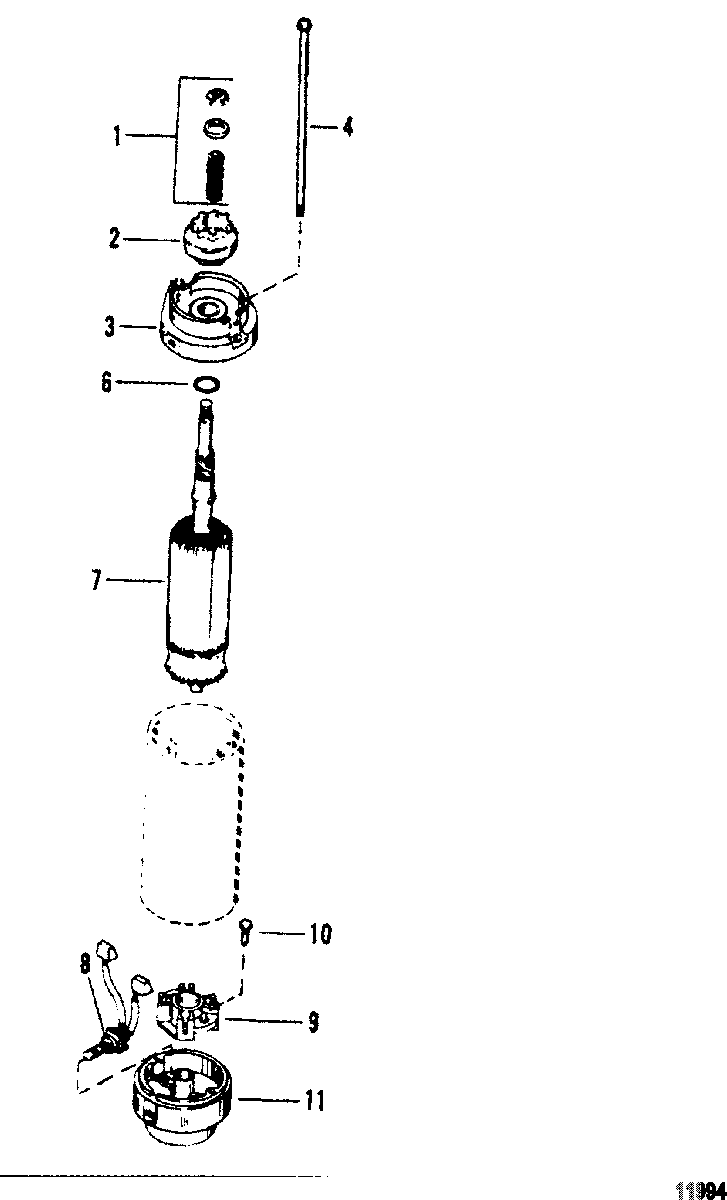

Starter Motor Assembly для Mercury - V-175 0C239553 THRU 0D081999
-
№АртикулНазвание
-
-50-893893 STARTER MOTORSTARTER MOTOR
-
190645 DRIVE KITDRIVE KIT
-
213310T1 DRIVEDRIVE
-
375660 PLATEPLATE
-
410-74968 BOLTBOLT
-
6NSS NOT SOLD SEPARATE, Washer (AMERICAN BOSCH # WA3122)NOT SOLD SEPARATE, Washer (AMERICAN BOSCH # WA3122)
-
779216 ARMATUREARMATURE
-
8898265016 BRUSH/SPRING KITBRUSH/SPRING KIT
-
9898265014 HOLDERHOLDER
-
10NSS NOT SOLD SEPARATE, Screw (AMER. BOSCH # 02441-22-SC-30SM)NOT SOLD SEPARATE, Screw (AMER. BOSCH # 02441-22-SC-30SM)
-
1115386001 END CAPEND CAP
