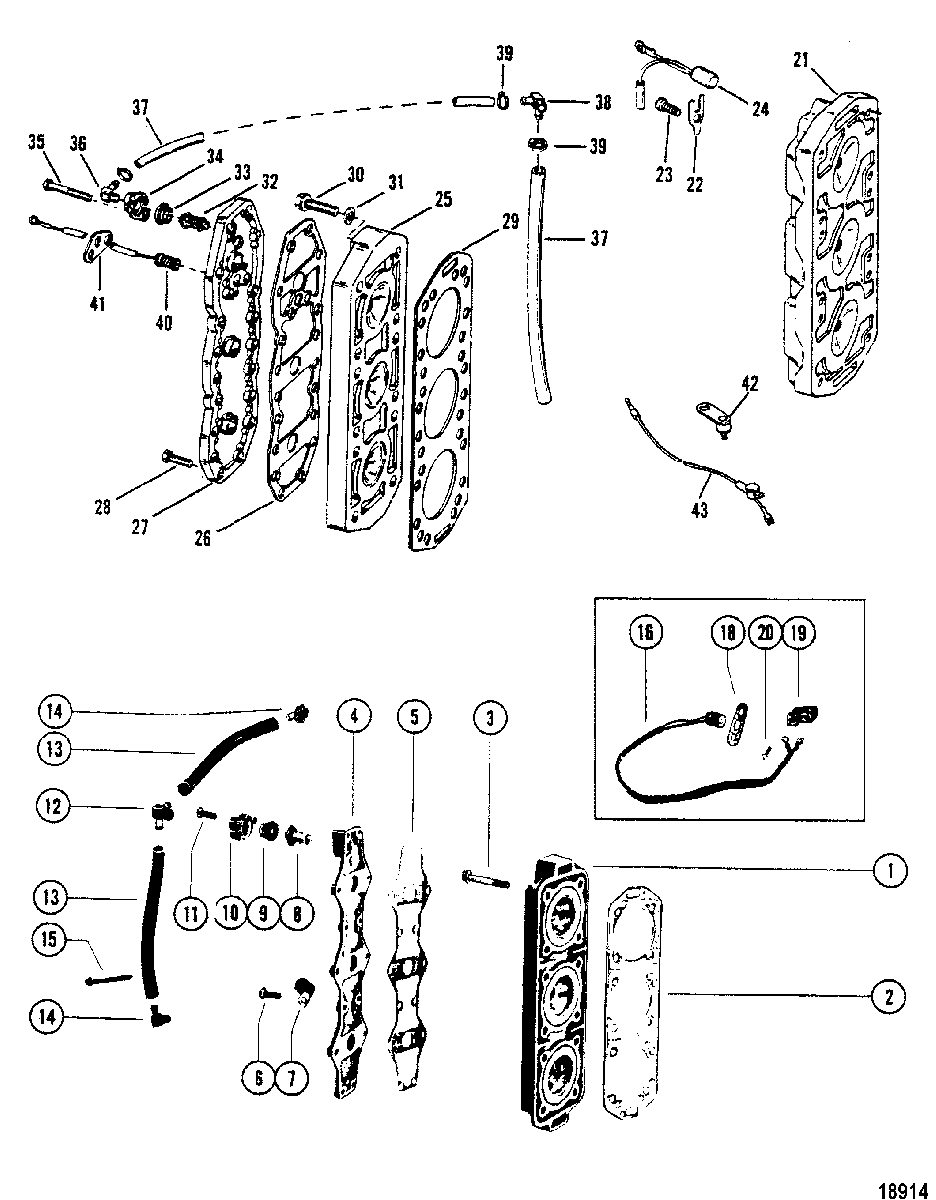

Cylinder Head для Mercury - V-175 4301235 THRU 0C100860
-
№АртикулНазвание
-
179715 CYLINDER HEAD
(DESIGN I)CYLINDER HEAD
(DESIGN I) -
227-795831 GASKET
(DESIGN I)GASKET
(DESIGN I) -
310-668631 SCREW (2-1/2")
(DESIGN I)SCREW (2-1/2")
(DESIGN I) -
41026-7270A1 COVER
(DESIGN I)COVER
(DESIGN I) -
527-65788 GASKET
(DESIGN I)GASKET
(DESIGN I) -
610-35386 SCREW, (.312-18 x 1.00)
(DESIGN I)SCREW, (.312-18 x 1.00)
(DESIGN I) -
610-74824 SCREW, (.312-18 x 1.250)
(DESIGN I)SCREW, (.312-18 x 1.250)
(DESIGN I) -
754-47483 J CLIP
(DESIGN I)J CLIP
(DESIGN I) -
875692 THERMOSTAT
(DESIGN I)THERMOSTAT
(DESIGN I) -
927-62386001 GASKET
(DESIGN I)GASKET
(DESIGN I) -
1090390A1 COVER KIT
(DESIGN I)COVER KIT
(DESIGN I) -
1110-66023 SCREW
(2"-FLANGED HEAD)(DESIGN I)SCREW
(2"-FLANGED HEAD)(DESIGN I) -
1110-815549 SCREW, .312-18 x 2.00
(DESIGN I)SCREW, .312-18 x 2.00
(DESIGN I) -
1110-35386 SCREW, (.312-18 x 1.00)
(DESIGN I)SCREW, (.312-18 x 1.00)
(DESIGN I) -
1222-68728 FITTING
(DESIGN I)FITTING
(DESIGN I) -
1332-77653101 HOSE, (24.500 Inches Bulk)
(DESIGN I)HOSE, (24.500 Inches Bulk)
(DESIGN I) -
1422-687271 FITTING, (.250-18 Brass)
(DESIGN I)FITTING, (.250-18 Brass)
(DESIGN I) -
1561990 CABLE TIE, (14.00 Inches)
(DESIGN I)CABLE TIE, (14.00 Inches)
(DESIGN I) -
1678799 TEMPERATURE SENDER, (19.50 Inch)
(DESIGN I)TEMPERATURE SENDER, (19.50 Inch)
(DESIGN I) -
1871162 COVER
(DESIGN I)COVER
(DESIGN I) -
1986-45915 TERMINAL BLOCK
(DESIGN I)TERMINAL BLOCK
(DESIGN I) -
2010-69079 SCREW, (#10-16 x .440)
(DESIGN I)SCREW, (#10-16 x .440)
(DESIGN I) -
2115221A5 CYLINDER HEAD
(1 Piece Design)(DESIGN II)CYLINDER HEAD
(1 Piece Design)(DESIGN II) -
22137151 RETAINER
(Use With Ref. #21)(DESIGN II)RETAINER
(Use With Ref. #21)(DESIGN II) -
2310-98257 SCREW, (.312-18 x .500)
(Use With Ref. #21)(DESIGN II)SCREW, (.312-18 x .500)
(Use With Ref. #21)(DESIGN II) -
2413536A7 TEMPERATURE SENSOR
(Use With Ref #21)(DESIGN II)TEMPERATURE SENSOR
(Use With Ref #21)(DESIGN II) -
2596532 CYLINDER HEAD
(2 Piece Design)(DESIGN II)CYLINDER HEAD
(2 Piece Design)(DESIGN II) -
2627-96278 GASKET
(2 Piece Design)(DESIGN II)GASKET
(2 Piece Design)(DESIGN II) -
2796283 COVER
(2 Piece Design)(DESIGN II)COVER
(2 Piece Design)(DESIGN II) -
2810-74824 SCREW, (.312-18 x 1.250)
(2 Piece Design)(DESIGN II)SCREW, (.312-18 x 1.250)
(2 Piece Design)(DESIGN II) -
2927-41247T01 GASKET
(DESIGN II)GASKET
(DESIGN II) -
3010-98534 SCREW, (.375-16 X 2.30)
(DESIGN II)SCREW, (.375-16 X 2.30)
(DESIGN II) -
3112-25909 WASHER, (.406 x .812 x .065)
(DESIGN II)WASHER, (.406 x .812 x .065)
(DESIGN II) -
3275692 THERMOSTAT
(DESIGN II)THERMOSTAT
(DESIGN II) -
3327-62386001 GASKET
(DESIGN II)GASKET
(DESIGN II) -
3490390A1 COVER KIT
(DESIGN II)COVER KIT
(DESIGN II) -
3510-815549 SCREW, .312-18 x 2.00
(Not Used With Ref. #21)(DESIGN II)SCREW, .312-18 x 2.00
(Not Used With Ref. #21)(DESIGN II) -
3510-35386 SCREW, (.312-18 x 1.00)
(Qty. Of 4 Used With Ref. #21)(DESIGN II)SCREW, (.312-18 x 1.00)
(Qty. Of 4 Used With Ref. #21)(DESIGN II) -
3622-687271 FITTING, (.250-18 Brass)
(DESIGN II)FITTING, (.250-18 Brass)
(DESIGN II) -
3732-77653101 HOSE, (24.500 Inches Bulk)
(DESIGN II)HOSE, (24.500 Inches Bulk)
(DESIGN II) -
3822-68728 FITTING
(DESIGN II)FITTING
(DESIGN II) -
3954-816311T CABLE TIE, (8.00 Inches)
(DESIGN II)CABLE TIE, (8.00 Inches)
(DESIGN II) -
4097465 TEMPERATURE SENDER
(DESIGN II)TEMPERATURE SENDER
(DESIGN II) -
4196282 COVER
(Not Used With Ref. #21)(DESIGN II)COVER
(Not Used With Ref. #21)(DESIGN II) -
42187531 TEMPERATURES SENDER
(OYSTER)TEMPERATURES SENDER
(OYSTER) -
4384-88824A8 CABLE
(OYSTER)CABLE
(OYSTER) -
-27-11338A88 GASKET SET, Engine Overhaul
SN# 6618751 & UpGASKET SET, Engine Overhaul
SN# 6618751 & Up -
-27-79583A81 GASKET SET
SN# 5875204 THRU 6618750GASKET SET
SN# 5875204 THRU 6618750 -
-NLA No Longer Available, Gasket Set
(Service Bulletin 81-8) SN# USA-5875203/AUS-8072022 & BelowNo Longer Available, Gasket Set
(Service Bulletin 81-8) SN# USA-5875203/AUS-8072022 & Below
