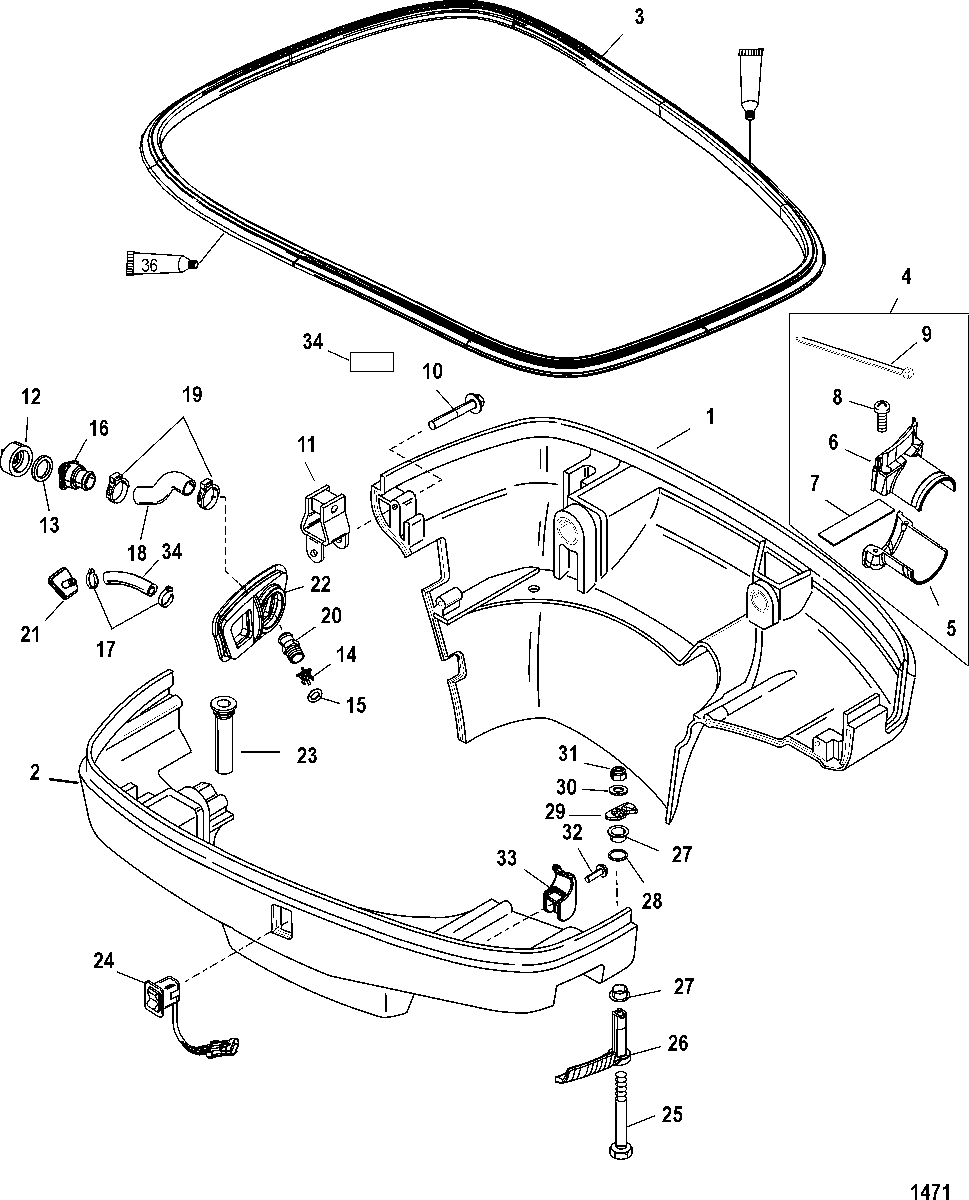

BOTTOM COWL для Mercury - V-200 EFI (2.5L) 0T409000 THRU 0T800999
-
№АртикулНазвание
-
14022-828044A1 BOTTOM COWL, Black (PORT)BOTTOM COWL, Black (PORT)
-
2100-8M0107326 BOTTOM COWL, Black (STARBOARD)BOTTOM COWL, Black (STARBOARD)
-
38M0109217 SEAL, Cowl (41.00 Inches)SEAL, Cowl (41.00 Inches)
-
4875266A2 RIGGING KITRIGGING KIT
-
5859435T INSERT (BOTTOM)INSERT (BOTTOM)
-
6859434T INSERT (TOP)INSERT (TOP)
-
7859343 FOAMFOAM
-
810-92799 SCREW, (#10-16 x 1.12)SCREW, (#10-16 x 1.12)
-
954-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
1010-82130040 SCREW, (M6 x 40)SCREW, (M6 x 40)
-
11831209 RETAINERRETAINER
-
1219-821908 PLUGPLUG
-
1312-821915 WASHERWASHER
-
148219631 CHECK VALVECHECK VALVE
-
1525-30641 O-RING, (.299 x .103)O-RING, (.299 x .103)
-
1622-821952 FITTINGFITTING
-
1754-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
1832-8M0039077 HOSEHOSE
-
1954-850896 CLAMP, (28.6)CLAMP, (28.6)
-
2022-8320763 FITTINGFITTING
-
2122-8M0077650 FITTING, Tell-TaleFITTING, Tell-Tale
-
22889847 IDLE EXHAUST BOOT, ExhaustIDLE EXHAUST BOOT, Exhaust
-
2321-817519A1 CHECK VALVE ASSEMBLY, DrainCHECK VALVE ASSEMBLY, Drain
-
2487-8M0042300 SWITCH, TrimSWITCH, Trim
-
2510-824868 SCREW, (M6 x 75)SCREW, (M6 x 75)
-
26889740A02 FRONT HANDLE, BlackFRONT HANDLE, Black
-
2723-335891 BUSHINGBUSHING
-
2825-48462 O-RING, (.614 x .070)O-RING, (.614 x .070)
-
298219423 PAWLPAWL
-
3012-69057 WASHER, (.281 x .734 x .063)WASHER, (.281 x .734 x .063)
-
3111-401366 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
3210-8214281 SCREW, (#10-16 x .625)SCREW, (#10-16 x .625)
-
3354-822873 CLIPCLIP
-
3432-8M0108355 HOSE, (57.00 Inches Bulk), Telltale (8 In.)HOSE, (57.00 Inches Bulk), Telltale (8 In.)
