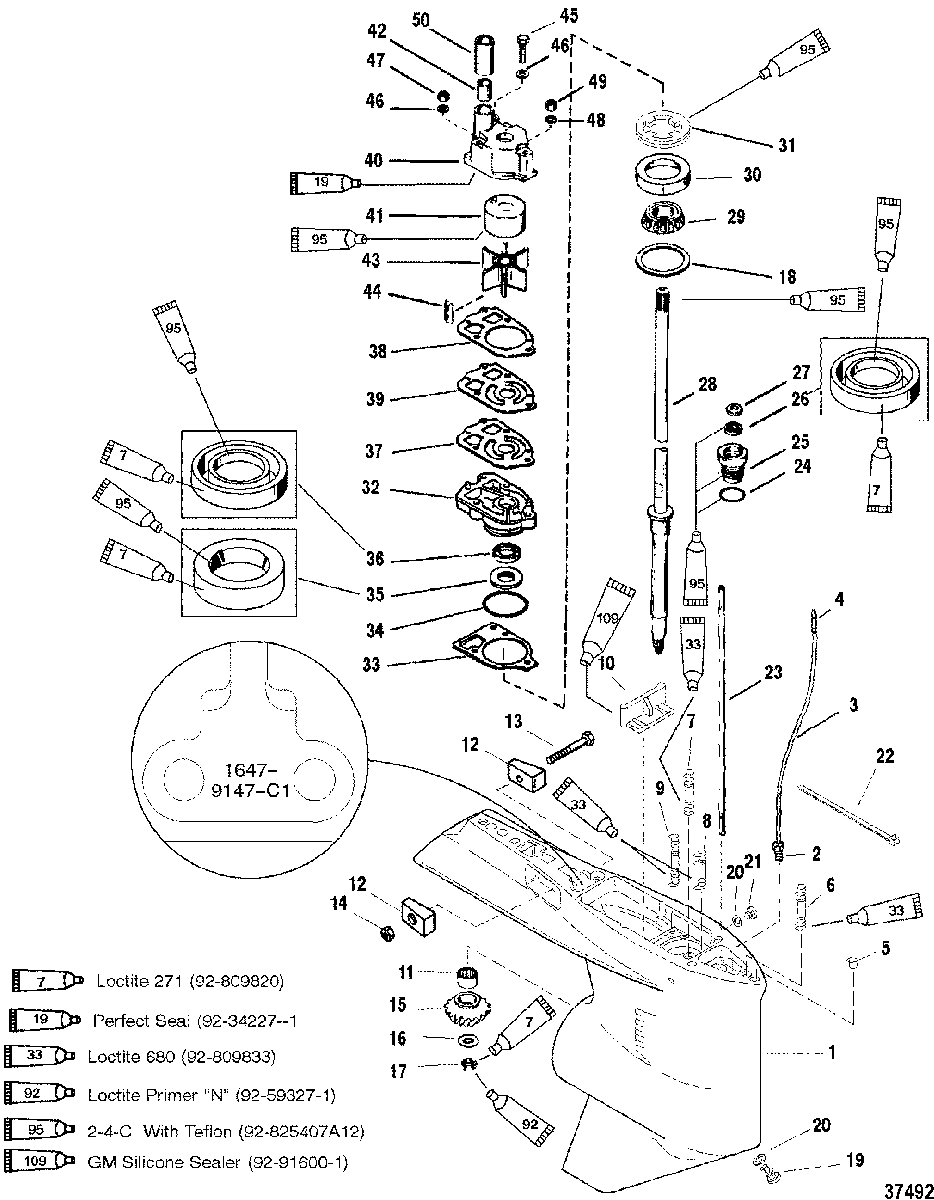

GEAR HSG(DRIVESHAFT)(STD ROTATION) (S/N-0G437999, BELOW) для Mercury - V-200 (EFI) 0G303046 THRU 0G760299
-
№АртикулНазвание
-
11647-9148T47 GEAR HOUSING ASSEMBLY
(BLACK)(BASIC)GEAR HOUSING ASSEMBLY
(BLACK)(BASIC) -
11647-9148T47 GEAR HOUSING ASSEMBLY
(GRAY)(BASIC)GEAR HOUSING ASSEMBLY
(GRAY)(BASIC) -
222-85822A10 CONNECTOR ASSEMBLYCONNECTOR ASSEMBLY
-
3NSS NOT SOLD SEPARATE, TUBINGNOT SOLD SEPARATE, TUBING
-
4NSS NOT SOLD SEPARATE, CONNECTORNOT SOLD SEPARATE, CONNECTOR
-
517-43044 PIN, Dowel - Without Hole (.375 x .625)PIN, Dowel - Without Hole (.375 x .625)
-
616-786382 STUD, (.437-14/.437-20 x 3.120)
(LONG)STUD, (.437-14/.437-20 x 3.120)
(LONG) -
616-8M0034464 STUD, (.438 x 3.82 Inches)
(X-LONG)STUD, (.438 x 3.82 Inches)
(X-LONG) -
716-8M0133358 STUD, (.437-14/.437-20 x 2.060)STUD, (.437-14/.437-20 x 2.060)
-
816-8M0034463 STUD, (.312 x 3.38)STUD, (.312 x 3.38)
-
916-306671 STUD, (.250-20/.250-28 x 3.125)STUD, (.250-20/.250-28 x 3.125)
-
108M0039169 FILLER BLOCKFILLER BLOCK
-
1131-42647A1 BEARING ASSEMBLY, RollerBEARING ASSEMBLY, Roller
-
1297-826134Q ANODEANODE
-
1310-4000333 SCREW, (M6 x 40)SCREW, (M6 x 40)
-
1411-401386 NUT, (M6)NUT, (M6)
-
15NSS NOT SOLD SEPARATE, PINION GEAR (PART OF 43-44104A8(1.87:1 GEAR RATIO-15TEETH)NOT SOLD SEPARATE, PINION GEAR (PART OF 43-44104A8(1.87:1 GEAR RATIO-15TEETH)
-
1612-92721 WASHER (NOT USED W/HIGH ALTITUDE)
INCLUDED WITH FORWARD GEAR SETWASHER (NOT USED W/HIGH ALTITUDE)
INCLUDED WITH FORWARD GEAR SET -
1711-35921 NUT, (.625-18)
INCLUDED WITH FORWARD GEAR SETNUT, (.625-18)
INCLUDED WITH FORWARD GEAR SET -
1815-8M0063267 SHIM SET
INCLUDED WITH FORWARD GEAR SETSHIM SET
INCLUDED WITH FORWARD GEAR SET -
1922-8M0058389 FITTING KIT, Magnetic, Plug Fill/DrainFITTING KIT, Magnetic, Plug Fill/Drain
-
2012-191833 WASHER, FiberWASHER, Fiber
-
2110-79953Q04 SCREW KIT, (.375-16 x .250)SCREW KIT, (.375-16 x .250)
-
2256762 TIE STRAP, (4.00 Inches)TIE STRAP, (4.00 Inches)
-
23789022 SHIFT SHAFTSHIFT SHAFT
-
2425-25439 O-RING, (.862 x .103)O-RING, (.862 x .103)
-
2523-77631A2 BUSHING ASSEMBLYBUSHING ASSEMBLY
-
2626-8164641 SEAL, OilSEAL, Oil
-
2712-77674 WASHERWASHER
-
2845-897624T DRIVESHAFT
(LONG)DRIVESHAFT
(LONG) -
2845-897625T DRIVESHAFT
(X-LONG)DRIVESHAFT
(X-LONG) -
2931-36387A1 BEARING, RollerBEARING, Roller
-
30NSS NOT SOLD SEPARATE, CUP, TAPEREDNOT SOLD SEPARATE, CUP, TAPERED
-
318245191 RETAINERRETAINER
-
3246-8M0077147 BASE ASSEMBLY, Water PumpBASE ASSEMBLY, Water Pump
-
3327-426311 GASKETGASKET
-
3425-896523 O-RING, (2.175 x .175)O-RING, (2.175 x .175)
-
3526-89238 SEAL, OilSEAL, Oil
-
3626-16977 SEAL, OilSEAL, Oil
-
3727-8M0090319 GASKETGASKET
-
3827-858524 GASKETGASKET
-
39324351 FACE PLATEFACE PLATE
-
4046-96148T1 BODY ASSEMBLY, Water PumpBODY ASSEMBLY, Water Pump
-
4148752T INSERTINSERT
-
4226-38970 SEALSEAL
-
4347-89984T3 IMPELLERIMPELLER
-
4428-8M0032834 KEYKEY
-
4510-96411 SCREW, (#14-8 x 2.25)SCREW, (#14-8 x 2.25)
-
4612-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
4711-8267119 NUT, (.250-28)NUT, (.250-28)
-
4812-36001 WASHERWASHER
-
4911-13436 NUTNUT
-
5023-29804T SLEEVESLEEVE
-
-27-815791A92 GASKET SET, EngineGASKET SET, Engine
-
-46-96148A8 REPAIR KIT, Water PumpREPAIR KIT, Water Pump
-
-26-89238A2 SEAL KITSEAL KIT
