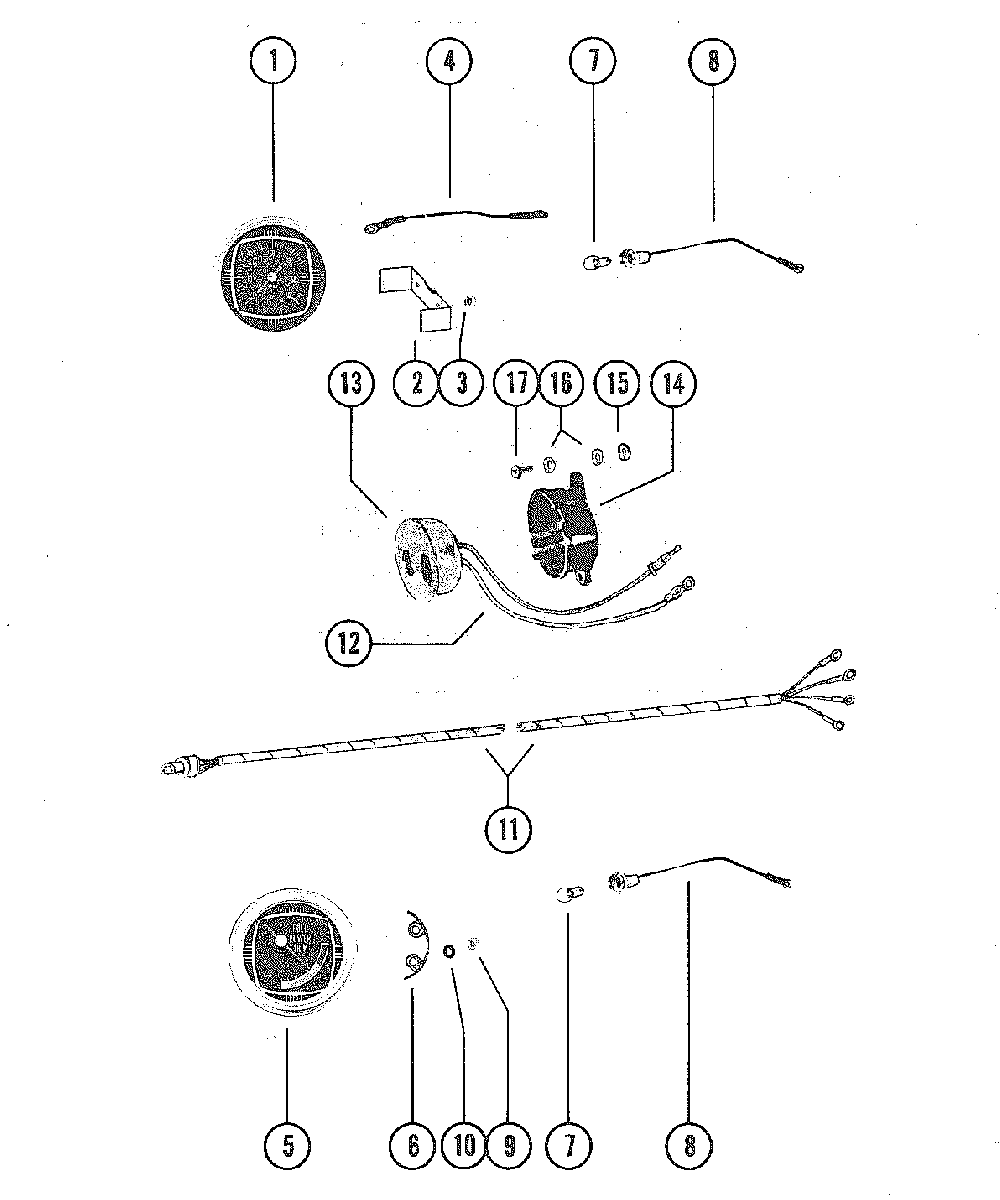

TACHOMETER, TRIM GAUGE AND ALARM HORN для Mercury - V-225 5628028 AND UP
-
№АртикулНазвание
-
179-895283Q43 TACHOMETERTACHOMETER
-
279101T BRACKET, MOUNTING-TACHOMETERBRACKET, MOUNTING-TACHOMETER
-
311-45076 NUT, TACHOMETER TERMINAL (#10-32)NUT, TACHOMETER TERMINAL (#10-32)
-
484-86322A7 WIRE, TRIM GAUGE (BLACK-1-1/2")WIRE, TRIM GAUGE (BLACK-1-1/2")
-
484-86323A5 WIRE, TRIM GAUGE (PURPLE-1-1/2")WIRE, TRIM GAUGE (PURPLE-1-1/2")
-
579-895292Q41 TRIM GAUGETRIM GAUGE
-
679480 BRACKET, MOUNTING-TRIM GAUGEBRACKET, MOUNTING-TRIM GAUGE
-
788-72729 LIGHT BULB, TRIM GAUGE AND TACHOMETERLIGHT BULB, TRIM GAUGE AND TACHOMETER
-
888-79888 SOCKET, TRIM GAUGE AND TACHOMETERSOCKET, TRIM GAUGE AND TACHOMETER
-
911-26419 NUT, TRIM GAUGE TERMINAL (8-32)NUT, TRIM GAUGE TERMINAL (8-32)
-
1013-26995 LOCKWASHER, TRIM GAUGE TERMINAL (#8)LOCKWASHER, TRIM GAUGE TERMINAL (#8)
-
1184-86396A8 HARNESSHARNESS
-
1268878A6 ALARM HORN AND WIRE ASSEMBLYALARM HORN AND WIRE ASSEMBLY
-
1368878A6 HORN, ALARMHORN, ALARM
-
1468879 COVER, ALARM HORNCOVER, ALARM HORN
-
1523-8M0084588 SPACER, ALARM HORNSPACER, ALARM HORN
-
1612-24676 WASHER, ALARM HORNWASHER, ALARM HORN
-
1710-35401 SCREW, ALARM HORNSCREW, ALARM HORN
