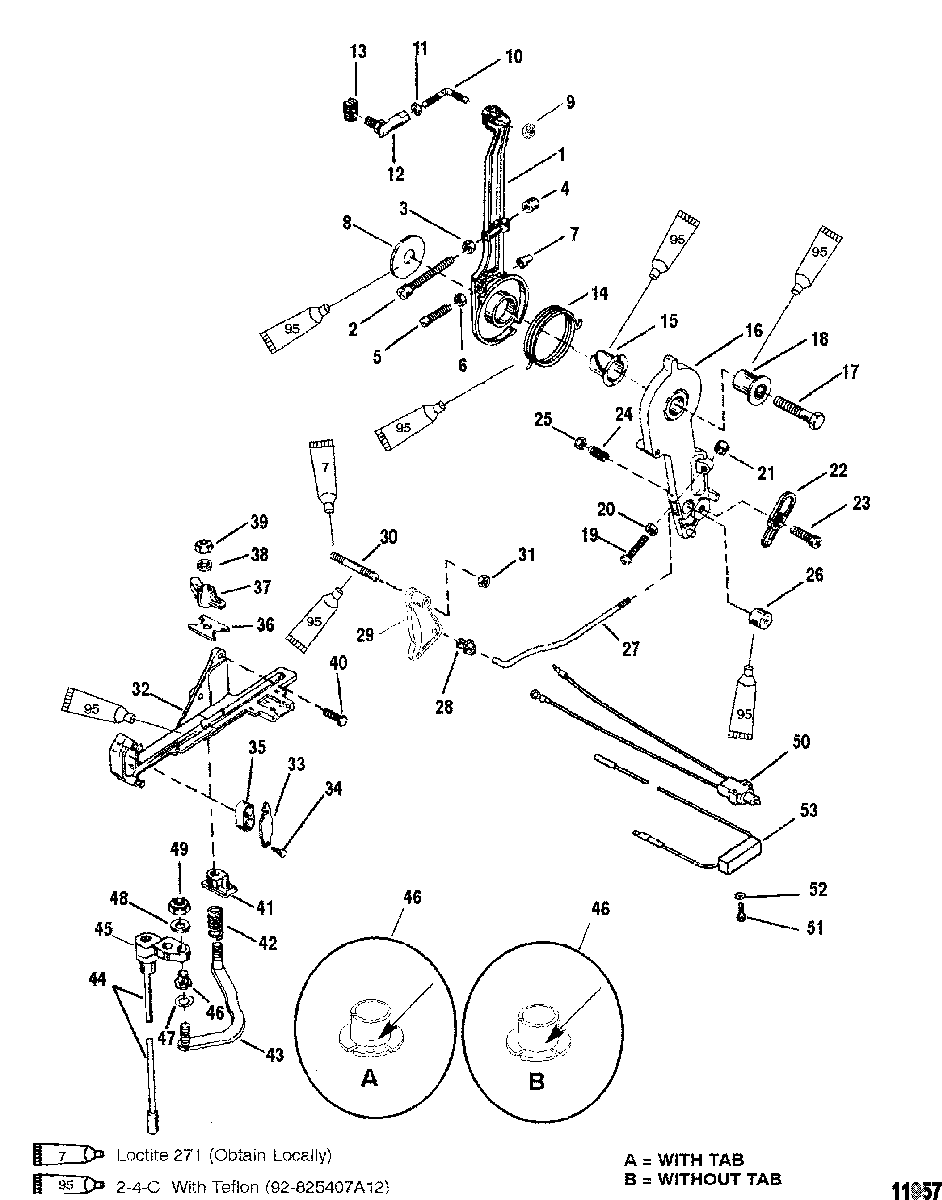

Throttle Lever And Shift Shaft для Mercury - XR-6 0G303046 THRU 0G760299
-
№АртикулНазвание
-
141094A3 LEVER ASSEMBLYLEVER ASSEMBLY
-
210-64022 SCREW, (.250-20 x 2.125)SCREW, (.250-20 x 2.125)
-
311-64015 NUT, (.250-20)NUT, (.250-20)
-
426852 CAP, NylonCAP, Nylon
-
510-13627 SCREW, (.190-32 x 1.250)SCREW, (.190-32 x 1.250)
-
611-68219 NUT, (#10-32) Stainless SteelNUT, (#10-32) Stainless Steel
-
748039 CAPCAP
-
812-46765 WASHER, (.390 x 1.50 x .120)WASHER, (.390 x 1.50 x .120)
-
911-46438 NUT, (#10-32)NUT, (#10-32)
-
1076035 RODROD
-
1111-45076 NUT, (#10-32) BrassNUT, (#10-32) Brass
-
1262459T BALL JOINT ASSEMBLYBALL JOINT ASSEMBLY
-
1374897T PIVOTPIVOT
-
1424-823235 SPRINGSPRING
-
1523-55171 BUSHINGBUSHING
-
16410952 LEVERLEVER
-
1710-818165 SCREW, (.375-16 x 1.75)SCREW, (.375-16 x 1.75)
-
1823-55164 BUSHINGBUSHING
-
1910-64022 SCREW, (.250-20 x 2.125)SCREW, (.250-20 x 2.125)
-
2011-64015 NUT, (.250-20)NUT, (.250-20)
-
2126852 CAP, NylonCAP, Nylon
-
2239483 LATCHLATCH
-
2310-69026 SCREW, (.250-28 x .880)SCREW, (.250-28 x .880)
-
2424-20099 SPRINGSPRING
-
2511-826709109 NUT, (.250-28)NUT, (.250-28)
-
2614638 BARRELBARREL
-
278302391 RODROD
-
2823-932481 BUSHINGBUSHING
-
298282761 CAM, Throttle
(135)CAM, Throttle
(135) -
29828276 CAM
(150 Thru 200)CAM
(150 Thru 200) -
3016-20353 STUD, (.250-28 x 1.750)STUD, (.250-28 x 1.750)
-
3111-826709109 NUT, (.250-28)NUT, (.250-28)
