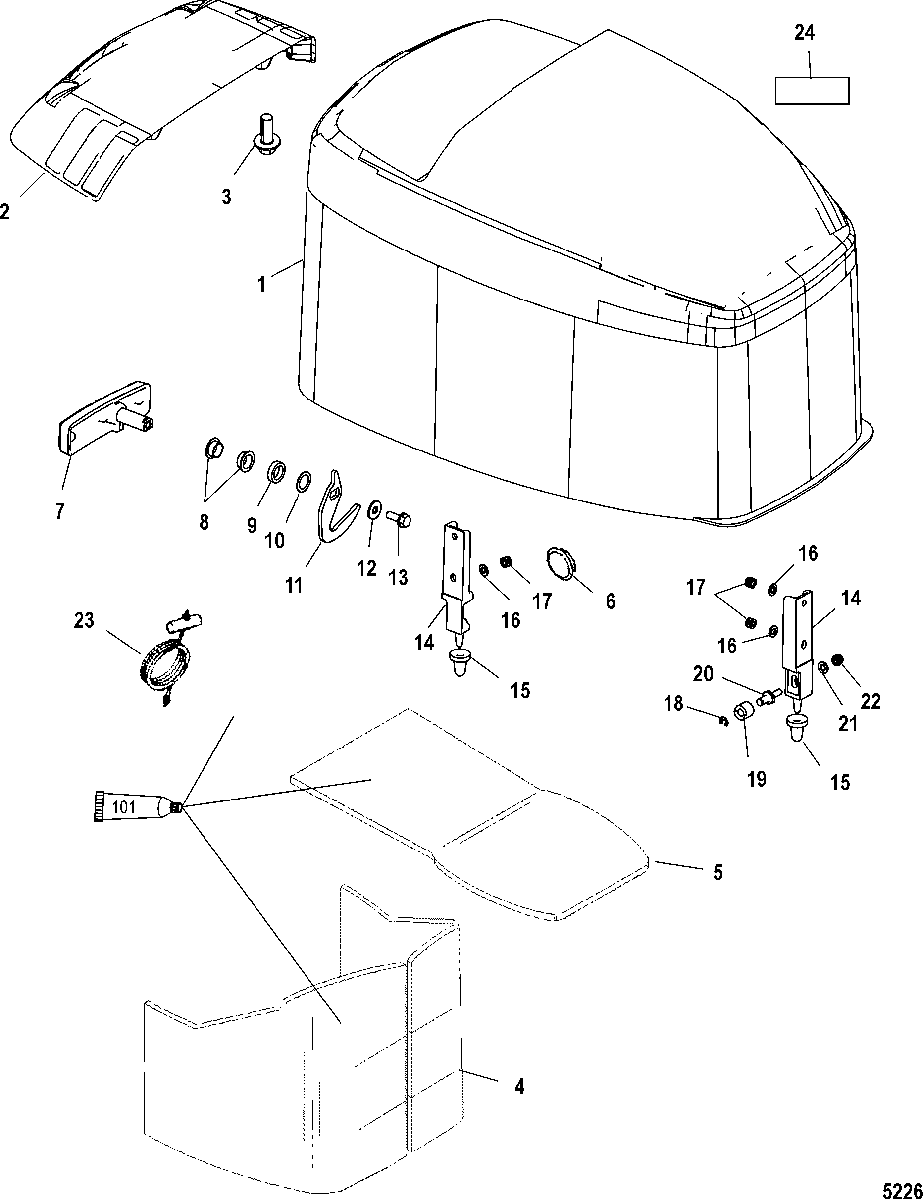

Top Cowl для Mercury - XR-6 0G960500 THRU 1B226999
-
№АртикулНазвание
-
1100-8M0107145 TOP COWL ASSEMBLY, Black
(BLACK)TOP COWL ASSEMBLY, Black
(BLACK) -
14021-827328T8 TOP COWL ASSEMBLY, Silver
(SILVER)TOP COWL ASSEMBLY, Silver
(SILVER) -
2821256T03 INLET, Air - Black
(BLACK)INLET, Air - Black
(BLACK) -
2821256T2 INLET, Air - Silver
(SILVER)INLET, Air - Silver
(SILVER) -
310-82130016 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
4828344A02 SOUND BLANKET KITSOUND BLANKET KIT
-
5NSS NOT SOLD SEPARATE, Sound Blanket-TopNOT SOLD SEPARATE, Sound Blanket-Top
-
619-823865 CAP PLUGCAP PLUG
-
7831207A16 HANDLE ASSEMBLY, BlackHANDLE ASSEMBLY, Black
-
823-812707 BUSHINGBUSHING
-
923-831214 SPACERSPACER
-
1013-12134 WASHER, WaveWASHER, Wave
-
118M0001081 CAM, Latch Shaft
SN# 0T800999 & BelowCAM, Latch Shaft
SN# 0T800999 & Below -
118M0001081 CAM
SN# 0T801000 & UpCAM
SN# 0T801000 & Up -
1212-4002316 WASHERWASHER
-
1310-1993716 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
148M0036792 BRACKET, FrontBRACKET, Front
-
15815477 BUMPER, LatchBUMPER, Latch
-
1612-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
1711-401366 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
1853-8237951 RING, RetainingRING, Retaining
-
19815263 ROLLERROLLER
-
208155381 PIN, RollPIN, Roll
-
2112-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
2211-401366 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
2347341A11 ROPE AND HANDLE KIT, Manual Starting (FOR MANUAL STARTING)ROPE AND HANDLE KIT, Manual Starting (FOR MANUAL STARTING)
-
24NSS NOT SOLD SEPARATE, Decal-Starting ProcedureNOT SOLD SEPARATE, Decal-Starting Procedure
