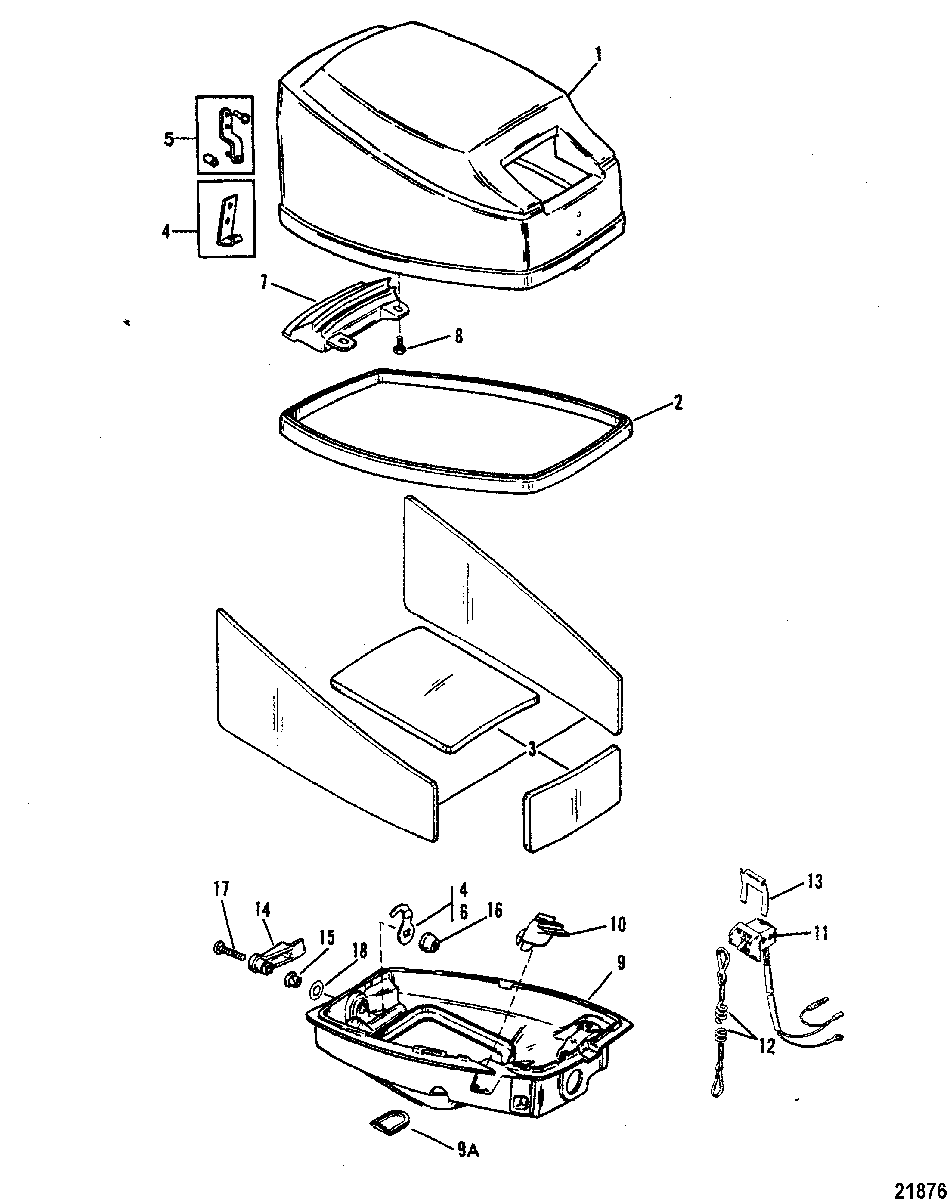

Cowls для Mercury - XR10 0D038000 THRU 0D279998
-
№АртикулНазвание
-
12191-9420T10 TOP COWL ASSEMBLY
(Black)TOP COWL ASSEMBLY
(Black) -
12191-8M0094069 TOP COWL ASSEMBLY
(Gray)TOP COWL ASSEMBLY
(Gray) -
28M0043151 SEALSEAL
-
313691A02 SOUND BLANKET KITSOUND BLANKET KIT
-
416471A1 LATCH, Cowl (W/O ROLLER-SEE REF #4)LATCH, Cowl (W/O ROLLER-SEE REF #4)
-
5817104A3 LATCH ASSEMBLY, Cowl (W/ROLLER-SEE REF.#5)LATCH ASSEMBLY, Cowl (W/ROLLER-SEE REF.#5)
-
6180402 LATCH HOOKLATCH HOOK
-
711354 SHIELD, REAR
(Black)SHIELD, REAR
(Black) -
712873T SHIELD, REAR
(Gray)SHIELD, REAR
(Gray) -
810-400018 SCREW, (M5 x 12), REAR SHIELDSCREW, (M5 x 12), REAR SHIELD
-
92192-9204A1 BOTTOM COWL (XR10/SEA PRO 10)BOTTOM COWL (XR10/SEA PRO 10)
-
92192-9204A2 BOTTOM COWL (MAGNUM 10)BOTTOM COWL (MAGNUM 10)
-
92192-9204A2 BOTTOM COWL (MARATHON 10)BOTTOM COWL (MARATHON 10)
-
9A15061001 PLUGPLUG
-
1012154 PLUG, BOTTOM COWLPLUG, BOTTOM COWL
-
1187-11083A6 SWITCH ASSEMBLY, StopSWITCH ASSEMBLY, Stop
-
128M0092850 LANYARD ASSEMBLYLANYARD ASSEMBLY
-
138M0032846 RETAINER, Brass, STOP SWITCHRETAINER, Brass, STOP SWITCH
-
1444461A1 LEVER, Cowl LatchLEVER, Cowl Latch
-
1523-76470 BUSHING, COWL LATCH LEVERBUSHING, COWL LATCH LEVER
-
1611394 SPACER, LATCHSPACER, LATCH
-
1710-40019130 SCREW, (M6 x 30), LATCH AND LEVERSCREW, (M6 x 30), LATCH AND LEVER
-
1710-40019131 SCREW, (M6 x 35), LATCH AND LEVERSCREW, (M6 x 35), LATCH AND LEVER
-
1813-69708 WAVE WASHER, LATCH AND LEVER SCREWWAVE WASHER, LATCH AND LEVER SCREW
