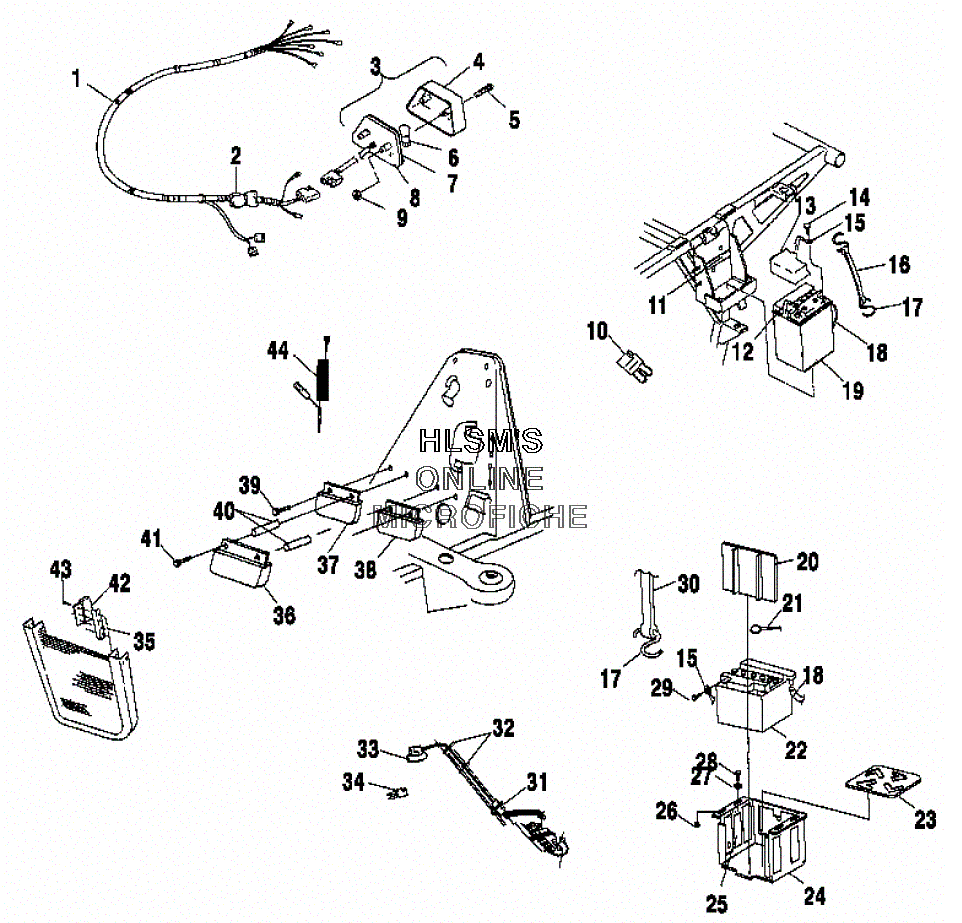

ELECTRICAL W/ TAILLIGHT ASSY. для Polaris DIESEL (A00CH46CA) - 2000 года выпуска
-
№АртикулНазвание
-
12460763 HARNESS, MAIN DIESELHARNESS, MAIN DIESEL
-
22200593 CIRCUIT BREAKER KIT, 20 AMPCIRCUIT BREAKER KIT, 20 AMP
-
32432034 TAIL LIGHT ASSY. (INCL. 4-9)TAIL LIGHT ASSY. (INCL. 4-9)
-
44032046 LENS, TAILLIGHTLENS, TAILLIGHT
-
54032029 SCREW, TAILLIGHTSCREW, TAILLIGHT
-
64030043 BULB, TAILLIGHTBULB, TAILLIGHT
-
74032045 GASKET, TAILLIGHTGASKET, TAILLIGHT
-
84032064 BACKING, TAILLIGHTBACKING, TAILLIGHT
-
97670054 NUT, PUSH-ONNUT, PUSH-ON
-
102460731 HARNESS, JUMPER IM TO 3F .180HARNESS, JUMPER IM TO 3F .180
-
115810290 PAD, BATTERYPAD, BATTERY
-
124010148 CABLE, BATTERY (RED)CABLE, BATTERY (RED)
-
135431769 COVER, BATTERYCOVER, BATTERY
-
142200360 BOLT, BATTERY, KIT (LONG)BOLT, BATTERY, KIT (LONG)
-
154010199 CABLE, BATTERY KITCABLE, BATTERY KIT
-
165410424 STRAP, BATTERY HOLDDOWNSTRAP, BATTERY HOLDDOWN
-
177010032 HOOK, BATTERY H/DHOOK, BATTERY H/D
-
185432077 TUBE, BATTERY VENT (OPT)TUBE, BATTERY VENT (OPT)
-
194140006 BATTERYBATTERY
-
205432840 RETAINER, BATTERYRETAINER, BATTERY
-
214010197 CABLE, BATTERY (RED)CABLE, BATTERY (RED)
-
224140012 BATTERY, 30 AMPBATTERY, 30 AMP
-
235811623 PAD, BATTERYPAD, BATTERY
-
241040665-067 BOX, BATTERY (BLACK)BOX, BATTERY (BLACK)
-
255811651 PAD, BATTERY SIDEPAD, BATTERY SIDE
-
267542122 NUT, LOCKNUT, LOCK
-
277558301 WASHERWASHER
-
287512130 BOLTBOLT
-
292201155 BOLT, BATTERY KIT (30 AMP)BOLT, BATTERY KIT (30 AMP)
-
305411456 STRAP, BATTERY HOLD DOWNSTRAP, BATTERY HOLD DOWN
-
317080492 STRAP, WEATHER RESIST. (BLACK)STRAP, WEATHER RESIST. (BLACK)
-
327080138 STRAP PANDUITSTRAP PANDUIT
-
332410022 POWER ASSY, 12VPOWER ASSY, 12V
-
342460442 PIGTAIL, POWERPIGTAIL, POWER
-
355131036 HEATSINK RECT.HEATSINK RECT.
-
364010215 ANTI-REV. ROTATIONAL MOD LR500ANTI-REV. ROTATIONAL MOD LR500
-
374060202 CUTOFF, LR58 12VDC (ALT.OPR)CUTOFF, LR58 12VDC (ALT.OPR)
-
384010236 LIMITER-RPM, 270HZ LR406LIMITER-RPM, 270HZ LR406
-
397512024 SCREWSCREW
-
405020864 SPACERSPACER
-
417512025 SCREWSCREW
-
424010182 RECTIFIER, REGULATOR LR-300RECTIFIER, REGULATOR LR-300
-
437512018 SCREWSCREW
-
442460741 HARNESS, RESISTOR (333 OHM)HARNESS, RESISTOR (333 OHM)
