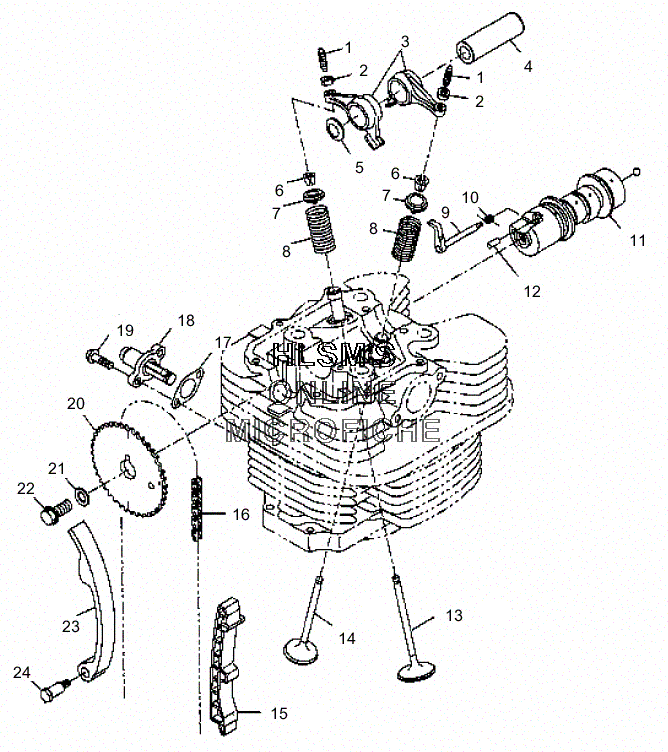

CAMSHAFT W/ VALVE ASSY. для Polaris MAGNUM 325 2X4 (A00CB32AA) - 2000 года выпуска
-
№АртикулНазвание
-
13084911 SCREW, ADJ.SCREW, ADJ.
-
23084912 NUTNUT
-
33084910 ROCKERARM ASSEMBLY, INTAKE (INCL. 1,2)ROCKERARM ASSEMBLY, INTAKE (INCL. 1,2)
-
43086442 SHAFT, ROCKERSHAFT, ROCKER
-
53085836 WASHER, WAVEWASHER, WAVE
-
63084908 COLLET, VALVECOLLET, VALVE
-
73084907 RETAINER, VALVE SPRINGRETAINER, VALVE SPRING
-
83084906 SPRING, VALVESPRING, VALVE
-
93086439 LEVER, RELEASELEVER, RELEASE
-
103086804 SPRING, RETURNSPRING, RETURN
-
113086803 CAMSHAFT, COMPLETE (INCL. 9,10,12)CAMSHAFT, COMPLETE (INCL. 9,10,12)
-
123084899 PIN, DOWELPIN, DOWEL
-
133085778 VALVE, INTAKEVALVE, INTAKE
-
143086441 VALVE, EXHAUSTVALVE, EXHAUST
-
153086445 GUIDE, CHAINGUIDE, CHAIN
-
163086444 CHAIN, TIMINGCHAIN, TIMING
-
173086448 GASKET, TENSIONERGASKET, TENSIONER
-
183086493 TENSIONER, ASSEMBLYTENSIONER, ASSEMBLY
-
193083361 BOLT AND WASHER ASSEMBLYBOLT AND WASHER ASSEMBLY
-
203086443 SPROCKET 2SPROCKET 2
-
213083663 WASHERWASHER
-
223086449 BOLT, FLANGEBOLT, FLANGE
-
233086446 LEVER, COMPLETELEVER, COMPLETE
-
243084924 BOLT, PIVOT LEVERBOLT, PIVOT LEVER
