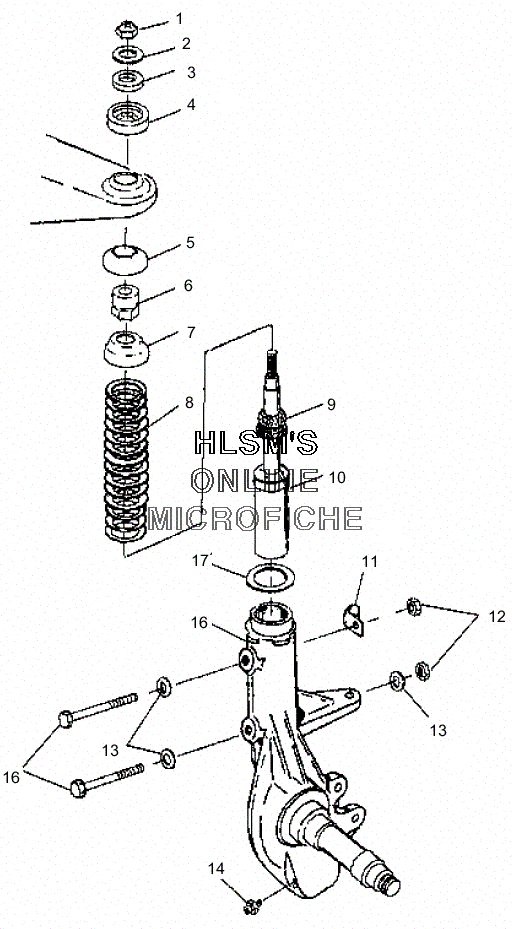

SUSPENSION - FRONT STRUT для Polaris MAGNUM 325 2X4 (A00CB32CA) - 2000 года выпуска
-
№АртикулНазвание
-
17547104 NUTNUT
-
27555749 WASHERWASHER
-
35810291 SPACER, RUBBERSPACER, RUBBER
-
45432872 PIVOT, BALL TOPPIVOT, BALL TOP
-
55432871 PIVOT, BALL BOTTOMPIVOT, BALL BOTTOM
-
65132062 SPACER, STRUT (1/2-20)SPACER, STRUT (1/2-20)
-
75243364 RETAINER, SPRING STRUTRETAINER, SPRING STRUT
-
87041375-067 SPRING, COIL FRONT SHOCK (BLACK)SPRING, COIL FRONT SHOCK (BLACK)
-
95411608 BUMPER, MCU (17.80MM I.D.)BUMPER, MCU (17.80MM I.D.)
-
107041761 STRUT, FRONT (18X30MM 153.8MM ST)STRUT, FRONT (18X30MM 153.8MM ST)
-
117080573 CLAMP, RUBBER COATED (.562)CLAMP, RUBBER COATED (.562)
-
127542303 NUT, FLEX LOCNUT, FLEX LOC
-
137558402 WASHER, STEELWASHER, STEEL
-
147080306 FITTING, LUBE W/BALL CK.FITTING, LUBE W/BALL CK.
-
157515339 BOLTBOLT
-
165131039 SUPPORT, STRUT/SPINDLE (LEFT)SUPPORT, STRUT/SPINDLE (LEFT)
-
165131040 SUPPORT, STRUT/SPINDLE (RIGHT)SUPPORT, STRUT/SPINDLE (RIGHT)
-
175211115 WASHER, SPRING RETAINERWASHER, SPRING RETAINER
