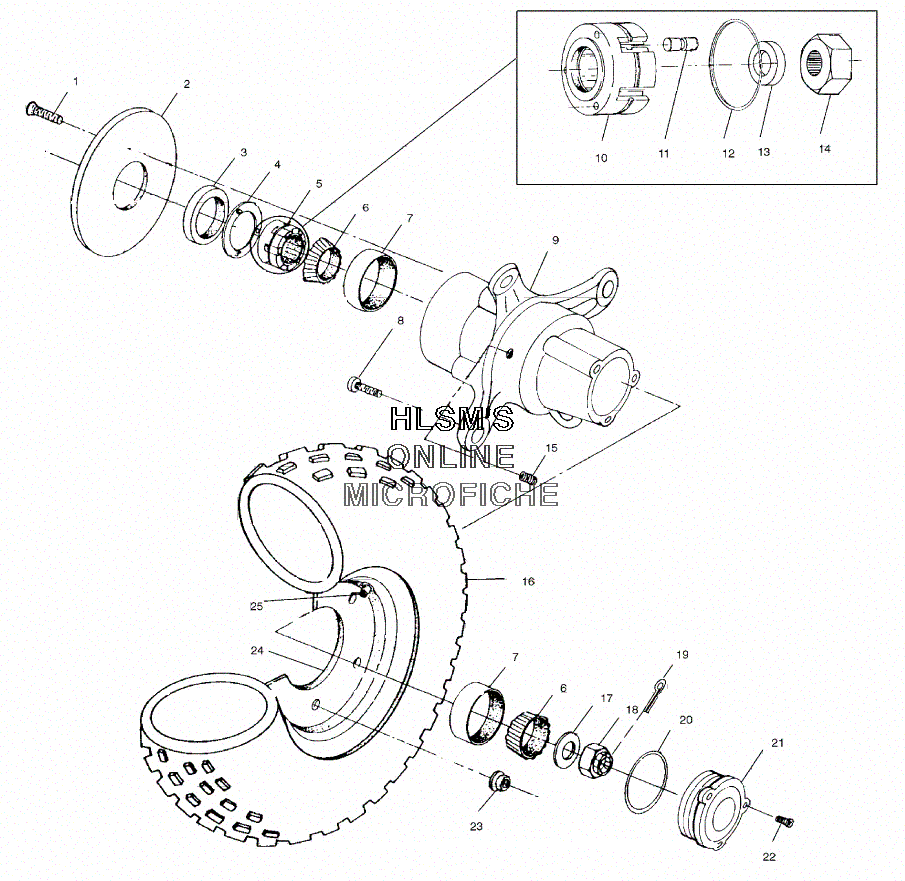

WHEEL - FRONT для Polaris MAGNUM 325 4X4 (A00CD32AA) - 2000 года выпуска
-
№АртикулНазвание
-
17512325 BOLTBOLT
-
25211869 DISC, BRAKE NOTCHEDDISC, BRAKE NOTCHED
-
33610019 SEAL, FRONT HUBSEAL, FRONT HUB
-
45211148 PLATE, ARMATUREPLATE, ARMATURE
-
51520281 CLUTCH,FR HUB E/MCLUTCH,FR HUB E/M
-
63554506 BEARING, TAPER. ROLL.CONEBEARING, TAPER. ROLL.CONE
-
73554507 BEARING, TAPER, ROLL CUPBEARING, TAPER, ROLL CUP
-
87515523 STUDSTUD
-
91520243 HUB ASSY., SHRT W/BEARING RACE (3 LOBE) (INCL.3,7,8)HUB ASSY., SHRT W/BEARING RACE (3 LOBE) (INCL.3,7,8)
-
103250028 CAGE, ROLLCAGE, ROLL
-
113250010 ROLLSROLLS
-
123250032 SPRING, GARTERSPRING, GARTER
-
131321814 SPACERSPACER
-
143250030 CAMCAM
-
157052045 PLUG, PIPEPLUG, PIPE
-
165411709 TIRE, TITAN (24X8-12)TIRE, TITAN (24X8-12)
-
177556004 WASHERWASHER
-
187542810 NUT, SLOTTEDNUT, SLOTTED
-
197661401 COTTER PINCOTTER PIN
-
205410470 O RINGO RING
-
215432611 CAP, HUB (3-LOBE) AWDCAP, HUB (3-LOBE) AWD
-
227512027 SCREWSCREW
-
237542459 NUT, FLANGEDNUT, FLANGED
-
241520269-117 RIM, FRONT (SILVER)RIM, FRONT (SILVER)
-
251525017 VALVE, RIMVALVE, RIM
