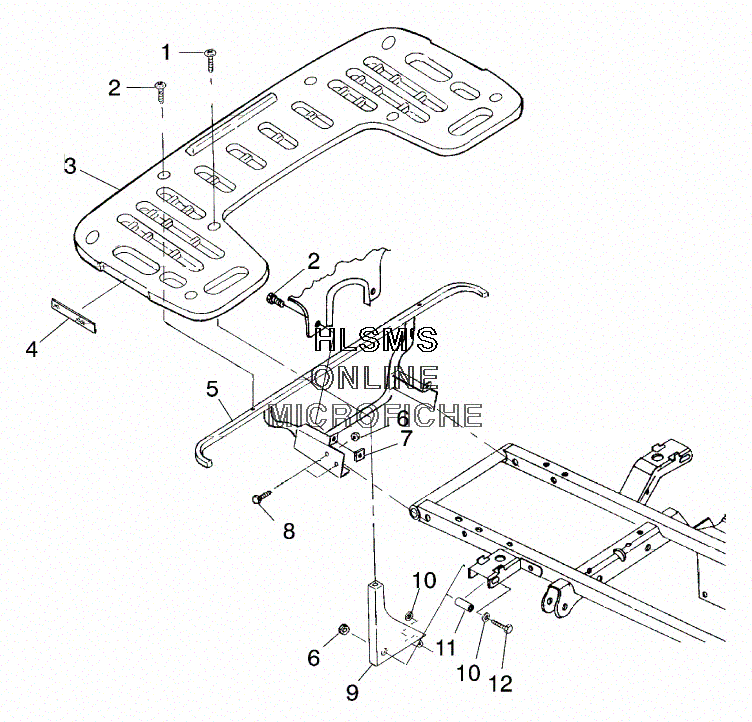

RACK AND BUMPER MOUNTING - REAR для Polaris MAGNUM 325 4X4 (A00CD32CA) - 2000 года выпуска
-
№АртикулНазвание
-
17517685 SCREWSCREW
-
27517686 SCREWSCREW
-
32670174 RACK, REAR ASSY. (BLACK) (INCL. REF. 4 AND WARNING DECAL)RACK, REAR ASSY. (BLACK) (INCL. REF. 4 AND WARNING DECAL)
-
42670070 REFLECTOR REDREFLECTOR RED
-
51040490-067 SUPPORT, REAR RACK (BLACK)SUPPORT, REAR RACK (BLACK)
-
67542324 NUTNUT
-
77670096 NUTNUT
-
87512329 BOLTBOLT
-
91040524-067 MOUNT, FRONT REAR RACK (LEFT/BLACK)MOUNT, FRONT REAR RACK (LEFT/BLACK)
-
91040525-067 MOUNT, FRONT REAR RACK (RIGHT/BLACK)MOUNT, FRONT REAR RACK (RIGHT/BLACK)
-
107558402 WASHER STEELWASHER STEEL
-
115333332-067 SPACERSPACER
-
127515385 SCREWSCREW
