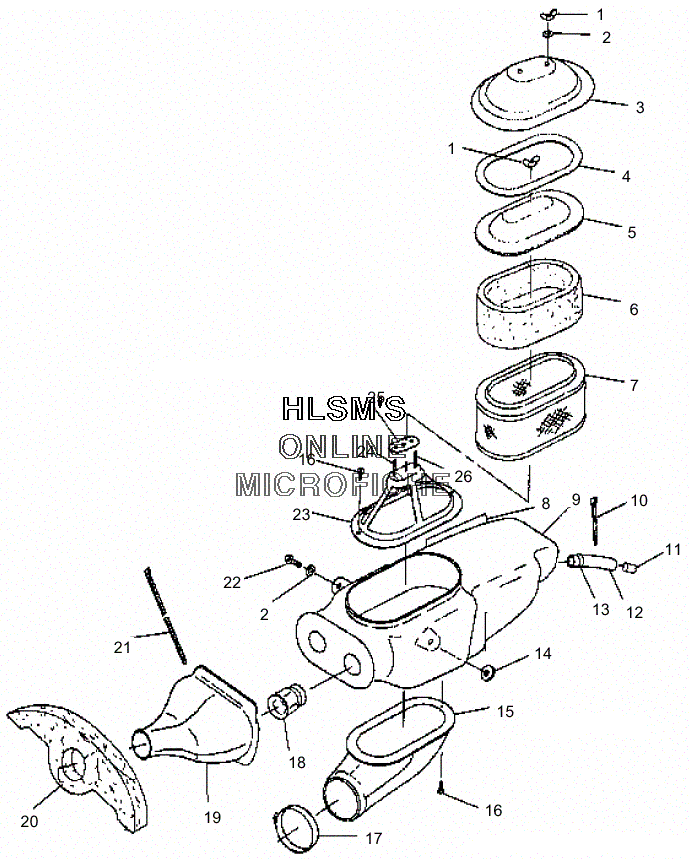

AIR BOX ASSY. для Polaris SCRAMBLER 2X4 (A00BA38CA) - 2000 года выпуска
-
№АртикулНазвание
-
17542127 NUT, WINGNUT, WING
-
27558301 WASHERWASHER
-
35240424 COVER, AIR BOXCOVER, AIR BOX
-
45810948 GASKET, COVERGASKET, COVER
-
55240336 COVER, AIR BOXCOVER, AIR BOX
-
65811099 FOAM, PRECLEANER SLEEVEFOAM, PRECLEANER SLEEVE
-
71253118 FILTER, AIRFILTER, AIR
-
85810966 FOIL, AIRBOXFOIL, AIRBOX
-
95432883 BOX, AIR SILENCERBOX, AIR SILENCER
-
107080483 STRAP, PANDUIT (4 IN.)STRAP, PANDUIT (4 IN.)
-
117080487 CAP, PLUGCAP, PLUG
-
128450051-600 HOSE (25FT.X 3/8''I.D.)HOSE (25FT.X 3/8''I.D.)
-
137080476 CLAMP, HOSE S.S.CLAMP, HOSE S.S.
-
147555932 WASHER, NYLONWASHER, NYLON
-
155411413 BOOT, CARBBOOT, CARB
-
167511881 SCREWSCREW
-
177080643 CLAMP, NOTCHEDCLAMP, NOTCHED
-
185431698 VENTURA, INTAKEVENTURA, INTAKE
-
195410934 BOOT, AIR SILENCERBOOT, AIR SILENCER
-
205811102 FOAM, COLLARFOAM, COLLAR
-
217080598 STRAP, CABLESTRAP, CABLE
-
227515180 SCREWSCREW
-
235432607 STAND, FILTERSTAND, FILTER
-
247515150 STUDSTUD
-
255811012 SEAL, FOAM AIRBOXSEAL, FOAM AIRBOX
-
267515151 STUDSTUD
