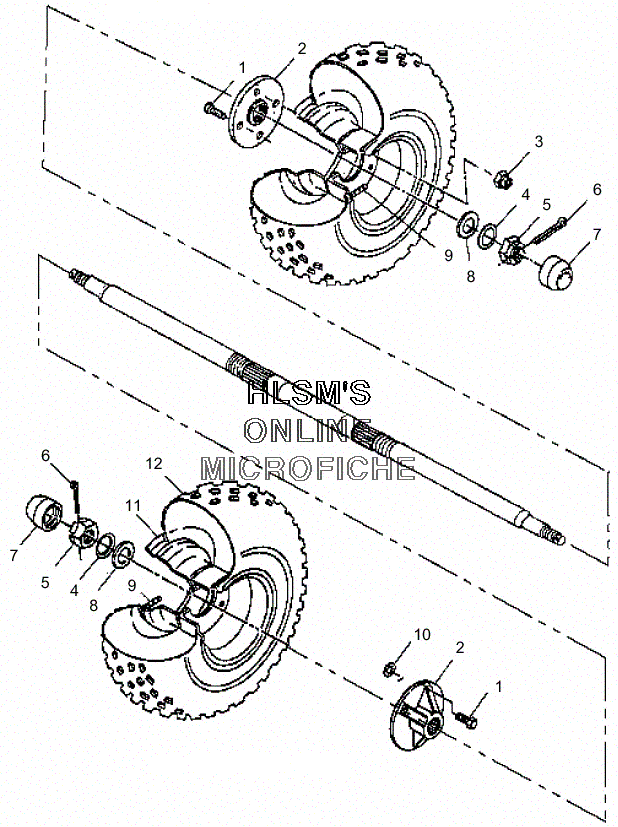

WHEEL - REAR для Polaris SCRAMBLER 2X4 (A00BA38CA) - 2000 года выпуска
-
№АртикулНазвание
-
17512673 BOLT, WHEELBOLT, WHEEL
-
22200341 KIT, HUB (INCL. 1,4,6,10)KIT, HUB (INCL. 1,4,6,10)
-
37542714 NUT, WHEELNUT, WHEEL
-
47555796 WASHER, CONEWASHER, CONE
-
57543005 NUT, CASTLENUT, CASTLE
-
67661404 PIN, COTTERPIN, COTTER
-
75411164 DUSTCOVER, HUBDUSTCOVER, HUB
-
87555745 WASHERWASHER
-
91525017 VALVE, RIMVALVE, RIM
-
107670081 PUSHNUT, BOLTPUSHNUT, BOLT
-
111520183-117 RIM, REAR (8.5/10) (SILVER)RIM, REAR (8.5/10) (SILVER)
-
125411266 TIRE, TITAN (22X11-10)TIRE, TITAN (22X11-10)
