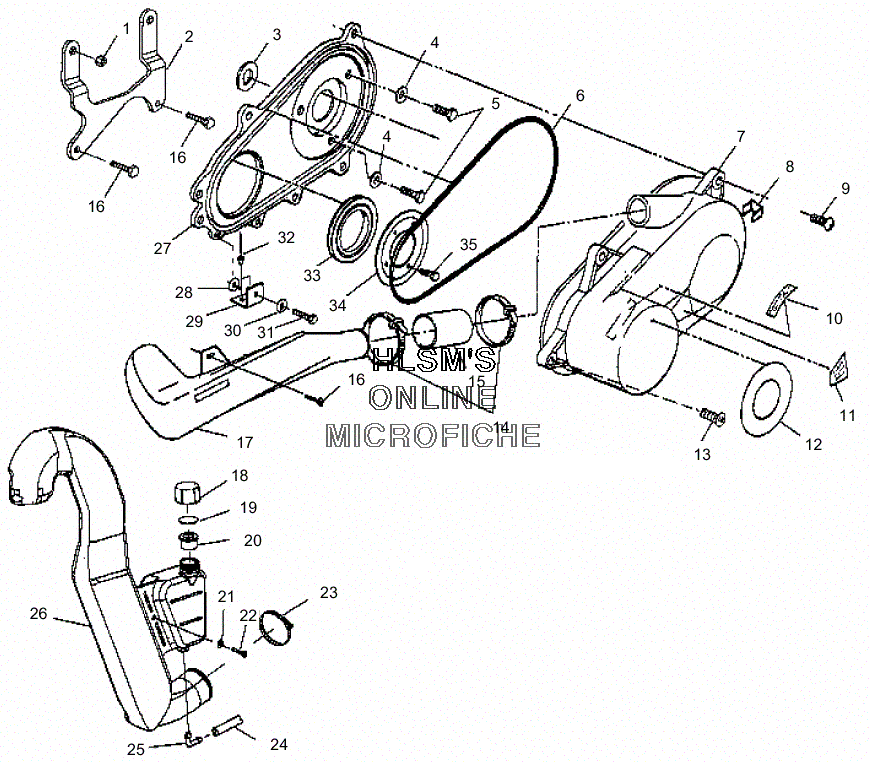

CLUTCH COVER для Polaris SCRAMBLER 400 (A00BG38CA) - 2000 года выпуска
-
№АртикулНазвание
-
17547067 NUTSERT, HEXNUTSERT, HEX
-
25242208-067 BRACKET, CLUTCH (LOWER/BLACK)BRACKET, CLUTCH (LOWER/BLACK)
-
35411554 SEAL, CLUTCH COVER (INNER)SEAL, CLUTCH COVER (INNER)
-
47555748 WASHERWASHER
-
57517542 SCREWSCREW
-
65521301 SEAL, CLUTCHCOVERSEAL, CLUTCHCOVER
-
75433542 COVER, CLUTCH (FRONT) (ST-801HS)COVER, CLUTCH (FRONT) (ST-801HS)
-
87670051 CLIP, CLUTCH COVERCLIP, CLUTCH COVER
-
97512093 SCREWSCREW
-
107074946 DECALDECAL
-
117077377 DECALDECAL
-
127074782 DECAL, AUTO.TRANSMISSIONDECAL, AUTO.TRANSMISSION
-
137512094 SCREWSCREW
-
147080492 STRAP, WEATHER RESIST (BLACK)STRAP, WEATHER RESIST (BLACK)
-
155410421 BOOT, CLUTCH INTAKEBOOT, CLUTCH INTAKE
-
167512232 BOLTBOLT
-
175432615 DUCT, AIR OUT CLUTCHDUCT, AIR OUT CLUTCH
-
185430743 CAP, OVERFLOWCAP, OVERFLOW
-
195810279 GASKETGASKET
-
205431895 CAP, PLUG 9X (GRN) FLEX TEMPCAP, PLUG 9X (GRN) FLEX TEMP
-
217555783 WASHERWASHER
-
227512018 SCREWSCREW
-
237080511 CLAMP, NARROW BANDCLAMP, NARROW BAND
-
248450003-1525 FUEL LINE (1/4 ID 1525 CM.) (OPT)FUEL LINE (1/4 ID 1525 CM.) (OPT)
-
257052065 FITTING, 90 DEGREEFITTING, 90 DEGREE
-
265433342 DUCT, CLUTCH INLETDUCT, CLUTCH INLET
-
272201159 COVER, CLUTCH INNER (INCL. 9,13,31,33)COVER, CLUTCH INNER (INCL. 9,13,31,33)
-
287555932 WASHER, NYLONWASHER, NYLON
-
295242693-067 BRACKET, CLUTCH COVER (BLACK)BRACKET, CLUTCH COVER (BLACK)
-
307555935 WASHERWASHER
-
317512098 SCREWSCREW
-
327661638 RIVET, INTERLOCKRIVET, INTERLOCK
-
335410575 SEAL, COVER CASESEAL, COVER CASE
-
345222446-067 BRACKET, RETAINER SEALBRACKET, RETAINER SEAL
