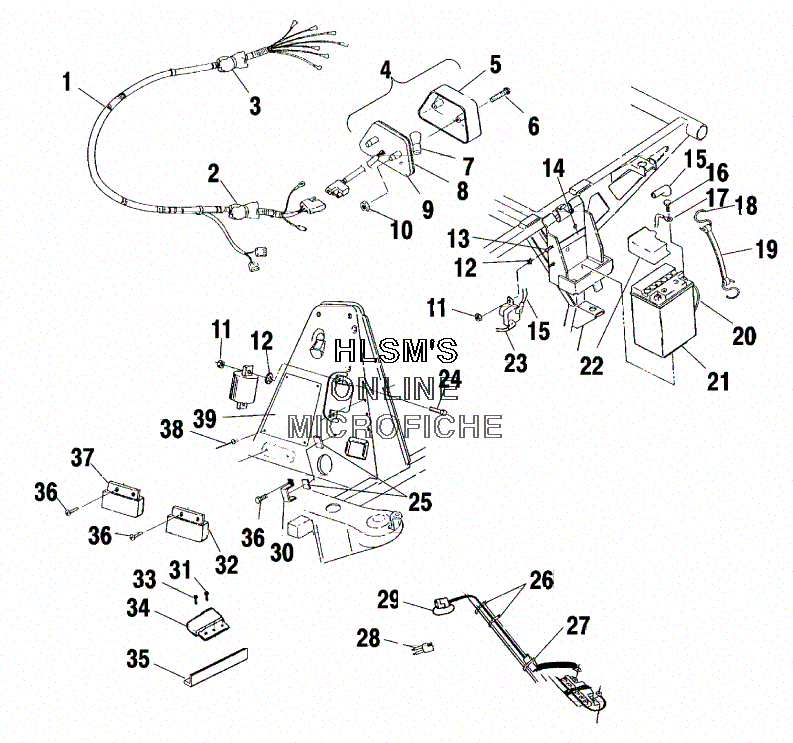

ELECTRICAL W/ TAILLIGHT ASSY. для Polaris SPORTSMAN 335 (A00CH33AA) (OLIVE GREEN) - 2000 года выпуска
-
№АртикулНазвание
-
12460544 HARNESS, MAIN WIREHARNESS, MAIN WIRE
-
22200593 CIRCUT BREAKER, 20 AMPCIRCUT BREAKER, 20 AMP
-
32201795 CIRCUT BREAKER KIT, FANCIRCUT BREAKER KIT, FAN
-
42432034 TAILLIGHT ASSY. (INCL. 5-10)TAILLIGHT ASSY. (INCL. 5-10)
-
54032046 LENS, TAILLIGHTLENS, TAILLIGHT
-
64032029 SCREW, TAILLIGHTSCREW, TAILLIGHT
-
74030043 BULB, TAILLIGHTBULB, TAILLIGHT
-
84032045 GASKET, TAILLIGHTGASKET, TAILLIGHT
-
94032064 BACKING, TAILLIGHTBACKING, TAILLIGHT
-
107670054 NUT, PUSH-ONNUT, PUSH-ON
-
117541925 NUTNUT
-
127571602 WASHERWASHER
-
137512027 SCREWSCREW
-
145810290 PAD, BATTERYPAD, BATTERY
-
154010094 CABLE, BATT/SOLENOID (RED)CABLE, BATT/SOLENOID (RED)
-
162200361 BOLT, BATTERY KIT(SHORT)BOLT, BATTERY KIT(SHORT)
-
174010095 CABLE, BATTERY/ENGINE (BLACK)CABLE, BATTERY/ENGINE (BLACK)
-
187010032 HOOK, BATTERY HOLDDOWNHOOK, BATTERY HOLDDOWN
-
195410424 STRAP, BATTERY HOLDDOWNSTRAP, BATTERY HOLDDOWN
-
205432077 TUBE, BATTERY VENT (OPT)TUBE, BATTERY VENT (OPT)
-
214140006 BATTERYBATTERY
-
225431769 COVER, BATTERYCOVER, BATTERY
-
234010093 CABLE, SOL/STARTERCABLE, SOL/STARTER
-
247512007 SCREWSCREW
-
255810455 PAD, RACK MOUNTPAD, RACK MOUNT
-
267080138 STRAP, PANDUITSTRAP, PANDUIT
-
277080492 STRAP, WEATHER-RESIST (BLACK)STRAP, WEATHER-RESIST (BLACK)
-
282460442 PIGTAIL, POWERPIGTAIL, POWER
-
292410022 POWER ASSY, 12V (BUILT BEFORE 9/27/99)POWER ASSY, 12V (BUILT BEFORE 9/27/99)
-
305241416 BRACKET, CDIBRACKET, CDI
-
317512018 SCREWSCREW
-
324010164 RELAY, SOLID STATE (LR-60)RELAY, SOLID STATE (LR-60)
-
337512017 SCREWSCREW
-
344060191 RECTIFIER/REGULATOR, LR-35RECTIFIER/REGULATOR, LR-35
-
355131818 HEATSINK, RECT.HEATSINK, RECT.
-
367512024 SCREWSCREW
-
374060205 LIMITER, RPM (LR-83) HUB GROUNDLIMITER, RPM (LR-83) HUB GROUND
-
387621336 RIVETRIVET
-
394040064 BOARD, TERMINAL 150 ALTBOARD, TERMINAL 150 ALT
