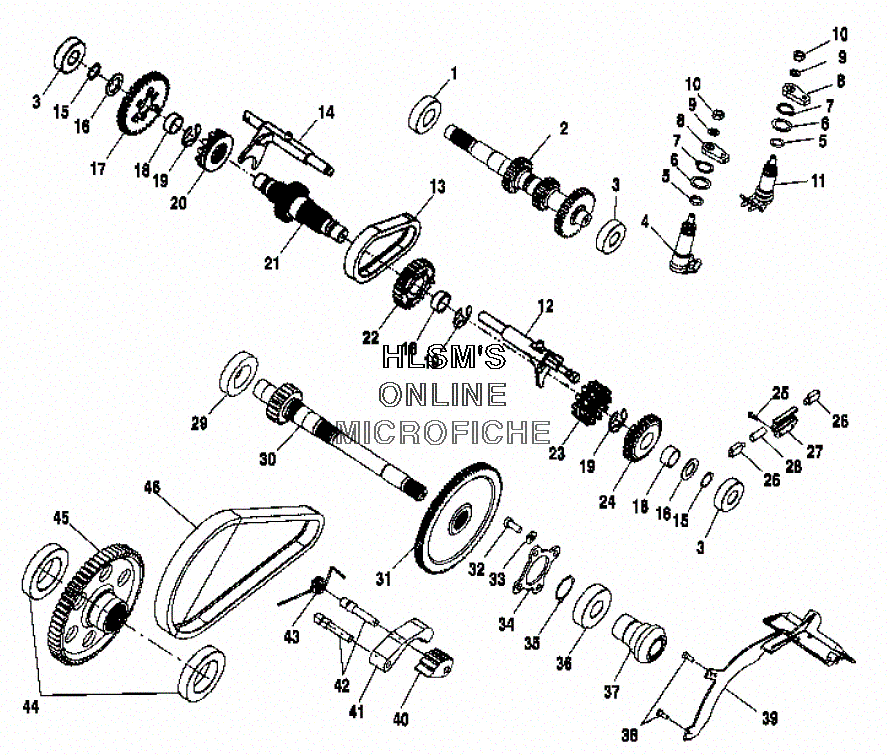

GEARCASE - INTERNAL COMPONENTS для Polaris SPORTSMAN 335 (A00CH33AC) (OLVIVE GREEN) - 2000 года выпуска
-
№АртикулНазвание
-
1341331 GEARCASE, SHAFT PRD (INCL. 1-46 AND 1-8,11-36)GEARCASE, SHAFT PRD (INCL. 1-46 AND 1-8,11-36)
-
13233019 BEARINGBEARING
-
23233571 SHAFT, INPUT HCR HLR (DSL) (15 TEETH)SHAFT, INPUT HCR HLR (DSL) (15 TEETH)
-
33233018 BEARINGBEARING
-
43233661 SHAFT-SHIFTSHAFT-SHIFT
-
53233548 O-RINGO-RING
-
63233040 WASHERWASHER
-
73233045 RING, RETAININGRING, RETAINING
-
83233153 BELLCRANKBELLCRANK
-
93233054 WASHERWASHER
-
103233055 NUTNUT
-
113233662 SHAFT, SHIFTSHAFT, SHIFT
-
123233664 FORK, SHIFT H/RFORK, SHIFT H/R
-
133233036 CHAIN, SILENT 34PCHAIN, SILENT 34P
-
143233663 FORK, SHIFT LOWFORK, SHIFT LOW
-
153233177 RING, RETAININGRING, RETAINING
-
163233176 WASHERWASHER
-
173233745 GEAR, 12PT (36 TEETH)GEAR, 12PT (36 TEETH)
-
183233718 BEARING, NDL SPLIT CAGEBEARING, NDL SPLIT CAGE
-
193233720 RING, RET-RING EXTERNALRING, RET-RING EXTERNAL
-
203233732 DOG, ENGAGEMENT LOWDOG, ENGAGEMENT LOW
-
213233746 SHAFT, REVERSE (26 TEETH)SHAFT, REVERSE (26 TEETH)
-
223233719 SPROCKET (24 TEETH)SPROCKET (24 TEETH)
-
233233743 DOG, ENGAGE HIGH/REV 12PTDOG, ENGAGE HIGH/REV 12PT
-
243233744 GEAR, 12PT (30 TEETH)GEAR, 12PT (30 TEETH)
-
253233033 SCREW, TAPPING Q/LOCK WASHERSCREW, TAPPING Q/LOCK WASHER
-
263233308 PIN, INTERLOCKPIN, INTERLOCK
-
273233309 BRACKET, INTERLOCKBRACKET, INTERLOCK
-
283233189 SPRINGSPRING
-
293233020 BEARINGBEARING
-
303233715 SHAFT, CENTER DRIVESHAFT, CENTER DRIVE
-
313233566 GEAR (103 TEETH)GEAR (103 TEETH)
-
323233262 SCREWSCREW
-
337552901 LOCK WASHERLOCK WASHER
-
343233263 COVER, CENTER DRIVE BEARINGCOVER, CENTER DRIVE BEARING
-
353233364 RING, RETAININGRING, RETAINING
-
363233265 BEARING, BALLBEARING, BALL
-
373233365 GEAR, SPIRAL BEVEL SNORKEL (16 TEETH)GEAR, SPIRAL BEVEL SNORKEL (16 TEETH)
-
383233282 SCREWSCREW
-
393233669 DEFLECTOR, OILDEFLECTOR, OIL
-
403233434 CAM, CHAIN TENSIONERCAM, CHAIN TENSIONER
-
413233433 SHOE, CHAIN TENSIONERSHOE, CHAIN TENSIONER
-
423233432 PIN, DOWELPIN, DOWEL
-
433233431 SPRING, TORSIONSPRING, TORSION
-
443233268 BEARING, BALLBEARING, BALL
-
453233670 SPOCKET (60/36 TEETH)SPOCKET (60/36 TEETH)
-
463233430 CHAIN, SILENTCHAIN, SILENT
