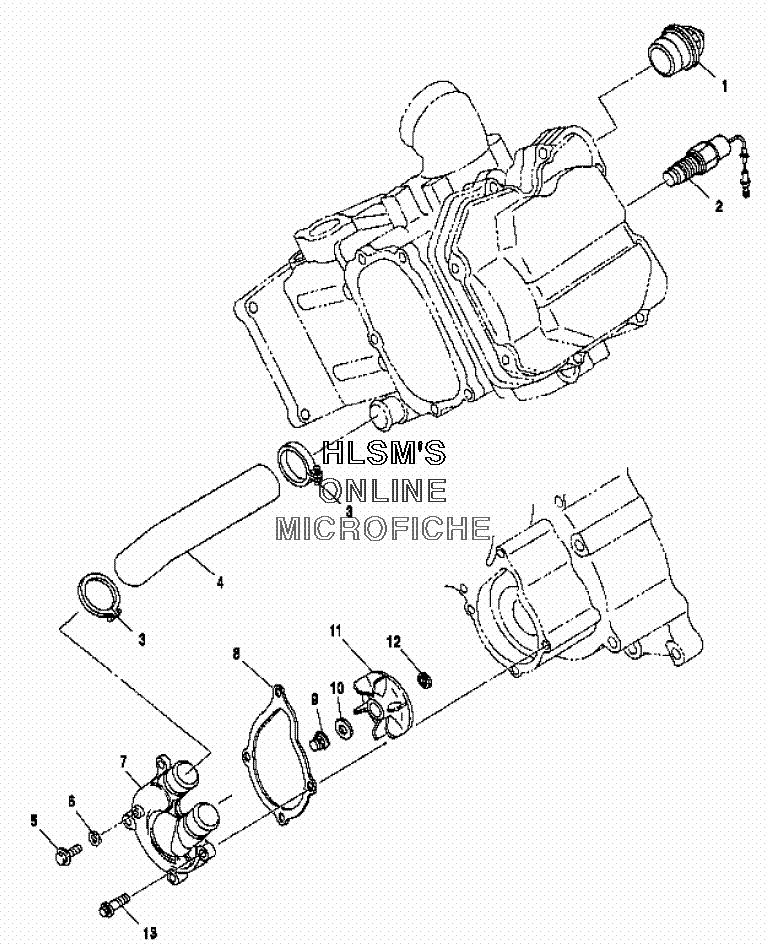

WATER PUMP для Polaris SPORTSMAN 500 (A00CH50AB) (PORCHE RED) - 2000 года выпуска
-
№АртикулНазвание
-
13084940 THERMOSTATTHERMOSTAT
-
23085352 SWITCH, THERMOSTATSWITCH, THERMOSTAT
-
33084191 CLAMP, HOSECLAMP, HOSE
-
43085857 HOSE, MAINHOSE, MAIN
-
53085359 BOLT, FLANGEBOLT, FLANGE
-
63082758 WASHER, FLATWASHER, FLAT
-
73085351 COVER, WATER PUMPCOVER, WATER PUMP
-
83084937 GASKET, WATER PUMPGASKET, WATER PUMP
-
93085077 NUT, SELF LOCKNUT, SELF LOCK
-
103083138 WASHER, FLATWASHER, FLAT
-
113084935 IMPELLER, WATER PUMPIMPELLER, WATER PUMP
-
123084942 WASHER, SEALWASHER, SEAL
-
133084877 BOLT, FLANGEBOLT, FLANGE
