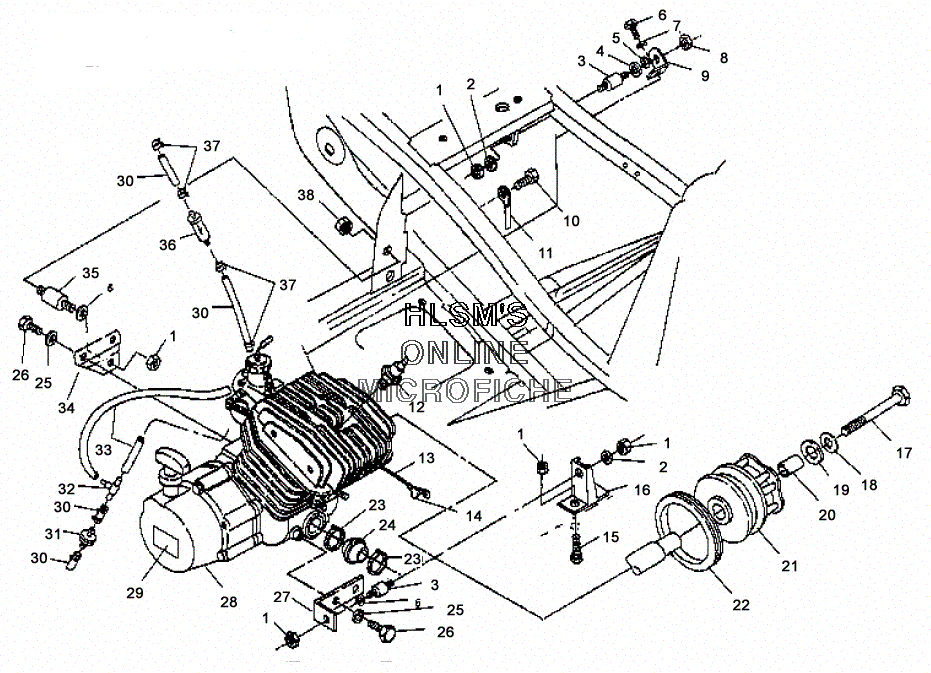

MOUNTING - ENGINE для Polaris TRAIL BLAZER (A00BA25CA) - 2000 года выпуска
-
№АртикулНазвание
-
17547108 NUTNUT
-
27555806 WASHERWASHER
-
33110026 MOUNT, MOTORMOUNT, MOTOR
-
45430802 INSULATOR, MOTOR MOUNTINSULATOR, MOTOR MOUNT
-
57555823 WASHER (OPT)WASHER (OPT)
-
67512315 BOLTBOLT
-
77552901 LOCK, WASHERLOCK, WASHER
-
87542411 NUT, LOCKNUT, LOCK
-
95242898-067 BRACKET, ENGINE MOUNT (TOP/BLACK)BRACKET, ENGINE MOUNT (TOP/BLACK)
-
107512232 BOLTBOLT
-
114010132 CABLE, GROUND ENGINECABLE, GROUND ENGINE
-
123070156 SPARK PLUGSPARK PLUG
-
134010129 CABLE, SOLENOID/START DOUBLE BOOTCABLE, SOLENOID/START DOUBLE BOOT
-
145410346 INSULATED CABLE SOLENOIDINSULATED CABLE SOLENOID
-
157512457 BOLTBOLT
-
161040687-067 MOUNT, ENGINE (FRONT/BLACK)MOUNT, ENGINE (FRONT/BLACK)
-
177512566 BOLTBOLT
-
187575202 WASHER, LOCKWASHER, LOCK
-
195210748 WASHERWASHER
-
205430261 BUSHING, RETAINING BOLTBUSHING, RETAINING BOLT
-
237080511 CLAMP, NARROW BANDCLAMP, NARROW BAND
-
245410421 BOOT, CLUTCH INTAKEBOOT, CLUTCH INTAKE
-
257552603 WASHERWASHER
-
267512490 SCREWSCREW
-
275242896-067 BRACKET, ENGINE MOUNT (FRONT/BLACK)BRACKET, ENGINE MOUNT (FRONT/BLACK)
-
283084717 (EC25PFE13) SHORT BLOCK(EC25PFE13) SHORT BLOCK
-
297075741 DECAL, DRAIN RECOILDECAL, DRAIN RECOIL
-
308450040-600 FUEL LINE (1/4 ID 600 CM.) (OPT)FUEL LINE (1/4 ID 600 CM.) (OPT)
-
317051011 VENT, CHECK VALVEVENT, CHECK VALVE
-
327052005 FITTING, TEEFITTING, TEE
-
338360009-600 FUEL LINE (1/8 ID 600 CM.) (OPT)FUEL LINE (1/8 ID 600 CM.) (OPT)
-
345242897-067 BRACKET, ENGINE MOUNT (REAR/BLACK)BRACKET, ENGINE MOUNT (REAR/BLACK)
-
353110028 MOUNT, MOTORMOUNT, MOTOR
-
362530009 FILTER, IN-LINEFILTER, IN-LINE
-
377080003 CLAMP, HOSECLAMP, HOSE
-
387542459 NUT, FLANGEDNUT, FLANGED
