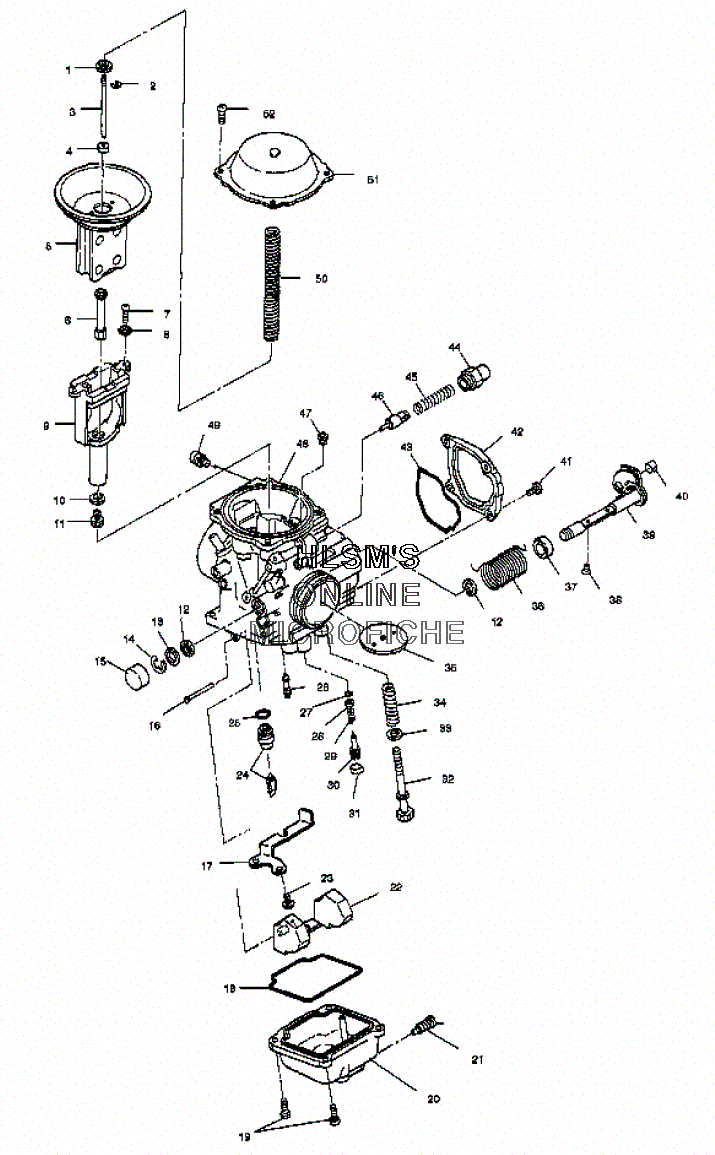

CARBURETOR для Polaris TRAIL BOSS (A00AA32AA) (WHITE) - 2000 года выпуска
-
№АртикулНазвание
-
13130507 RINGRING
-
23130508 E-RINGE-RING
-
33130730 JET NEEDLE (J8-5F14)JET NEEDLE (J8-5F14)
-
43130752 RINGRING
-
53130732 DIAPHRAGM ASSY.DIAPHRAGM ASSY.
-
63131130 NEEDLE, JET (P-0M)NEEDLE, JET (P-0M)
-
73130541 SCREWSCREW
-
83130540 WASHER, SPRINGWASHER, SPRING
-
93131128 JET BLOCK, ASSY.JET BLOCK, ASSY.
-
103130014 WASHERWASHER
-
113130566 MAIN JET #142.5 (BUILT BEFORE 3/1/99)MAIN JET #142.5 (BUILT BEFORE 3/1/99)
-
113130567 MAIN JET #145 (BUILT AFTER 3/1/99)MAIN JET #145 (BUILT AFTER 3/1/99)
-
123130515 SEALSEAL
-
133130517 SEALSEAL
-
143130518 E-RINGE-RING
-
153130519 CAPCAP
-
163130361 PIN, FLOATPIN, FLOAT
-
173130594 PLATEPLATE
-
183130532 O-RINGO-RING
-
193130520 SCREWSCREW
-
203130590 FLOATBODY ASSY.FLOATBODY ASSY.
-
213130521 SCREWSCREW
-
223130529 FLOAT ASSY.FLOAT ASSY.
-
233130591 SCREWSCREW
-
243130531 VALVE, NEEDLE (1.5)VALVE, NEEDLE (1.5)
-
253130533 O-RINGO-RING
-
263131132 JET, PILOT #50JET, PILOT #50
-
273130522 O-RINGO-RING
-
283130523 WASHERWASHER
-
293130525 SPRINGSPRING
-
303131131 ADJUSTERADJUSTER
-
313130905 PLUG (BUILT BEFORE 3/1/99 ONLY)PLUG (BUILT BEFORE 3/1/99 ONLY)
-
323130546 SCREW, ADJUSTSCREW, ADJUST
-
333130545 RINGRING
-
343130544 SPRINGSPRING
-
353131126 VALVE, THROTTLE #120VALVE, THROTTLE #120
-
363130589 SPRINGSPRING
-
373130514 RINGRING
-
383130501 SCREWSCREW
-
393130513 SHAFT ASSY., THROTTLESHAFT ASSY., THROTTLE
-
403130543 GUIDE, CABLEGUIDE, CABLE
-
413130535 SCREWSCREW
-
423130511 COVERCOVER
-
433130512 O-RINGO-RING
-
443130199 HOLDER, GUIDEHOLDER, GUIDE
-
453130538 SPRINGSPRING
-
463130593 PLUNGER ASSY.PLUNGER ASSY.
-
473131133 JET, AIR #175JET, AIR #175
-
483131125 CARBURETOR, ASSY. (INCL. 1-39,44-52) (BUILT BEFORE 3/1/99)CARBURETOR, ASSY. (INCL. 1-39,44-52) (BUILT BEFORE 3/1/99)
-
483131147 CARBURETOR, ASSY. (INCL. 1-39,44-52) (BUILT AFTER 3/1/99)CARBURETOR, ASSY. (INCL. 1-39,44-52) (BUILT AFTER 3/1/99)
-
493084205 SCREW AND WASHERSCREW AND WASHER
-
503131129 SPRINGSPRING
-
513131127 COVER, ASSY.COVER, ASSY.
-
523130592 SCREWSCREW
