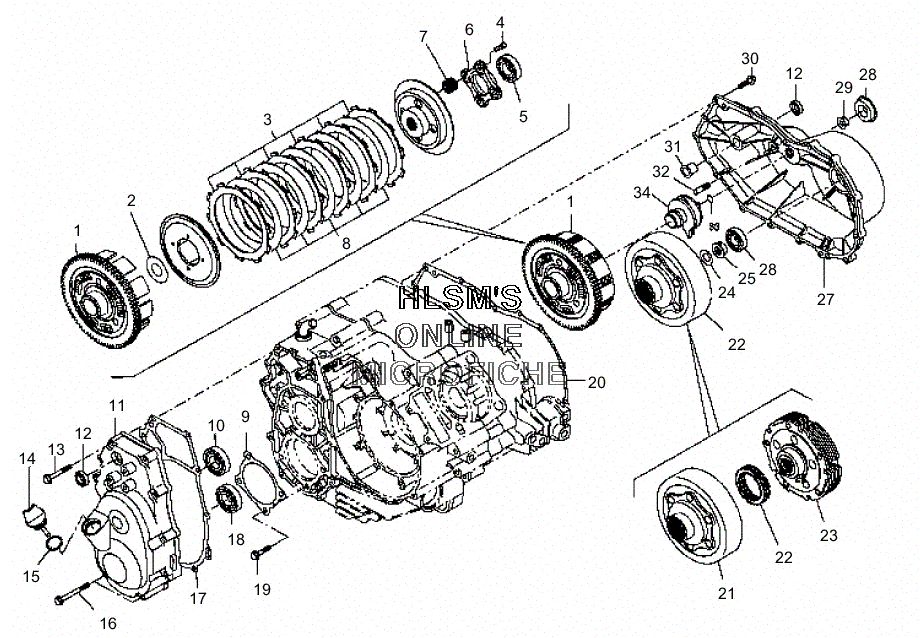

CLUTCH - DRIVE для Polaris XPEDITION 325 (A00CK32AA) - 2000 года выпуска
-
№АртикулНазвание
-
13086913 CLUTCH, ASSY. (INCL. 1-8)CLUTCH, ASSY. (INCL. 1-8)
-
13086914 OUTEROUTER
-
23086278 WASHER, THRUSTWASHER, THRUST
-
33086276 CLUTCH, DISKCLUTCH, DISK
-
43086281 BOLT, SOCKETBOLT, SOCKET
-
53086282 BEARING, BALLBEARING, BALL
-
63086280 PLATE, LIFTERPLATE, LIFTER
-
73086279 SPRINGSPRING
-
83086277 CLUTCH, PLATECLUTCH, PLATE
-
93086263 SHIM (DRIVE PINION) (.15) (OPT)SHIM (DRIVE PINION) (.15) (OPT)
-
93086264 SHIM (DRIVE PINION)(.2) (OPT)SHIM (DRIVE PINION)(.2) (OPT)
-
93086265 SHIM (DRIVE PINION)(.25) (OPT)SHIM (DRIVE PINION)(.25) (OPT)
-
93086266 SHIM (DRIVE PINION)(.3) (OPT)SHIM (DRIVE PINION)(.3) (OPT)
-
93086267 SHIM (DRIVE PINION)(.5) (OPT)SHIM (DRIVE PINION)(.5) (OPT)
-
93086268 SHIM (DRIVE PINION)(.175) (OPT)SHIM (DRIVE PINION)(.175) (OPT)
-
93086269 SHIM (DRIVE PINION)(.225) (OPT)SHIM (DRIVE PINION)(.225) (OPT)
-
93086270 SHIM (DRIVE PINION)(.275) (OPT)SHIM (DRIVE PINION)(.275) (OPT)
-
103086261 BEARING, BALLBEARING, BALL
-
113086908 COVER, REDUCTION, ASSY. (INCL. 10-12,14,15,18)COVER, REDUCTION, ASSY. (INCL. 10-12,14,15,18)
-
113086909 COVER, REDUCTIONCOVER, REDUCTION
-
123086258 SEAL, OILSEAL, OIL
-
133086288 BOLT, FLANGEBOLT, FLANGE
-
143086502 PLUGPLUG
-
153086260 O-RINGO-RING
-
163084179 BOLT, FLANGEBOLT, FLANGE
-
173086915 GASKET, REDUCTION COVERGASKET, REDUCTION COVER
-
183086503 BEARING, BALLBEARING, BALL
-
193086287 BOLT, FLANGEBOLT, FLANGE
-
203086916 GASKET, CLUTCH COVERGASKET, CLUTCH COVER
-
213086911 DRUM (OUTER)DRUM (OUTER)
-
223086910 CLUTCH, ASSY. (CENT.) (INCL. 21-23)CLUTCH, ASSY. (CENT.) (INCL. 21-23)
-
233086912 PLATE, ASSY. (MULT.)PLATE, ASSY. (MULT.)
-
243086381 WASHER, LOCKWASHER, LOCK
-
253086378 NUT, LOCKNUT, LOCK
-
263086254 BEARING, BALLBEARING, BALL
-
273086906 COVER, CLUTCH ASSY. (INCL. 26,27,29,31-34)COVER, CLUTCH ASSY. (INCL. 26,27,29,31-34)
-
273086907 COVER, CLUTCHCOVER, CLUTCH
-
283086255 BLIND PLUGBLIND PLUG
-
293086253 NUT, FLANGENUT, FLANGE
-
303084874 BOLT, FLANGEBOLT, FLANGE
-
313086248 FLANGE, BUSHFLANGE, BUSH
-
323086251 PIN (CLUTCH COVER)PIN (CLUTCH COVER)
-
333086252 O-RINGO-RING
-
343086250 LEVER, RELEASELEVER, RELEASE
