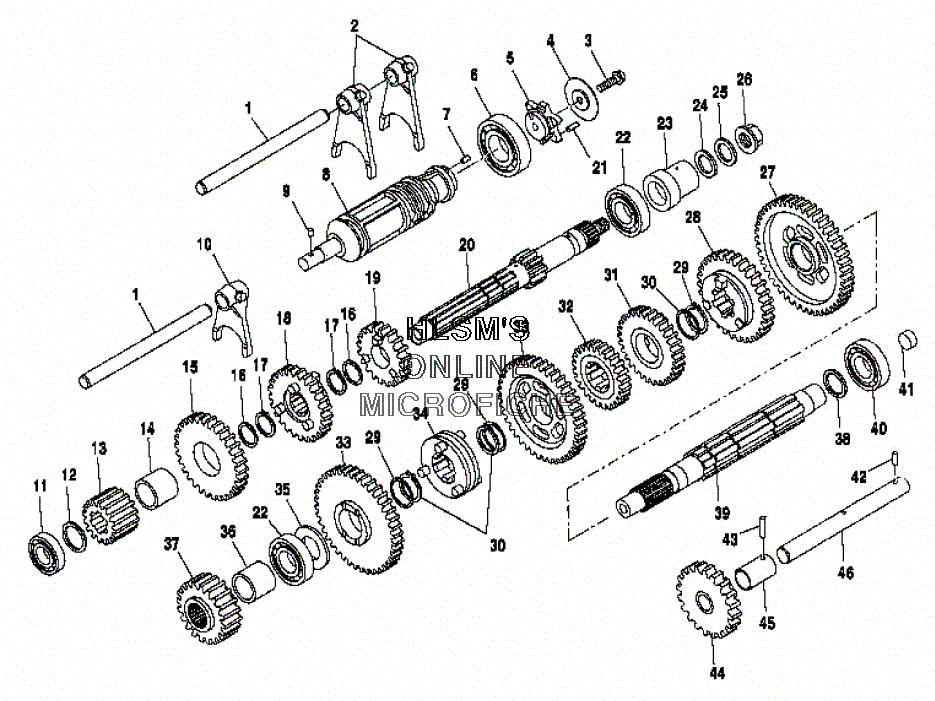

GEARCASE - INTERNAL COMPONENTS для Polaris XPEDITION 325 (A00CK32AA) - 2000 года выпуска
-
№АртикулНазвание
-
13086375 SHAFT, SHIFT FORKSHAFT, SHIFT FORK
-
23086377 FORK, SHIFT DRIVENFORK, SHIFT DRIVEN
-
33086370 BOLT, LOCKBOLT, LOCK
-
43086369 WASHERWASHER
-
53086368 CAM, SHIFTCAM, SHIFT
-
63086373 BEARING, BALLBEARING, BALL
-
73086371 PINPIN
-
83086938 SHIFT DRUM, ASSY. (INCL. 3-8,21)SHIFT DRUM, ASSY. (INCL. 3-8,21)
-
83086939 DRUM, SHIFTDRUM, SHIFT
-
93086379 PIN, DOWELPIN, DOWEL
-
103086376 FORK, SHIFT DRIVEFORK, SHIFT DRIVE
-
113086348 BEARING, BALLBEARING, BALL
-
123086350 WASHERWASHER
-
133086928 GEAR (2ND DRIVE)GEAR (2ND DRIVE)
-
143086345 COLLARCOLLAR
-
153086931 GEAR (5TH DRIVE)GEAR (5TH DRIVE)
-
163086346 WASHERWASHER
-
173086349 RING, SNAPRING, SNAP
-
183086930 GEAR (4TH DRIVE)GEAR (4TH DRIVE)
-
193086929 GEAR (3RD DRIVE)GEAR (3RD DRIVE)
-
203086926 MAIN SHAFT, ASSY. (INCL. 11-20,22)MAIN SHAFT, ASSY. (INCL. 11-20,22)
-
203086927 SHAFT, MAINSHAFT, MAIN
-
213086372 PINPIN
-
223086347 BEARING, BALLBEARING, BALL
-
233086382 BUSH, FLANGEBUSH, FLANGE
-
243086313 WASHERWASHER
-
253086286 WASHER, LOCKWASHER, LOCK
-
263086285 NUT, LOCKNUT, LOCK
-
273086937 GEARGEAR
-
283086934 GEAR (3RD DRIVEN)GEAR (3RD DRIVEN)
-
293086363 RING, SNAPRING, SNAP
-
303086359 WASHERWASHER
-
313086935 GEAR (4TH DRIVEN)GEAR (4TH DRIVEN)
-
323086936 GEAR (5TH DRIVEN)GEAR (5TH DRIVEN)
-
333086933 GEAR (2ND DRIVEN)GEAR (2ND DRIVEN)
-
343086357 CLUTCHCLUTCH
-
353086364 WASHERWASHER
-
363086941 SPACERSPACER
-
373086374 SPROCKET, DRIVESPROCKET, DRIVE
-
383231513 WASHERWASHER
-
393086352 SHAFT, COUNTERSHAFT, COUNTER
-
393086932 COUNTER SHAFT, ASSY. (INCL. 22,27-35,38-41)COUNTER SHAFT, ASSY. (INCL. 22,27-35,38-41)
-
403086362 BEARING, BALLBEARING, BALL
-
413086365 PLUGPLUG
-
423086337 PINPIN
-
433086338 PINPIN
-
443086925 GEARGEAR
-
453086336 COLLARCOLLAR
-
463086334 SHAFT, REVERSESHAFT, REVERSE
-
463086924 REVERSE SHAFT, ASSY. (INCL. 42-46)REVERSE SHAFT, ASSY. (INCL. 42-46)
