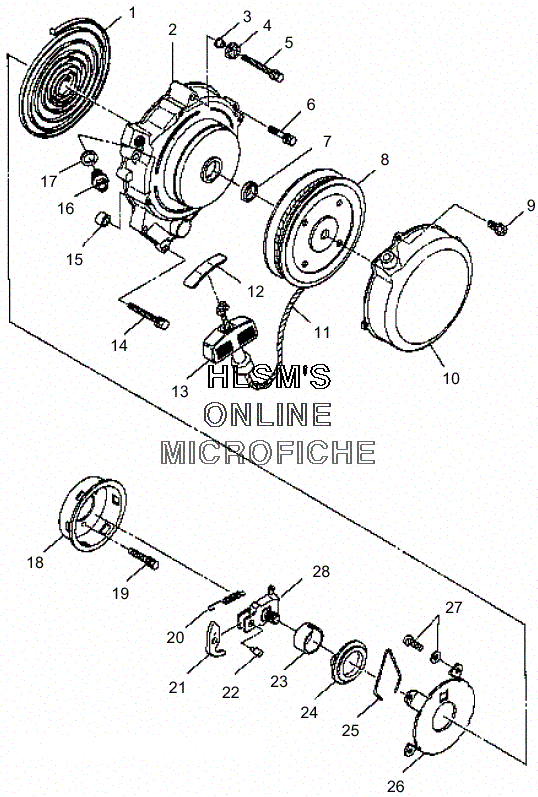

STARTER - RECOIL для Polaris XPLORER (A00AG25CA) - 2000 года выпуска
-
№АртикулНазвание
-
13083815 SPRING, SPIRALSPRING, SPIRAL
-
23083911 CASE, STARTER B UNITCASE, STARTER B UNIT
-
23083924 STARTER, RECOIL COMP. (INCL. 1, 2, 7-13, 20-28)STARTER, RECOIL COMP. (INCL. 1, 2, 7-13, 20-28)
-
33083732 COLLARCOLLAR
-
43083731 MOUNTING, RUBBERMOUNTING, RUBBER
-
53083926 BOLT AND WASHER ASSY.BOLT AND WASHER ASSY.
-
63082228 BOLT AND WASHER ASSY.BOLT AND WASHER ASSY.
-
73083817 GROMMETGROMMET
-
83083814 REEL, COMP.REEL, COMP.
-
93083826 BOLT, FLANGEBOLT, FLANGE
-
103083914 CASE, STARTER, COMP.CASE, STARTER, COMP.
-
112870621 ROPE, 100 FT NYLON STARTER (OPT)ROPE, 100 FT NYLON STARTER (OPT)
-
113083828 ROPE, STARTER (INCL. 11-13)ROPE, STARTER (INCL. 11-13)
-
123083660 CAP, KNOBCAP, KNOB
-
133083659 KNOB, STARTERKNOB, STARTER
-
143083729 BOLT AND WASHERBOLT AND WASHER
-
153083669 BUSHING, STARTERBUSHING, STARTER
-
163086749 PLUGPLUG
-
173082956 GASKETGASKET
-
183083915 PULLEY, STARTINGPULLEY, STARTING
-
193081665 BOLTBOLT
-
203083827 SPRING, RETURNSPRING, RETURN
-
213083819 RATCHETRATCHET
-
223083820 PIN, RATCHETPIN, RATCHET
-
233083818 HOOK, SPRINGHOOK, SPRING
-
243083821 GUIDE, RATCHETGUIDE, RATCHET
-
253083912 SPRING, FRICTIONSPRING, FRICTION
-
263083925 CASE, SPRINGCASE, SPRING
-
273084176 SCREW AND WASHERSCREW AND WASHER
-
283083913 GUIDE, COMP.GUIDE, COMP.
