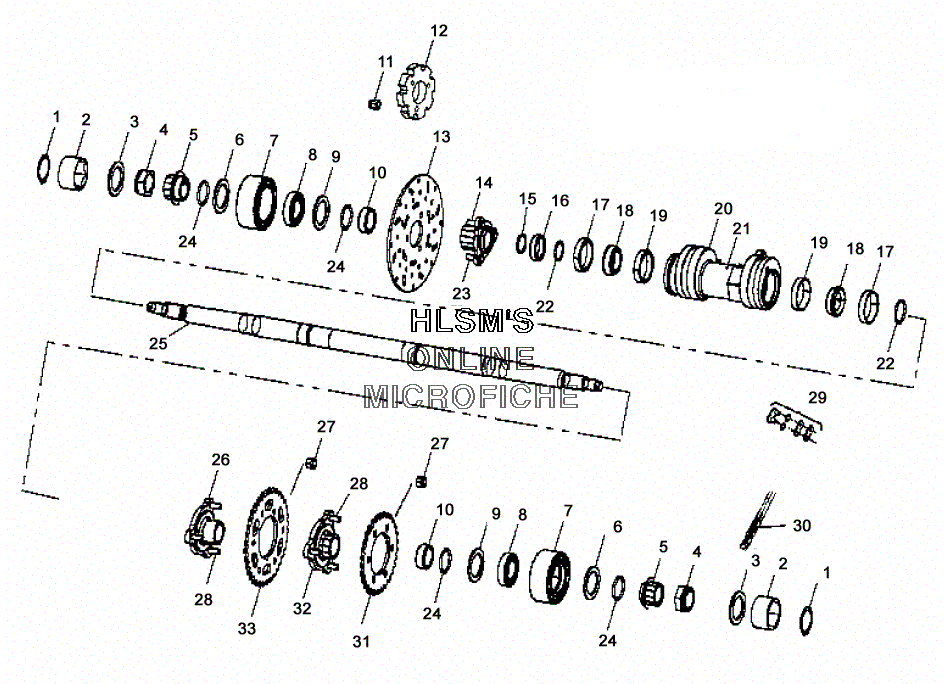

DRIVE - MIDDLE для Polaris BIG BOSS INTERNATION (A01CL50DA) - 2001 года выпуска
-
№АртикулНазвание
-
17710472 RING, RETAININGRING, RETAINING
-
25510372 EXTRUSION, RETAIN NUT (1.25)EXTRUSION, RETAIN NUT (1.25)
-
35411555 SEAL, FOAMSEAL, FOAM
-
47547031 NUT, JAMNUT, JAM
-
55630987 HUB, MIDDLE AXLE LOCKINGHUB, MIDDLE AXLE LOCKING
-
63610074 SEAL, INNER SWING ARM PIVOTSEAL, INNER SWING ARM PIVOT
-
75132219 HOUSING, SWING ARMHOUSING, SWING ARM
-
83515501 BEARING, BALLBEARING, BALL
-
93610013 SEAL, REAR AXLESEAL, REAR AXLE
-
105132218 SPACER, BEARINGSPACER, BEARING
-
117542439 NUT, LOCKNUT, LOCK
-
125244597 HUB, BRAKE DISCHUB, BRAKE DISC
-
135244425 DISC, BRAKE (9.0 OD/188THK)DISC, BRAKE (9.0 OD/188THK)
-
141520373 HUB ASSY., BRAKE DISC LOCKING, INTHUB ASSY., BRAKE DISC LOCKING, INT
-
157710405 RING, SNAPRING, SNAP
-
165010462 SPACER, AXLESPACER, AXLE
-
173610070 SEAL, LIPSEAL, LIP
-
183554518 BEARING, CONE TAPEREDBEARING, CONE TAPERED
-
193554517 BEARING, CUP TAPEREDBEARING, CUP TAPERED
-
205132098 HOUSING AXLE, REARHOUSING AXLE, REAR
-
217080306 FITTING, LUBE W/BALL CHECKFITTING, LUBE W/BALL CHECK
-
225410889 O-RINGO-RING
-
237515513 STUDSTUD
-
245411739 O-RINGO-RING
-
255132049 AXLE, MIDDLEAXLE, MIDDLE
-
261520311 HUB ASSY., SPROCKETHUB ASSY., SPROCKET
-
277542507 NUT, FLEX LOCNUT, FLEX LOC
-
287517762 STUDSTUD
-
293225027 LINK, CONNECT 520 ORDLINK, CONNECT 520 ORD
-
303224056-080 CHAIN, O-RING 80 PITCH (520)CHAIN, O-RING 80 PITCH (520)
-
313221121 SPROCKET (30 TEETH)SPROCKET (30 TEETH)
-
321520319 HUB ASSY., SPROCKET MIDHUB ASSY., SPROCKET MID
-
333221120 SPROCKET, 38 TEETHSPROCKET, 38 TEETH
