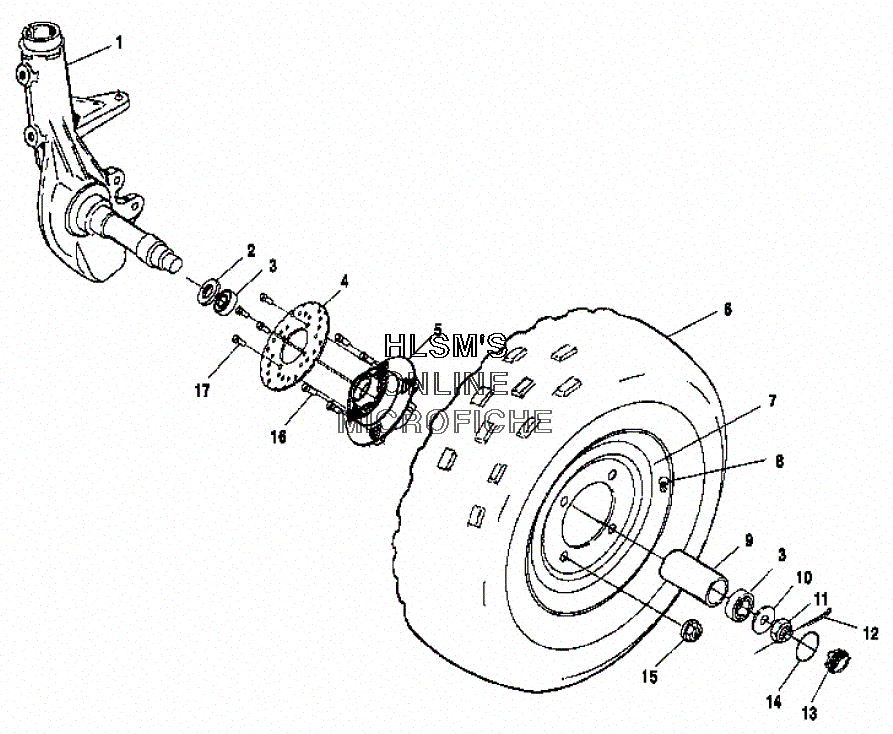

WHEEL - FRONT для Polaris MAGNUM 325 2X4 (A01CB32AB) - 2001 года выпуска
-
№АртикулНазвание
-
23610020 SEAL, HUB (FRONT)SEAL, HUB (FRONT)
-
33513519 BEARING, BALLBEARING, BALL
-
45243675 DISC, BRAKE (7.21 OD, .150)DISC, BRAKE (7.21 OD, .150)
-
55130940 HUB, WHEEL AND CAP ASSY.HUB, WHEEL AND CAP ASSY.
-
65411709 TIRE, TITAN (24X8-12)TIRE, TITAN (24X8-12)
-
71520269-117 RIM (FRONT/SILVER)RIM (FRONT/SILVER)
-
81525017 VALVE, RIMVALVE, RIM
-
95010256 SPACER, HUB (FRONT)SPACER, HUB (FRONT)
-
107555721 WASHERWASHER
-
117542712 NUTNUT
-
127661407 COTTER PINCOTTER PIN
-
135431018 CAP, HUBCAP, HUB
-
145410470 O-RINGO-RING
-
157542459 NUT, FLANGEDNUT, FLANGED
-
167515523 STUDSTUD
-
177512325 BOLTBOLT
