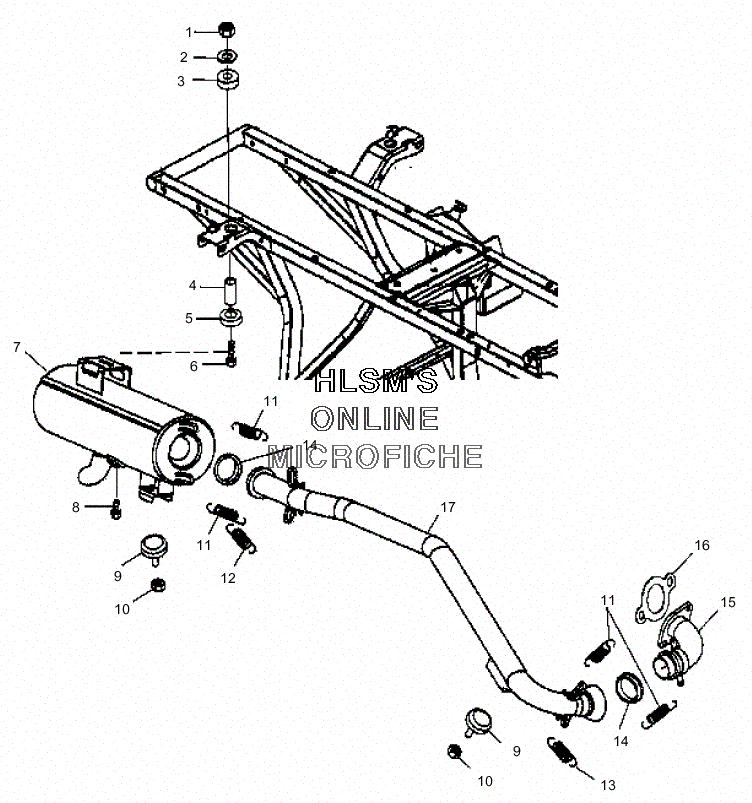

EXHAUST SYSTEM для Polaris MAGNUM 325 2X4 HDS (A01CB32FC) - 2001 года выпуска
-
№АртикулНазвание
-
17542324 NUTNUT
-
27555716 WASHERWASHER
-
35410436 WASHER, RUBBERWASHER, RUBBER
-
45132295 BUSHING, RES MOUNTBUSHING, RES MOUNT
-
55411790 DAMPENER, VIBRATIONDAMPENER, VIBRATION
-
67515394 SCREWSCREW
-
71260961-029 SILENCER (BLACK)SILENCER (BLACK)
-
87512666 BOLTBOLT
-
93110064 MOUNT, TORQUE STOPMOUNT, TORQUE STOP
-
107542301 NUT, HEXAGONNUT, HEXAGON
-
117041804 SPRING, EXHAUSTSPRING, EXHAUST
-
127041789 SPRING, EXHAUSTSPRING, EXHAUST
-
137042029 SPRING, EXHAUSTSPRING, EXHAUST
-
145243517 SEAL, EXHAUSTSEAL, EXHAUST
-
151260960-029 MANIFOLD (BLACK)MANIFOLD (BLACK)
-
163086237 GASKET, EXHAUSTGASKET, EXHAUST
-
171260987-029 HEADPIPE (BLACK)HEADPIPE (BLACK)
