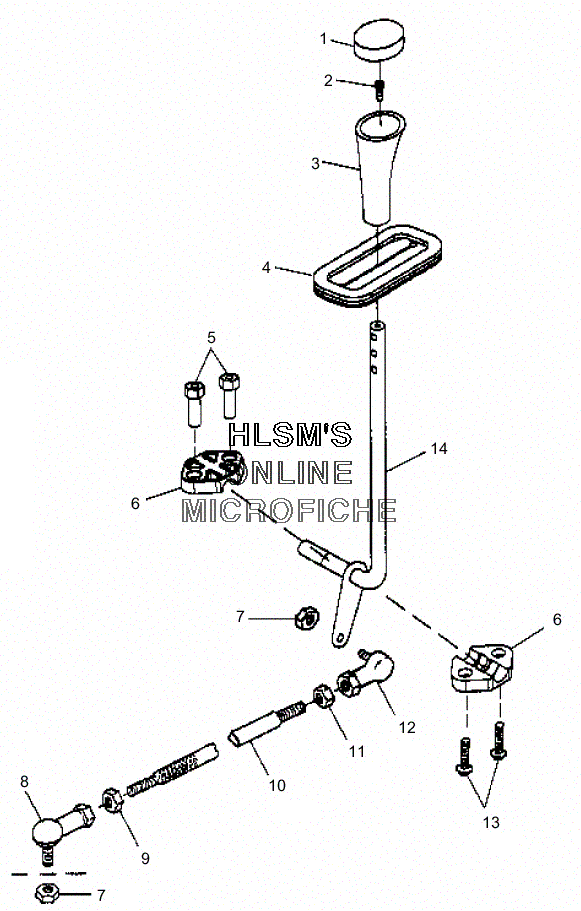

GEAR SELECTOR для Polaris SCRAMBLER 500 4X4 (A01BG50AA) (BLAZING RED) - 2001 года выпуска
-
№АртикулНазвание
-
15411006 KNOB ASSY., HI/REVKNOB ASSY., HI/REV
-
27512024 SCREWSCREW
-
35411007 KNOB ASSY., HI/REVKNOB ASSY., HI/REV
-
45411008 GROMMET, HR SHIFTERGROMMET, HR SHIFTER
-
55131976 SPACER, HEX SHIFTER HI/REVSPACER, HEX SHIFTER HI/REV
-
65433103 MOUNT, GEAR SELECTOR HI/REVMOUNT, GEAR SELECTOR HI/REV
-
77546707 NUT, METRICNUT, METRIC
-
87061014 ROD END (RIGHT) (6MM)ROD END (RIGHT) (6MM)
-
97546701 NUTNUT
-
105020955 ROD, SHIFT LINKAGEROD, SHIFT LINKAGE
-
117546702 NUTNUT
-
127061013 ROD END (LEFT) (6MM)ROD END (LEFT) (6MM)
-
137515133 SCREWSCREW
-
141012797-067 GEAR SELECTOR (BLACK)GEAR SELECTOR (BLACK)
