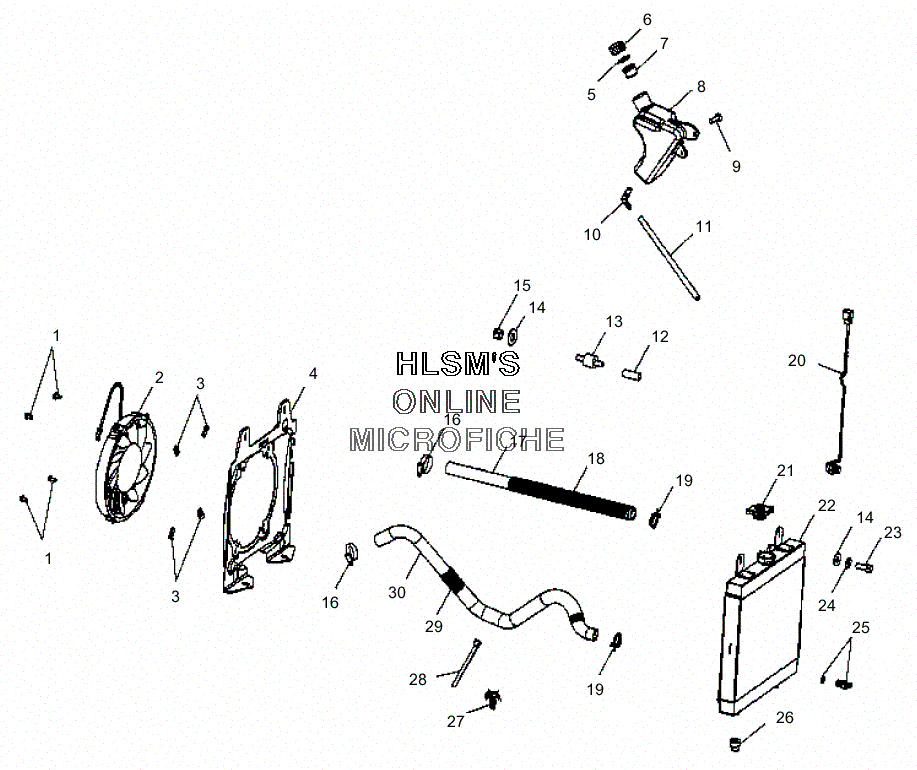

COOLING SYSTEM для Polaris SCRAMBLER 500 4X4 (A01BG50AB) (BLACK/SCR (YELLOW) - 2001 года выпуска
-
№АртикулНазвание
-
17517659 SCREWSCREW
-
22410123 FAN AND MOTOR, ASSY. SPALFAN AND MOTOR, ASSY. SPAL
-
37670111 CLIP-U, ZYCLIP-U, ZY
-
45434043 SHROUD, FANSHROUD, FAN
-
55810279 GASKETGASKET
-
65430743 CAP, OVERFLOWCAP, OVERFLOW
-
75433774 CAP, PLUG9X FLEX TEMP (GREEN)CAP, PLUG9X FLEX TEMP (GREEN)
-
85433410 TANK, SURGETANK, SURGE
-
97512084 SCREWSCREW
-
107052065 FITTING, 90 DEGREEFITTING, 90 DEGREE
-
118450003-600 HOSEHOSE
-
125020937 SPACER, RADIATOR MOUNTSPACER, RADIATOR MOUNT
-
133110032 MOUNT, RUBBERMOUNT, RUBBER
-
147558301 WASHERWASHER
-
157542122 NUT, LOCKNUT, LOCK
-
167080614 CLAMP, HOSECLAMP, HOSE
-
175411985 HOSE, ENGINE (UPPER)HOSE, ENGINE (UPPER)
-
185521511 GUARD, HOSE (12'')GUARD, HOSE (12'')
-
197080826 CLAMP, ROTO CLIPCLAMP, ROTO CLIP
-
204010161 SENSOR, THERMAL/HARNESSSENSOR, THERMAL/HARNESS
-
211240093 CAP, PRESSURE (13 LBS)CAP, PRESSURE (13 LBS)
-
221240090 RADIATORRADIATOR
-
237512240 BOLTBOLT
-
247552801 LOCK WASHERLOCK WASHER
-
257052296 VALVE, PLASTIC RAD/COOLER DRAINVALVE, PLASTIC RAD/COOLER DRAIN
-
265410584 BUSHING, MOUNT LOW (RED)BUSHING, MOUNT LOW (RED)
-
277080965 MOUNT, CABLE TIE (.25)MOUNT, CABLE TIE (.25)
-
287080138 STRAP, PANDUITSTRAP, PANDUIT
-
295521550 PLASTIC, HOSEGUARD (18'')PLASTIC, HOSEGUARD (18'')
-
305411989 HOSE, ENGINE (LOWER)HOSE, ENGINE (LOWER)
