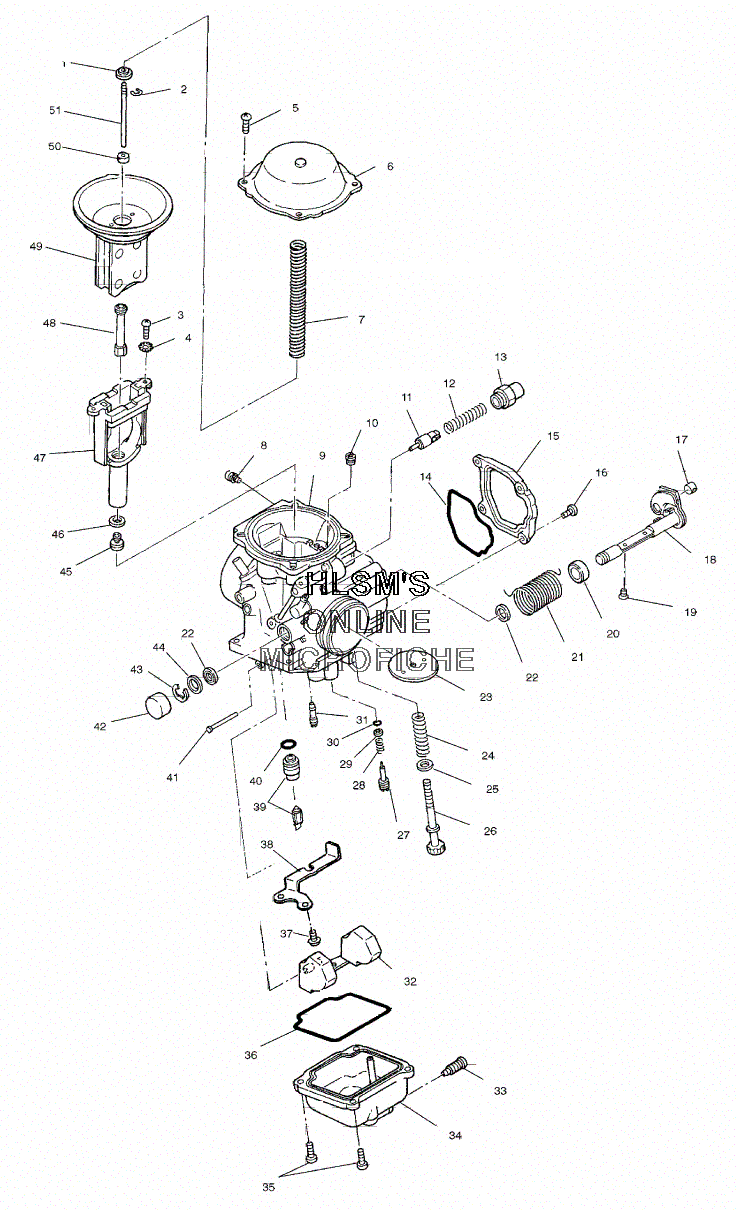

CARBURETOR для Polaris SPORTSMAN 400 (A01CH42AC) (MEDIUM (YELLOW) - 2001 года выпуска
-
№АртикулНазвание
-
13130507 RINGRING
-
23130508 E-RINGE-RING
-
33130541 SCREWSCREW
-
43130540 WASHER, SPRINGWASHER, SPRING
-
53130592 SCREWSCREW
-
63130503 COVERCOVER
-
73130505 SPRINGSPRING
-
83084205 SCREW AND WASHERSCREW AND WASHER
-
93131310 CARBURETOR ASSY. (INCL. 1-13,18-51)CARBURETOR ASSY. (INCL. 1-13,18-51)
-
103130625 JET, AIR (#160)JET, AIR (#160)
-
113130593 PLUNGER ASSY.PLUNGER ASSY.
-
123130538 SPRINGSPRING
-
133130199 HOLDER, GUIDEHOLDER, GUIDE
-
143130512 O-RINGO-RING
-
153130511 COVERCOVER
-
163130535 SCREWSCREW
-
173130543 GUIDE, CABLEGUIDE, CABLE
-
183130513 SHAFT ASSY., THROTTLESHAFT ASSY., THROTTLE
-
193130501 SCREWSCREW
-
203130514 RINGRING
-
213130589 SPRINGSPRING
-
223130515 SEALSEAL
-
233130502 VALVE, THROTTLEVALVE, THROTTLE
-
243130544 SPRINGSPRING
-
253130545 RINGRING
-
263130546 SCREW, ADJUSTSCREW, ADJUST
-
273130524 ADJUSTERADJUSTER
-
283130525 SPRINGSPRING
-
293130523 WASHERWASHER
-
303130522 O-RINGO-RING
-
313130624 JET, PILOT (#40)JET, PILOT (#40)
-
323130529 FLOAT ASSY.FLOAT ASSY.
-
333130521 SCREWSCREW
-
343130590 FLOAT BODY ASSY.FLOAT BODY ASSY.
-
353130520 SCREWSCREW
-
363130532 O-RINGO-RING
-
373130591 SCREWSCREW
-
383130594 PLATEPLATE
-
393130668 VALVE NEEDLE (1.5)VALVE NEEDLE (1.5)
-
403130533 O-RINGO-RING
-
413130361 PIN, FLOATPIN, FLOAT
-
423130519 CAPCAP
-
433130518 E-RINGE-RING
-
443130517 WASHERWASHER
-
453131144 JET, MAIN (#167.5)JET, MAIN (#167.5)
-
463130014 WASHERWASHER
-
473130504 JETBLOCK ASSY.JETBLOCK ASSY.
-
483131311 JET-NEEDLE (Q-0)JET-NEEDLE (Q-0)
-
493130732 DIAPHRAGM ASSY.DIAPHRAGM ASSY.
-
503130752 RINGRING
-
513131312 NEEDLE-JET (5F14)NEEDLE-JET (5F14)
