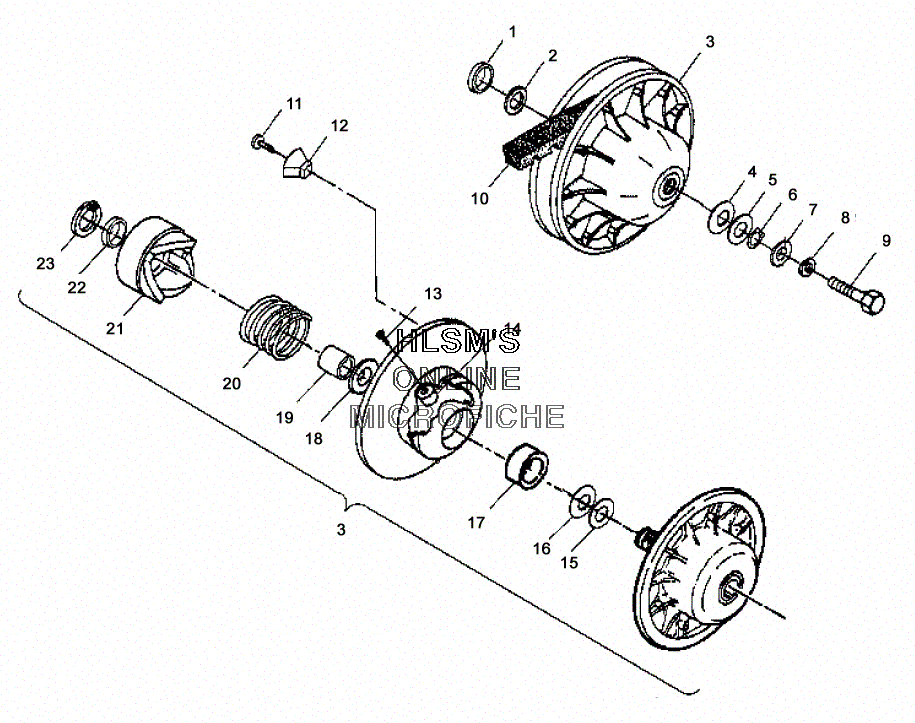

CLUTCH - DRIVEN для Polaris SPORTSMAN 500 RSE HO (A01CH50AJ) (BRAKE UP CAMO) - 2001 года выпуска

№

Артикул

Название
1

5010409 SPACER, DRIVEN, ATV

SPACER, DRIVEN, ATV

2 910 ₽
2

7556120 BUSHING (7/8 X 3/8 X 16) (10 (OPT)

BUSHING (7/8 X 3/8 X 16) (10 (OPT)

250 ₽
3

1322190 CLUTCH, DRIVEN, BREAKAGE, 4-STRK. (INCL. 5-7,17-23)

CLUTCH, DRIVEN, BREAKAGE, 4-STRK. (INCL. 5-7,17-23)

104 000 ₽
4

7556013 WASHER

WASHER

2 910 ₽
5

7556010 BUSHING

BUSHING

1 040 ₽
6

7710461 RING, RETAINER HEAD

RING, RETAINER HEAD

1 670 ₽
7

5220646 WASHER, DOMED

WASHER, DOMED

630 ₽
8

7552901 LOCK WASHER

LOCK WASHER

110 ₽
9

7515327 BOLT

BOLT

670 ₽
10

3211069 BELT, DRIVE, ENGINE BRAKE

BELT, DRIVE, ENGINE BRAKE

17 680 ₽
13

7517323 SCREW, SPECIAL

SCREW, SPECIAL

1 460 ₽
14

1321977 ROLLER-TAPER, SP-21, MACH

ROLLER-TAPER, SP-21, MACH

6 660 ₽
17

3585710 BEARING

BEARING

4 790 ₽
18

5211115 WASHER, SPRING RETAINER

WASHER, SPRING RETAINER

340 ₽
19

3576511 BUSHING

BUSHING

5 160 ₽
20

7041635 SPRING, DRIVEN, 2-STK (WHITE/YELLOW)

SPRING, DRIVEN, 2-STK (WHITE/YELLOW)

7 280 ₽
21

5131674 RAMP, STA.BRAKE, 4STRK, MACH

RAMP, STA.BRAKE, 4STRK, MACH

15 600 ₽
22

5210752 SPACER

SPACER

110 ₽
23

7710448 RING, RET.

RING, RET.

750 ₽
