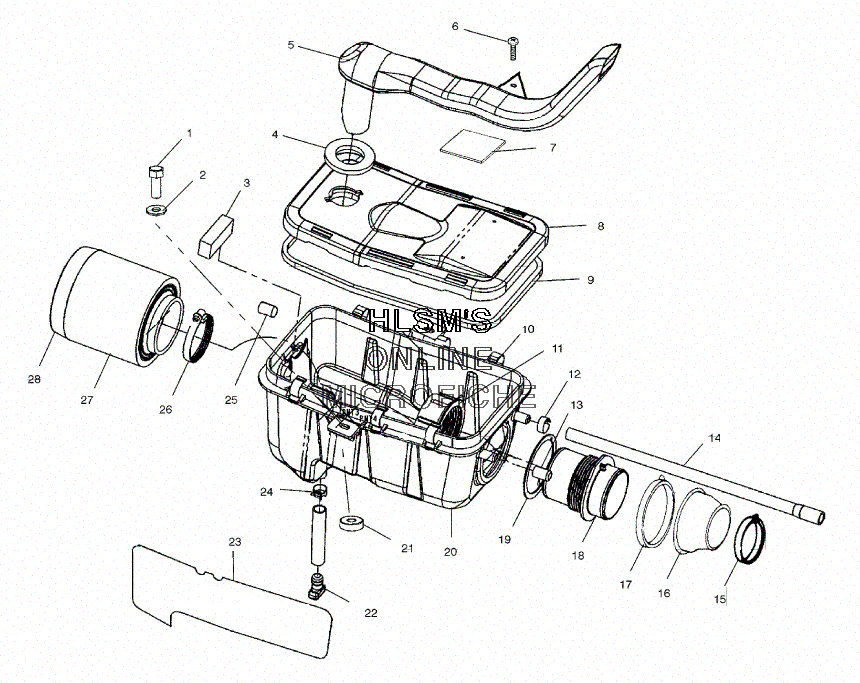

AIR BOX ASSY. для Polaris TRAIL BOSS 325 SE (A01AA32AC) (MEDIUM (YELLOW) - 2001 года выпуска
-
№АртикулНазвание
-
17515180 SCREWSCREW
-
27555859 WASHER, FLATWASHER, FLAT
-
35812137 FILTER, AIRBOX VENTFILTER, AIRBOX VENT
-
45812023 SEAL, AIRBOX INTAKESEAL, AIRBOX INTAKE
-
55433767 DUCT, INLET AIRBOX COVERDUCT, INLET AIRBOX COVER
-
67517317 SCREWSCREW
-
75810317 PAD, FUEL TANK BRACKETPAD, FUEL TANK BRACKET
-
85433769 COVER, AIRBOXCOVER, AIRBOX
-
95811482 SEAL, AIRBOX COVERSEAL, AIRBOX COVER
-
105242044 CLIP, AIR BOXCLIP, AIR BOX
-
115432601 COLLAR, CARB INLETCOLLAR, CARB INLET
-
127080699 CLAMP, HOSECLAMP, HOSE
-
135412101 CAP, RUBBER (3/8 ID)CAP, RUBBER (3/8 ID)
-
145411866 HOSE, BREATHER (47) (38X13.5'')HOSE, BREATHER (47) (38X13.5'')
-
157080511 CLAMP, NARROW BANDCLAMP, NARROW BAND
-
165411588 BOOT, CARB PVTBOOT, CARB PVT
-
177080413 CLAMP, BAND NARROWCLAMP, BAND NARROW
-
185433180 DUCT, CARB INLETDUCT, CARB INLET
-
195830128 GASKET, CARBURETOR IN DUCTGASKET, CARBURETOR IN DUCT
-
205433919 BOX, AIR INTAKE 4 STROKEBOX, AIR INTAKE 4 STROKE
-
217555932 WASHER, NYLONWASHER, NYLON
-
225432377 PLUG, TRAPPLUG, TRAP
-
235812111 FOIL, ARIBOX (RIGHT)FOIL, ARIBOX (RIGHT)
-
247080650 CLAMP, HOSECLAMP, HOSE
-
255412099 CAP, RUBBER (7/32 ID)CAP, RUBBER (7/32 ID)
-
267080413 CLAMP, BAND NARROWCLAMP, BAND NARROW
-
275811660 FILTER, PRECLEAN SLEEVE ( 4'')FILTER, PRECLEAN SLEEVE ( 4'')
-
281253372 FILTER ASSY., AIR, 4.0'' LONG (INCL. 27)FILTER ASSY., AIR, 4.0'' LONG (INCL. 27)
