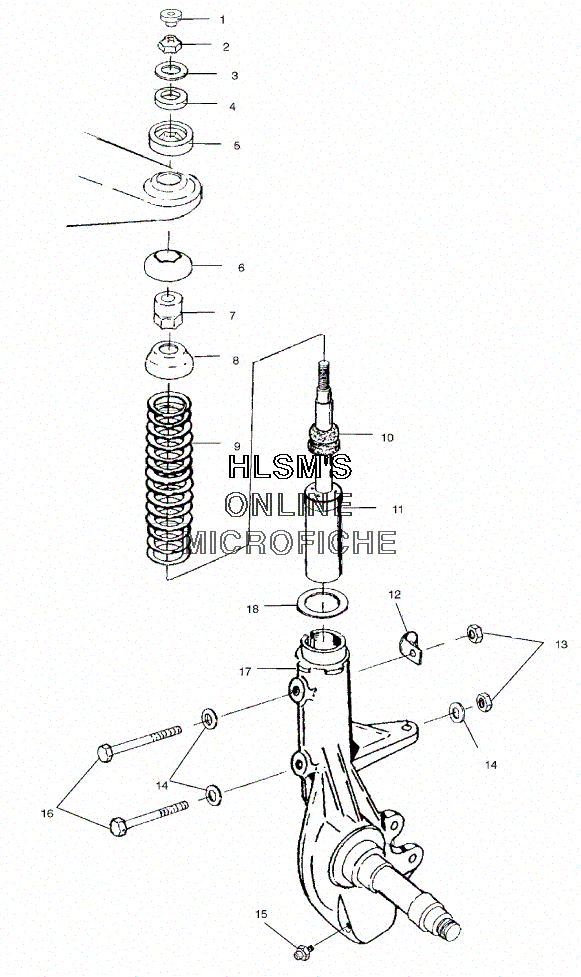

SUSPENSION - FRONT STRUT для Polaris TRAIL BOSS (A01AA32AB) (RED/WHITE) - 2001 года выпуска
-
№АртикулНазвание
-
17052028 GROMMET, TANK FITTINGGROMMET, TANK FITTING
-
27547104 NUTNUT
-
37555749 WASHERWASHER
-
45810291 SPACER, RUBBERSPACER, RUBBER
-
55432872 PIVOT, BALL TOPPIVOT, BALL TOP
-
65432871 PIVOT, BALL BOTTOMPIVOT, BALL BOTTOM
-
75132062 SPACER, STRUTSPACER, STRUT
-
85243364 RETAINER, SPRING STRUTRETAINER, SPRING STRUT
-
97041850-067 SPRING, COMP 41#/IN (BLACK)SPRING, COMP 41#/IN (BLACK)
-
105411608 BUMPER, MCU 17.80MM IDBUMPER, MCU 17.80MM ID
-
117041761 STRUT, FRONT 18X30MM 153.8MM STSTRUT, FRONT 18X30MM 153.8MM ST
-
127080367 CLAMP, CABLECLAMP, CABLE
-
137542324 NUTNUT
-
147558402 WASHER, STEELWASHER, STEEL
-
157080306 FITTING, LUBE.W/BALL CHECKFITTING, LUBE.W/BALL CHECK
-
167515339 BOLTBOLT
-
175131039 SUPPORT, LH STRUT/SPINDLESUPPORT, LH STRUT/SPINDLE
-
175131040 SUPPORT, STRUT/SPINDLESUPPORT, STRUT/SPINDLE
-
185211115 WASHER, SPRING RETAINERWASHER, SPRING RETAINER
