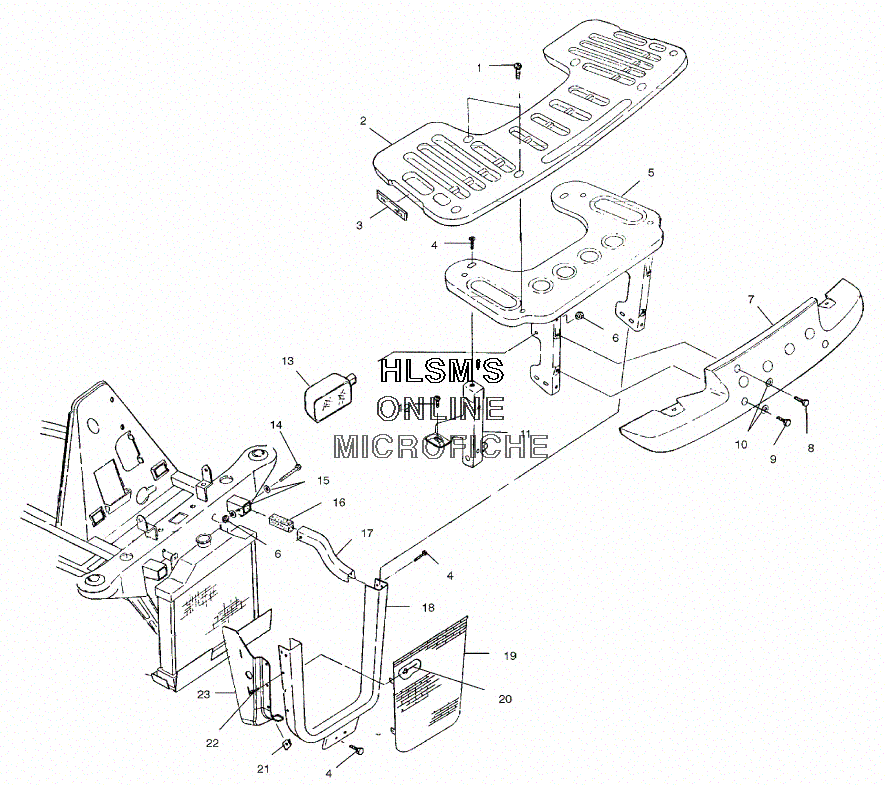

RACK AND BUMPER MOUNTING - FRONT для Polaris XPEDITION 425 (A01CK42CA) - 2001 года выпуска
-
№АртикулНазвание
-
17517685 SCREWSCREW
-
22670180-070 RACK, FRONT (BLACK) (INCL. REF. 3 AND WARNING DECAL)RACK, FRONT (BLACK) (INCL. REF. 3 AND WARNING DECAL)
-
32670071 REFLECTOR (AMBER)REFLECTOR (AMBER)
-
47515399 SCREWSCREW
-
52200775 FRONT, RACK MOUNT KITFRONT, RACK MOUNT KIT
-
67542324 NUTNUT
-
75432155-070 BUMPER (BLACK)BUMPER (BLACK)
-
87515391 BOLTBOLT
-
97515390 BOLTBOLT
-
107555954 WASHERWASHER
-
111013210-067 SUPPORT, FRT.RACK (LEFT/BLACK)SUPPORT, FRT.RACK (LEFT/BLACK)
-
111013211-067 SUPPORT, FRONT. RACK (RIGHT/BLACK)SUPPORT, FRONT. RACK (RIGHT/BLACK)
-
127517386 SCREWSCREW
-
132431011 HEADLIGHT ASSY. (30/30W/LEFT)HEADLIGHT ASSY. (30/30W/LEFT)
-
132431012 HEADLIGHT ASSY. (30/30W/RIGHT)HEADLIGHT ASSY. (30/30W/RIGHT)
-
134030061 BULB, HEADLIGHT (30/30 W)BULB, HEADLIGHT (30/30 W)
-
147515382 BOLTBOLT
-
157558402 WASHER, STEELWASHER, STEEL
-
165810467 PLUG, FRAMEPLUG, FRAME
-
175244623-067 EXTENSION, FRAME (LEFT/BLACK)EXTENSION, FRAME (LEFT/BLACK)
-
175244624-067 EXTENSION, FRAME (RIGHT/BLACK)EXTENSION, FRAME (RIGHT/BLACK)
-
185241583-067 GUARD, BRUSH (BLACK)GUARD, BRUSH (BLACK)
-
195240591-067 GRILL, BRUSHGUARD (BLACK)GRILL, BRUSHGUARD (BLACK)
-
207621330 RIVET, POPRIVET, POP
-
217670094 NUTNUT
-
227512097 SCREWSCREW
-
235433923 SHIELD, RADIATOR (LEFT)SHIELD, RADIATOR (LEFT)
-
235433924 SHEILD, RADIATOR (RIGHT)SHEILD, RADIATOR (RIGHT)
