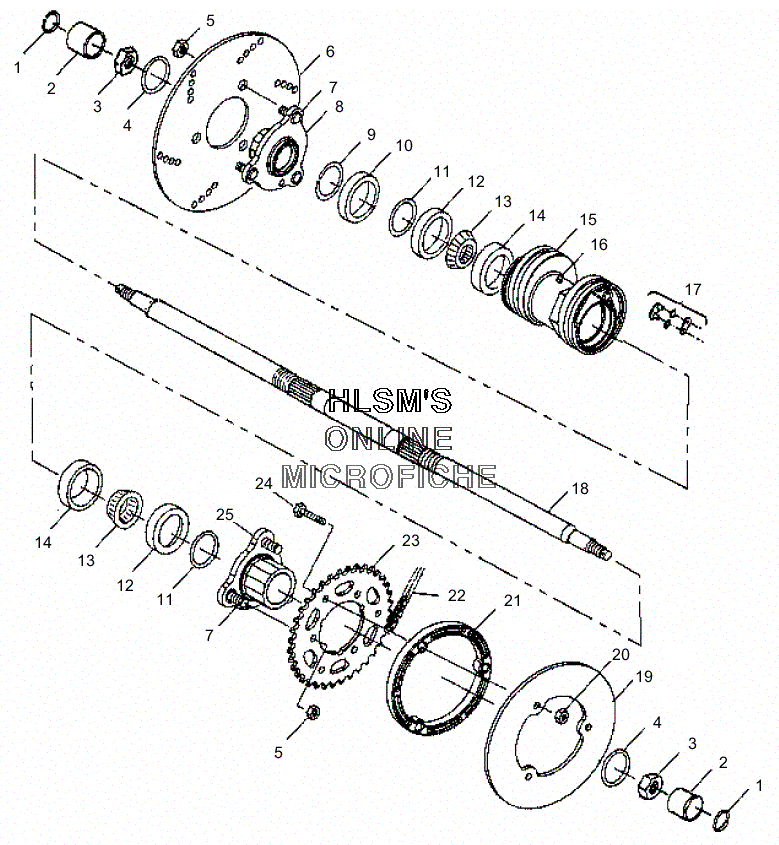

HOUSING - REAR W/ AXLE для Polaris XPLORER (A01AG25CA) - 2001 года выпуска
-
№АртикулНазвание
-
17710472 RING, RETAININGRING, RETAINING
-
25510313 EXTRUSION, RETAINER NUTEXTRUSION, RETAINER NUT
-
37547031 NUT, JAMNUT, JAM
-
45411555 SEAL, FOAMSEAL, FOAM
-
57542439 NUT, LOCKNUT, LOCK
-
65243678 DISC, BRAKE 7.00 OD (.188 THK)DISC, BRAKE 7.00 OD (.188 THK)
-
77515513 STUDSTUD
-
81520259 HUB ASSY., BRAKE DISC LOCKING (INCL. 7)HUB ASSY., BRAKE DISC LOCKING (INCL. 7)
-
97710496 RING, SNAPRING, SNAP
-
105010462 SPACER, AXLESPACER, AXLE
-
115410889 O-RINGO-RING
-
123610070 SEAL, LIPSEAL, LIP
-
133554518 BEARING, CONE TAPEREDBEARING, CONE TAPERED
-
143554517 BEARING, CUP TAPEREDBEARING, CUP TAPERED
-
155132098 HOUSING AXLE (REAR)HOUSING AXLE (REAR)
-
167080306 FITTING, LUBE W/BALL CHECKFITTING, LUBE W/BALL CHECK
-
173225026 CONNECTOR LINK, CHAINCONNECTOR LINK, CHAIN
-
185131968 AXLE ASSY., KITAXLE ASSY., KIT
-
195211618-067 GUARD, SPROCKET (42 TEETH)GUARD, SPROCKET (42 TEETH)
-
207547108 NUTNUT
-
215630586 SPACER, SPROCKET GUARDSPACER, SPROCKET GUARD
-
223224056-080 CHAIN, 520 O-RING, 80 PITCHCHAIN, 520 O-RING, 80 PITCH
-
233222070 SPROCKET (42 TEETH)SPROCKET (42 TEETH)
-
247512404 BOLTBOLT
-
251520258 HUB ASSY., SPROCKET LOCKING (INCL. 7)HUB ASSY., SPROCKET LOCKING (INCL. 7)
