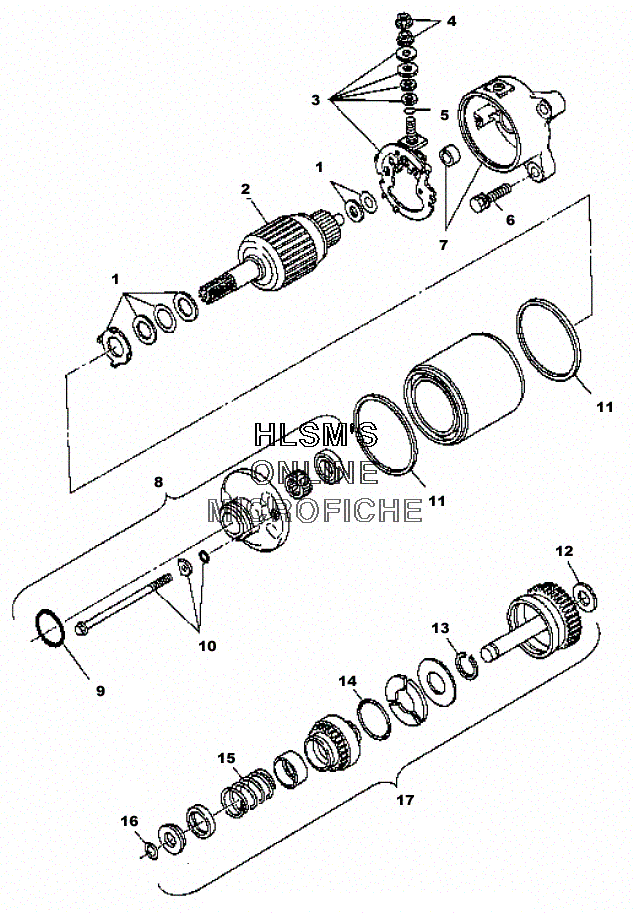

STARTING MOTOR для Polaris MAGNUM 325 2X4 HDS (A02CB32FC) (GUN METAL) - 2002 года выпуска
-
№АртикулНазвание
-
3084981 MOTOR, STARTING (INCL. 1-5,7-11)MOTOR, STARTING (INCL. 1-5,7-11)
-
13084982 WASHER SETWASHER SET
-
23085353 ARMATURE ASM.ARMATURE ASM.
-
33084406 BRUSH,COMPL.2-POLEBRUSH,COMPL.2-POLE
-
43083649 NUT, FLANGENUT, FLANGE
-
53084408 O-RINGO-RING
-
63082038 BOLT AND WASHER ASM.BOLT AND WASHER ASM.
-
73085034 COVER,REAR,STARTER(MAGNUM)COVER,REAR,STARTER(MAGNUM)
-
83085033 COVER,FRT,STARTER(MAGNUM) (INCL. 9)COVER,FRT,STARTER(MAGNUM) (INCL. 9)
-
93240114 O-RINGO-RING
-
103084983 BOLT ASM, SET (INCL. 5)BOLT ASM, SET (INCL. 5)
-
113084405 RING, RUBBERRING, RUBBER
-
123083737 WASHERWASHER
-
133084412 CLIPCLIP
-
143084411 SPRING, WEIGHTSPRING, WEIGHT
-
153084410 SPRING, RETURNSPRING, RETURN
-
163084409 CLIPCLIP
-
173087030 ASM-GEAR SHAFT (INCL. 12-16)ASM-GEAR SHAFT (INCL. 12-16)
