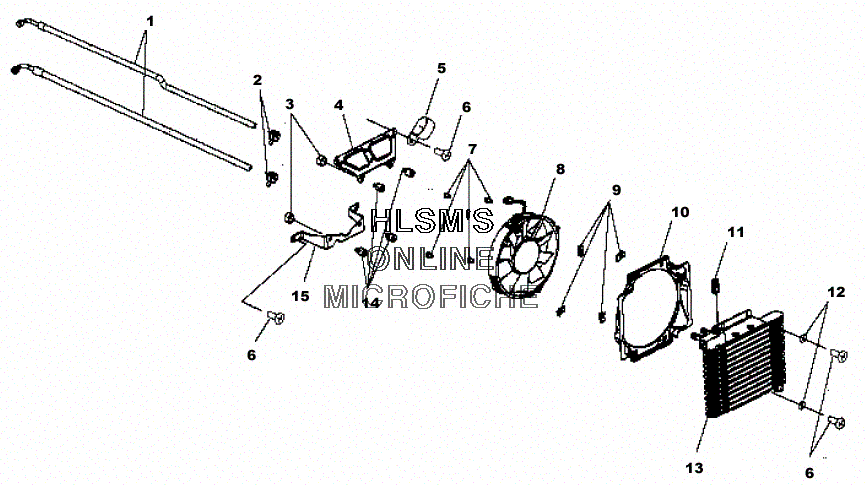

OIL COOLING SYSTEM для Polaris MAGNUM 325 4X4 HDS (A02CD32FB) (GUN METAL) - 2002 года выпуска
-
№АртикулНазвание
-
15412039 HOSE-COOLER 9/16'' 900 SWIVELHOSE-COOLER 9/16'' 900 SWIVEL
-
27080862 CLAMP-HOSE MUBEACLAMP-HOSE MUBEA
-
37542122 NUT-LOCKNUT-LOCK
-
45245416-067 BRKT-OIL COOLER,TOP,BLKBRKT-OIL COOLER,TOP,BLK
-
57080869 CLAMP-P,CUSHIONED,1.25'' I.D. (1CLAMP-P,CUSHIONED,1.25'' I.D. (1
-
67512084 SCREWSCREW
-
77517659 SCREWSCREW
-
82410157 FAN,MOTORFAN,MOTOR
-
97670111 CLIP,U,ZYCLIP,U,ZY
-
105433353 SHROUD-FAN,ATVSHROUD-FAN,ATV
-
114010274 THERMISTERTHERMISTER
-
127558301 WASHERWASHER
-
131240074 COOLER-OILCOOLER-OIL
-
145411548 MOUNT,RUBBERMOUNT,RUBBER
-
151013519 BRKT,ASM,LOWER OIL COOLERBRKT,ASM,LOWER OIL COOLER
