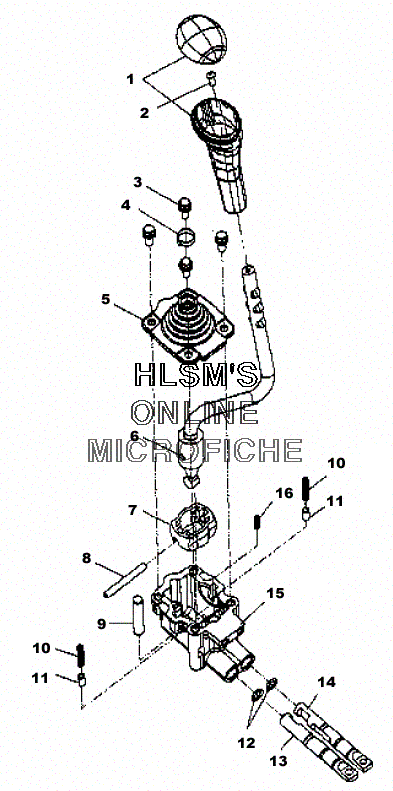

GEAR SELECTOR для Polaris MAGNUM 500 RMK (A02CD50AB) - 2002 года выпуска
-
№АртикулНазвание
-
13233767 SUB ASM-GEAR SELECTOR KNOB,H/LSUB ASM-GEAR SELECTOR KNOB,H/L
-
27512024 SCREW,SCREW,
-
33233649 SCREWSCREW
-
43233131 STRAP, WIRESTRAP, WIRE
-
53233648 COVER-GEAR SELECTOR BOOTCOVER-GEAR SELECTOR BOOT
-
63233766 HANDLE,GEAR-SELECTOR,SUB-ASMHANDLE,GEAR-SELECTOR,SUB-ASM
-
73233646 PLASTIC-SPHEREPLASTIC-SPHERE
-
83233754 PIN-DOWELPIN-DOWEL
-
93233644 PIN-DOWELPIN-DOWEL
-
103233642 SPRING-DETENTSPRING-DETENT
-
113233060 BULLET,DETENTBULLET,DETENT
-
123233076 O-RINGO-RING
-
143233640 SLIDE-HIGH/REVSLIDE-HIGH/REV
-
153233641 GEAR,SELECTOR,BODYGEAR,SELECTOR,BODY
-
163233643 SPRING-CENTERINGSPRING-CENTERING
-
161341337 GEAR SELECTOR,ASM,INT'L (INCL. 1-16)GEAR SELECTOR,ASM,INT'L (INCL. 1-16)
