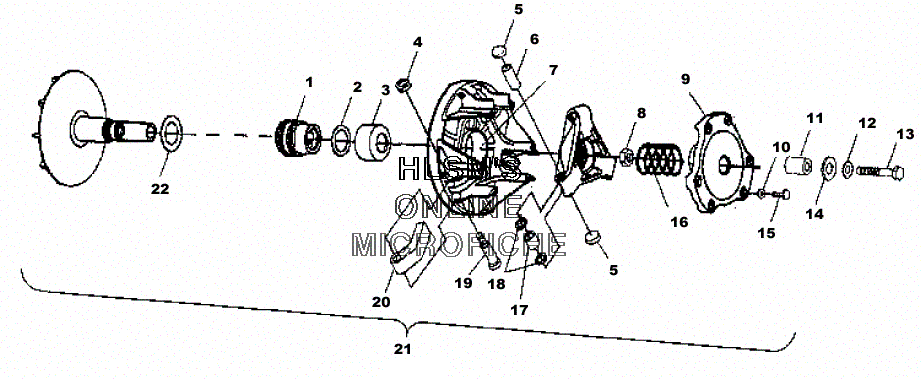

CLUTCH - DRIVE для Polaris MAGNUM VL HDS (A02CD50FB) - 2002 года выпуска
-
№АртикулНазвание
-
11520231 CLUTCH,DRIVE,1-WAY,HLRDCLUTCH,DRIVE,1-WAY,HLRD
-
27556202 WASHER-1.39X1.99X.030,BRASSWASHER-1.39X1.99X.030,BRASS
-
35631119 SPACER-1.25X2.25,PMSPACER-1.25X2.25,PM
-
47541906 NUT FLEX LOCNUT FLEX LOC
-
55431936 BUTTON,CLUTCHBUTTON,CLUTCH
-
65020422 PIN-ROLLER,PIN-ROLLER,
-
73585712 BEARINGBEARING
-
87547130 LIMITING NUT,KIT,EBSLIMITING NUT,KIT,EBS
-
93576510 BEARING, COVER,BEARING, COVER,
-
107552801 LOCK WASHERLOCK WASHER
-
115430261 BUSHING - RETAINING BOLTBUSHING - RETAINING BOLT
-
127575202 WASHER LOCKWASHER LOCK
-
137512566 BOLTBOLT
-
145210748 WASHERWASHER
-
157512176 SCREWSCREW
-
167041157 SPRING,CLUTCHSPRING,CLUTCH
-
171321457 ROLLER/BUSHING ASM.(6)ROLLER/BUSHING ASM.(6)
-
185430945 WASHER,WASHER,
-
197512266 BOLT,SPECIALBOLT,SPECIAL
-
205630513 WT,SHIFT, 10MH(6)WT,SHIFT, 10MH(6)
-
211321706 CLUTCH,DRIVE,BRAKING (INCL. ALL LESS 16,20)CLUTCH,DRIVE,BRAKING (INCL. ALL LESS 16,20)
-
227556204 WASHER-1.39X2.24X.030,PTFEWASHER-1.39X2.24X.030,PTFE
Все узлы модели:
- AIR BOX ASSY.
- BRAKE - FRONT
- BRAKE - MASTER CYLINDER W/ BRAKE LINE
- BRAKE - REAR
- CAMSHAFT W/ VALVE ASSY.
- CARBURETOR
- • CLUTCH - DRIVE
- CLUTCH - DRIVEN
- CLUTCH COVER
- COOLING SYSTEM
- CRANKCASE
- CRANKSHAFT W/ PISTON
- CYLINDER
- DECALS
- DIFFERENTIAL - REAR
- DRIVESHAFT - FRONT
- ELECTRICAL W/ TAILLIGHT ASSY.
- EXHAUST SYSTEM
- FENDER - FRONT W/ SIDE PANELS
- FENDER - REAR W/ SEAT - FRAME
- FUEL PUMP
- FUEL TANK AND CARBURETOR MOUNTING
- GEAR SELECTOR
- GEARCASE
- GEARCASE SELECTOR MOUNTING
- HANDLEBAR - THROTTLE ASSY. W/ CABLE
- HANDLEBAR W/ HEADLIGHT
- MAGNETO
- MOUNTING - ENGINE
- MOUNTING - TRANSMISSION
- OIL FILTER
- OIL PUMP
- OIL TANK (IF BUILT AFTER 1/02/02)
- OIL TANK (IF BUILT BEFORE 1/02/02)
- RACK AND BUMPER MOUNTING - FRONT
- RACK AND BUMPER MOUNTING - REAR
- SHOCK ABSORBER
- STARTER - RECOIL
- STARTING MOTOR
- STEERING POST
- SUSPENSION - FRONT A - ARM W/ TIE RODS
- SUSPENSION - FRONT STRUT
- SUSPENSION - REAR SWING ARM W/ AXLE - SHAFT
- TOOL KIT
- WATER PUMP
- WHEEL - FRONT
- WHEEL - REAR
