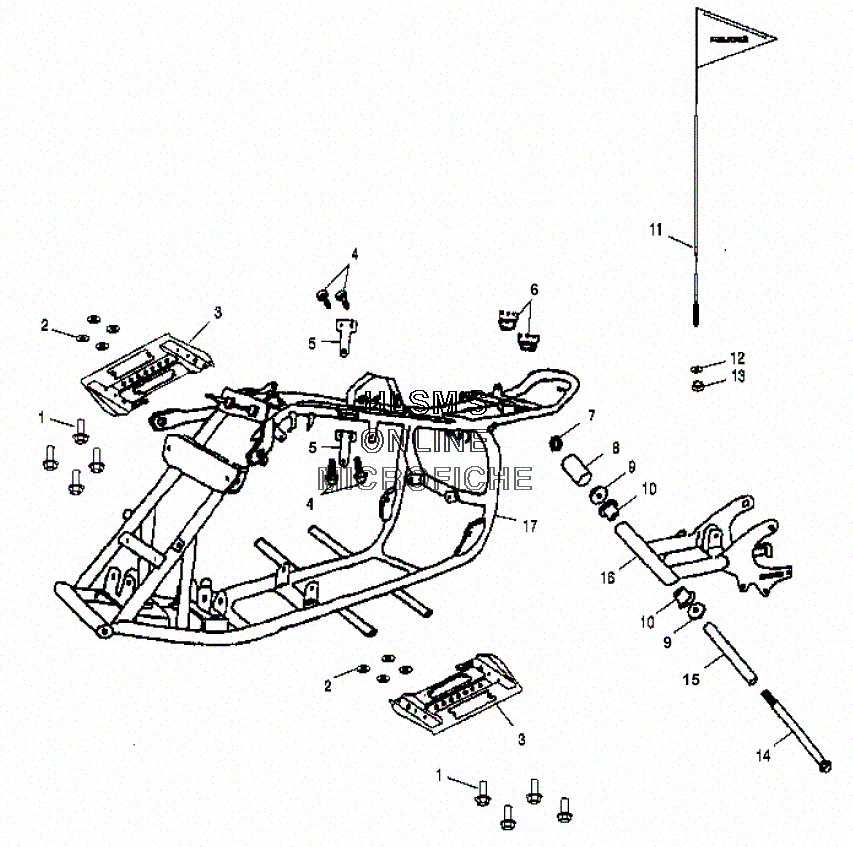

FRAME W/ SWING ARM для Polaris SCRAMBLER 50 (A02EA05CA) - 2002 года выпуска
-
№АртикулНазвание
-
10450325 BOLT-HEXAGONBOLT-HEXAGON
-
20450613 GROMMET,FOOTRESTGROMMET,FOOTREST
-
30450591 FOOTWELL,BOTTOM BOARD,SCRAMBLERFOOTWELL,BOTTOM BOARD,SCRAMBLER
-
40450887 BOLT-HEXAGON WF 96000-08014-KBOLT-HEXAGON WF 96000-08014-K
-
50450299 PLATE,ENGINE BRACKET 50351-151-PLATE,ENGINE BRACKET 50351-151-
-
60450290 RUBBER,SEAT 77220-131-000RUBBER,SEAT 77220-131-000
-
70450878 NUT-LOCK,NYLON 90350-14000-UCNUT-LOCK,NYLON 90350-14000-UC
-
80450304 SLEEVE,RUBBER 52423-131-000SLEEVE,RUBBER 52423-131-000
-
90450303 COVER,SWING ARM SEAL 52422-131-COVER,SWING ARM SEAL 52422-131-
-
100450302 SEAT,GREASE CONTAIN 52421-131-0SEAT,GREASE CONTAIN 52421-131-0
-
110450993 FLAG, VISUALFLAG, VISUAL
-
120450844 WASHER-SPRING 94111-10000-KWASHER-SPRING 94111-10000-K
-
130450845 NUT-HEXAGON 94002-101704-KNUT-HEXAGON 94002-101704-K
-
140450305 BOLT-HEXAGON 96000-14290BOLT-HEXAGON 96000-14290
-
150450301 TUBE,SPACER 52420-131-000TUBE,SPACER 52420-131-000
-
160450926 SWING ARM,SUBASSY 52410-131-001SWING ARM,SUBASSY 52410-131-001
-
170450589 FRAME,COMP,SCRAMBLERFRAME,COMP,SCRAMBLER
